Ken-A-Vision ESH101 Professor with Cordless Monocular Compound Microscope, 10× Eyepiece

Be the first to review this item

ASIN B005KC3Q0Y

Specifications for this item
Number of Items
1
Overall Height
11.75  inches
Overall Width
4.75  inches
Part Number
ESH101
UPC
012345678912
Brand Name
Ken-A-Vision
Size Name
10x Eyepiece
EAN
0012345678912
UNSPSC Code
41111709
Overall Length
6  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 22 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compound microscope provides high magnification for biological use and educational applications
  • Monocular viewing head with fixed 45-degree vertical inclination, and 360-degree rotation capability
  • 10x eyepiece with 3-position stop and 4x, 10x, and 40xS lens objectives
  • Built-in upper and lower, bright and cool LED white light
  • Cordless microscope requires three-AA batteries (included)

Package Details

Shipping Weight: 2.95 pounds
Package Size: 13.7 x 8.6 x 6.2 inches

Product Description

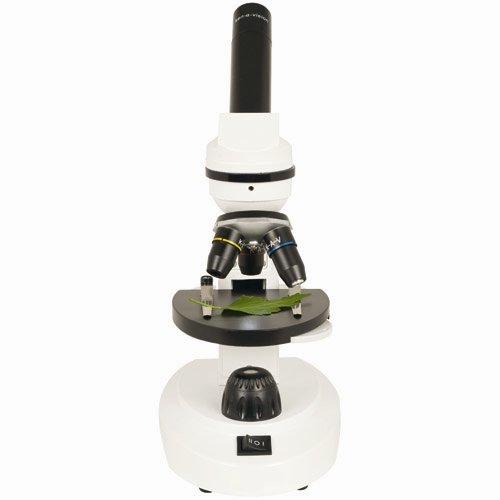

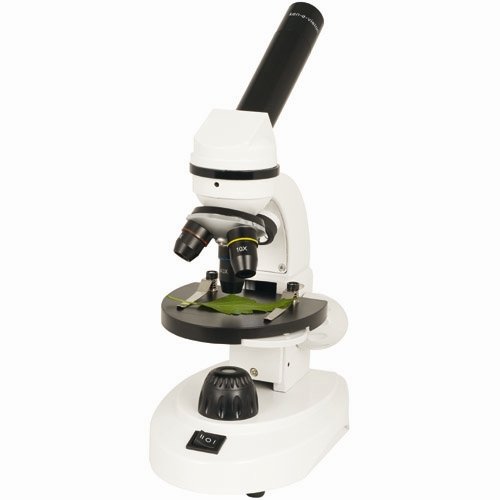

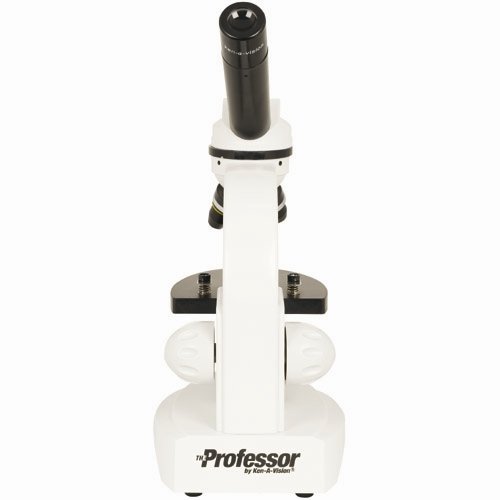

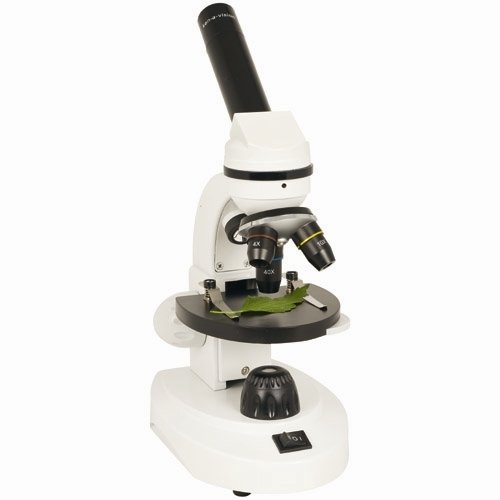

The Ken-A-Vision ESH101 Professor cordless, monocular compound microscope has upper and lower LED lighting, a 10x widefield eyepiece with 4x, 10x, and 40xS objective lenses, and is designed for biological use and educational applications. The monocular head has a fixed 45-degree incline and 360 degree rotation for comfortable viewing and a total magnification up to 400x. One knob for coarse and fine focus eases focusing for young users. The square stage has clips to hold the slide in place and rack-and-pinion movement. Built-in upper and lower, bright and cool white LED lighting with on/off switch provides a range of lighting options. The cordless microscope requires three AA batteries (included) and includes a cover, slides with a storage box, and instructions.

Specifications
Eyepiece 10X widefield
Objective lenses 4x, 10x, 40xS
Viewing configuration Monocular, with 45 degree viewing angle
Nosepiece 3-hole with 3-position stop and 360 degree rotation
Focus One knob for fine and coarse focus
Illumination LED cool lighting
Stage Square with clips
Gearing Rack and pinion
*Overall dimensions 30 x 12 x 15.2 cm/11.75 x 4.75 x 6 inches (H x W x D)
Weight .57kg/1.3lb.
Illumination power source 3-AA batteries
Certificates ISO:9001-2000, CE, CSA, RoHS

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Ken-A-Vision Manufacturing, founded in 1957 and headquartered in Kansas City, MO, manufactures educational products such as microscopes, cameras, and software.

What’s in the Box?
  • Ken-A-Vision ESH101 Professor microscope
  • Microscope cover
  • Slides (10)
  • Slide storage box
  • AA batteries (3)
  • Instructions
