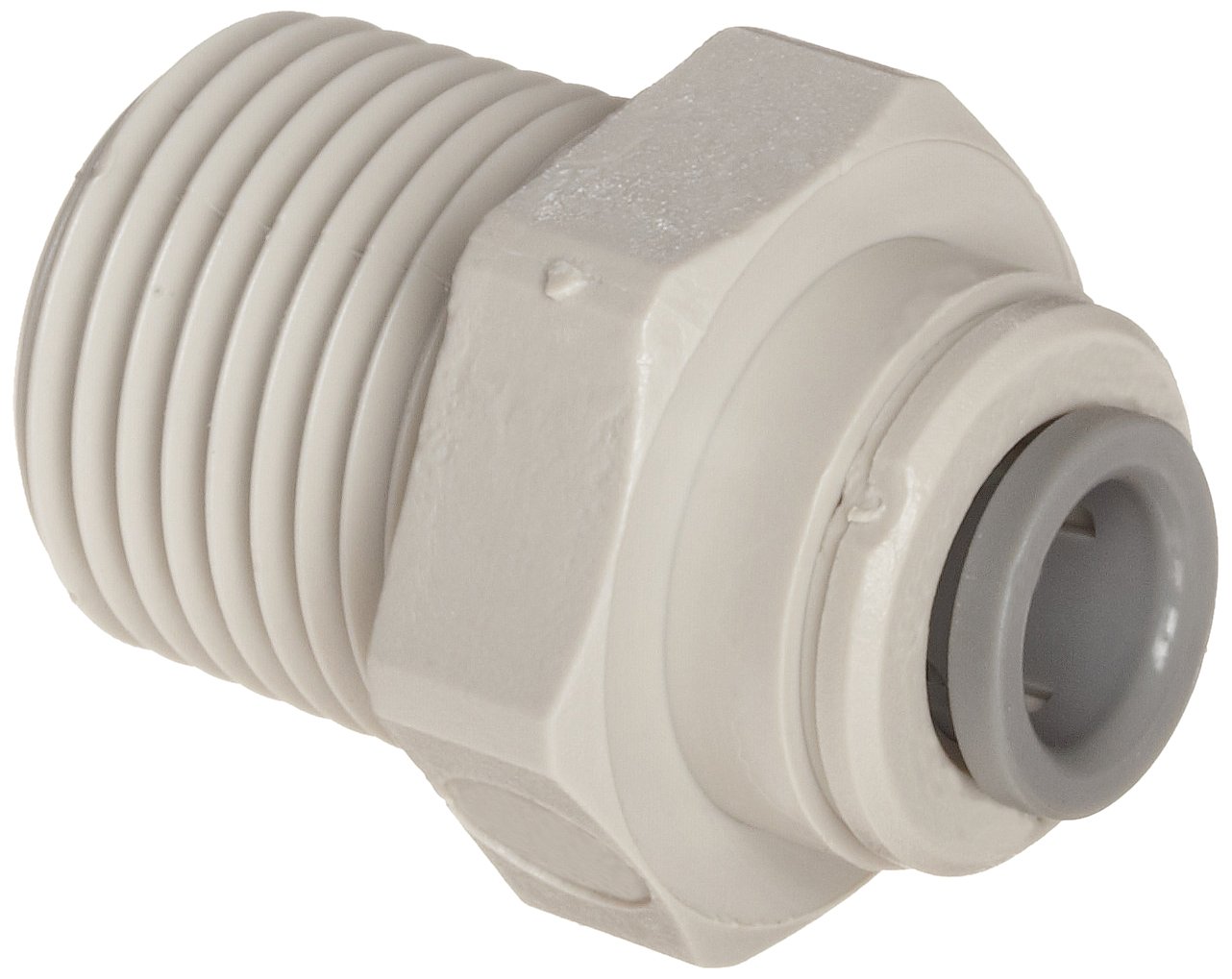

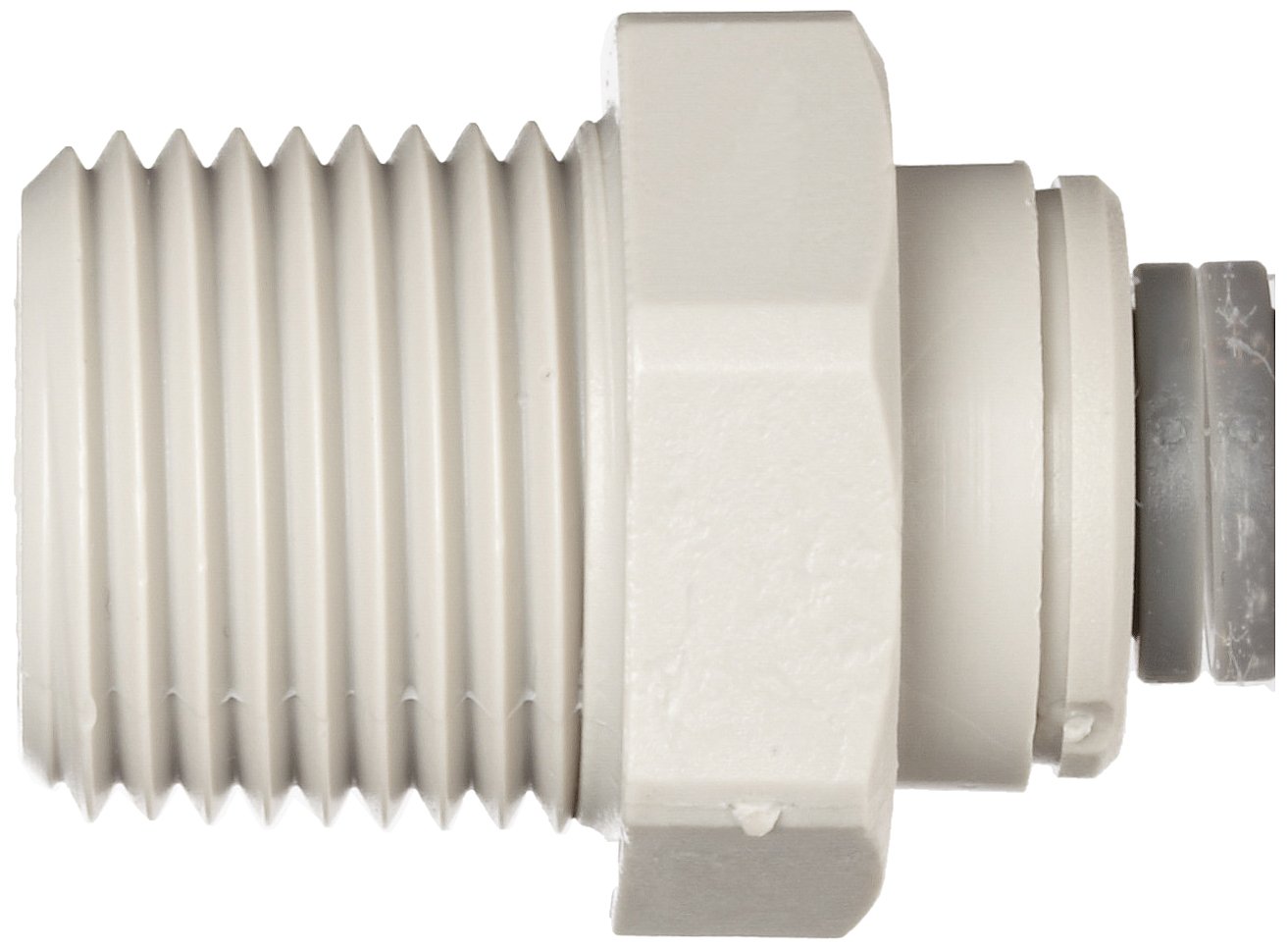

John Guest Acetal Copolymer Push-To-Connect Tube Fitting, Straight Adaptor, Tube OD x NPTF Male (Pack of 10)

Be the first to review this item

Product Specifications
Item Shape
Adapter
Specification Met
NSF
Material Type
Acetal
Style Name
Push-to-Connect
UNSPSC Code
40183100
Brand Name
John Guest

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-15 of 15
5/32" Tube OD x 1/8" NPTF Male 10 B003NUXMCM yes $11.96 Buy Options
5/32" Tube OD x 1/4" NPTF Male 10 B003NUU0BI yes $15.50 Buy Options
3/16" Tube OD x 1/8" NPTF Male 10 B003NV3WWQ yes $14.10 Buy Options
1/4" Tube OD x 1/8" NPTF Male 10 B005XTZCJW yes $14.13 Buy Options
1/4" Tube OD x 1/4" NPTF Male 10 B005XTZDN2 yes $15.00 Buy Options
1/4" Tube OD x 3/8" NPTF Male 10 B005XTZEI6 yes $22.50 Buy Options
5/16" Tube OD x 1/8" NPTF Male 10 B003NV1T94 yes $16.60 Buy Options
5/16" Tube OD x 1/4" NPTF Male 10 B003NV3X6G yes $17.30 Buy Options
5/16" Tube OD x 3/8" NPTF Male 10 B005XTQB88 yes $25.00 Buy Options
3/8" Tube OD x 1/8" NPTF Male 10 B005XTZH6K Usually ships in 1 to 2 months $32.60 Buy Options
3/8" Tube OD x 1/4" NPTF Male 10 B005XTZI64 yes $22.52 Buy Options
3/8" Tube OD x 3/8" NPTF Male 10 B005XTZIUA yes $28.20 Buy Options
3/8" Tube OD x 1/2" NPTF Male 10 B005XTZJE0 yes $43.80 Buy Options
1/2" Tube OD x 3/8" NPTF Male 10 B005XTZOEA yes $35.07 Buy Options
1/2" Tube OD x 1/2" NPTF Male 10 B005XTZP44 yes $39.71 Buy Options

Key Features

  • Straight adapter connects pipes or fittings of different types in a straight line
  • Push-to-connect fitting connects to pipes or tubing on one end and has an NPTF male connector on the other
  • Made of acetal copolymer plastic for low moisture absorption and high tensile and flexural strength
  • Working pressure of up to 150 psi
  • Meets NSF/ANSI standards 14, 51, and 61 for quality assurance

Product Description

This John Guest straight adapter fitting is made of acetal copolymer and has tube and NPTF male connectors. This straight adapter fitting is for connecting pipes or fittings with different end types, diameters, or materials in a straight line. It is a push-to-connect fitting that connects to pipes or tubing on one end and has a National Pipe Taper Fuel (NPTF) male connector on the other. The fitting is made of acetal copolymer plastic, which has low moisture absorption, high tensile and flexural strength, and is hard and fatigue resistant. The working pressure for this fitting is up to 150 pounds per square inch (psi). This fitting meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) standards 14, 51, and 61 for plastic piping systems, food equipment materials, and use with drinking (potable) water.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

John Guest manufactures push-to-connect fittings and pipe and plastic plumbing systems. The company, founded in 1961, is headquartered in Great Britain and meets International Organization for Standardization (ISO) standard 9001.
