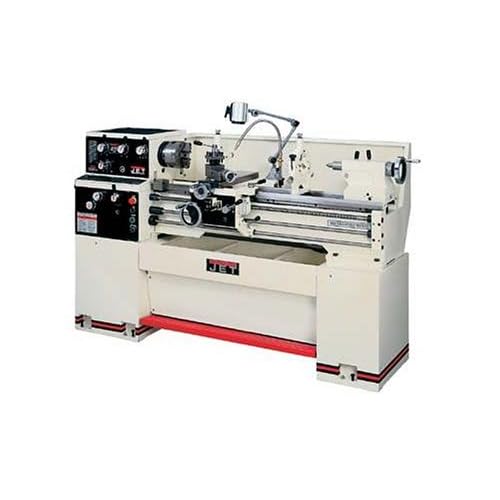

Jet 321840 GH-1440W-3 14-Inch Swing by 40-Inch between Centers 230/460-Volt 3 Phase Geared Head Engine Metalworking Lathe

Be the first to review this item

ASIN B0007M6G9U

Specifications for this item
Catalog Number
B0007M6G9U
Item Weight
1 pounds
UPC
662755216244
Brand Name
Jet
EAN
0662755216244
Warranty
Limited 2 Year (Mechanical), Limited 1 Year (Electrical)
Price:
$8,999.00
Quantity:

In Stock (6) Usually ships in 24 hours.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 3HP, 3Ph, 230/460V motor (Prewired 230V) for optimal turning power
  • 1-1/2-inch spindle hole; 14-inch swing by 40-inch centers
  • 12 spindle speeds ranging from 40-1800 RPM
  • Hardened and ground gears are featured in the headstock and gearbox
  • Dl-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings

Package Details

Shipping Weight: 2344 pounds
Package Size: 77.25 x 55.5 x 29.75 inches

Product Description

From the Manufacturer

Smooth and quiet, JET’s 1440W-3 geared-head engine lathe is designed with hardened and ground gears in the headstock and gearbox for optimal control and longer machine life. The headstock is constantly oiled during operation and includes splined, not keyed shafts. The gearbox enables large threading and feeding without changing gears. The D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings. The spindle actuation control features inch-metric dials and is apron mounted. An induction-hardened and ground V-way bed offers better command over shaping projects. And, a gap bed section is included for larger diameter pieces. The compound and cross slide have backlash elimination and adjustable jib are incorporated in the carriage and slideways. The tailstock may be offset for turning tapers and includes an inch-metric graduated quill. Your purchase includes: a heavy-duty stand, 6-inch, 3-Jaw Direct Mount chuck with top reversing jaws, 8-inch, 4-Jaw chuck, 12-inch face plate, foot brake, coolant system w/splash guard, center and headstock center sleeve, work lamp, spindle jog button, tool box and tools.

FEATURES

  • Uniquely designed exclusively by JET
  • Hardened and ground gears are featured in the headstock and gearbox
  • Dl-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized in the headstock
  • Gearbox gives large threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable glbs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Tolerance test certificate included

What's in the Box

  • Heavy-Duty Stand
  • 6" 3-Jaw Direct Mount Chuck with Top Reversing Jaws
  • 8" 4-Jaw Chuck
  • 12" Face Plate
  • Four-way Tool Post
  • Steady and Follow Rest
  • Micro-Carriage Bed Stop
  • Front Removable Chip Tray
  • Spindle Jog Button
  • Foot Brake
  • Coolant System with Splash Guard
  • Metric Change Gears
  • Halogen Work Lamp
  • Centers and Headstock Center Sleeve
  • Threading Dial
  • Tool Box and tools

SPECIFICATIONS

  • Model Number GH-1340W-3
  • Swing Over Bed (in.) 13
  • Swing Over Cross Slide (in.) 7-1/2
  • Swing Through Gap (in.) 19
  • Distance Between Centers (in.) 40
  • Spindle Bore (in.) 1-1/2
  • Spindle Mount DW
  • Spindle Taper (With Sleeve) MT-5 (MT-3)
  • Number of Spindle Speeds 12
  • Range of Spindle Speeds (RPM) 40 - 1,800
  • Number of Longitudinal and Cross Feeds 40
  • Range of Longitudinal Feeds (in./rev.) 0.0012 - 0.0294
  • Range of Crossfeeds (in./rev.) 0.0003 - 0.0103
  • Number of Inch Threads 40
  • Range of Inch Threads 4 - 112TPI
  • Number of Metric Threads 22
  • Range of Metric Threads (mm) 0.45 - 7.5
  • Maximum Tool Size (in.) 5/8x5/85
  • Maximum Compound Slide Travel (in.) 3-1/2
  • Maximum Cross Slide Travel (in.) 6-3/8
  • Maximum Carriage Travel (in.) 37-1/2
  • Tailstock Spindle Travel (in.) 4-3/4
  • Taper in Tailstock Spindle MT-3
  • Steady Rest Capacity (in.) 3-3/4
  • Follow Rest Capacity (in.) 2-3/4
  • Width of Bed (in.) 10-1/2
  • Motor 3HP, 3Ph, 230 /460V Prewired 230V
  • Overall Dimensions (in./L x W x H) 73-3/4x29-1/2x47-1/2
  • Net Weight (lbs.) 2081
