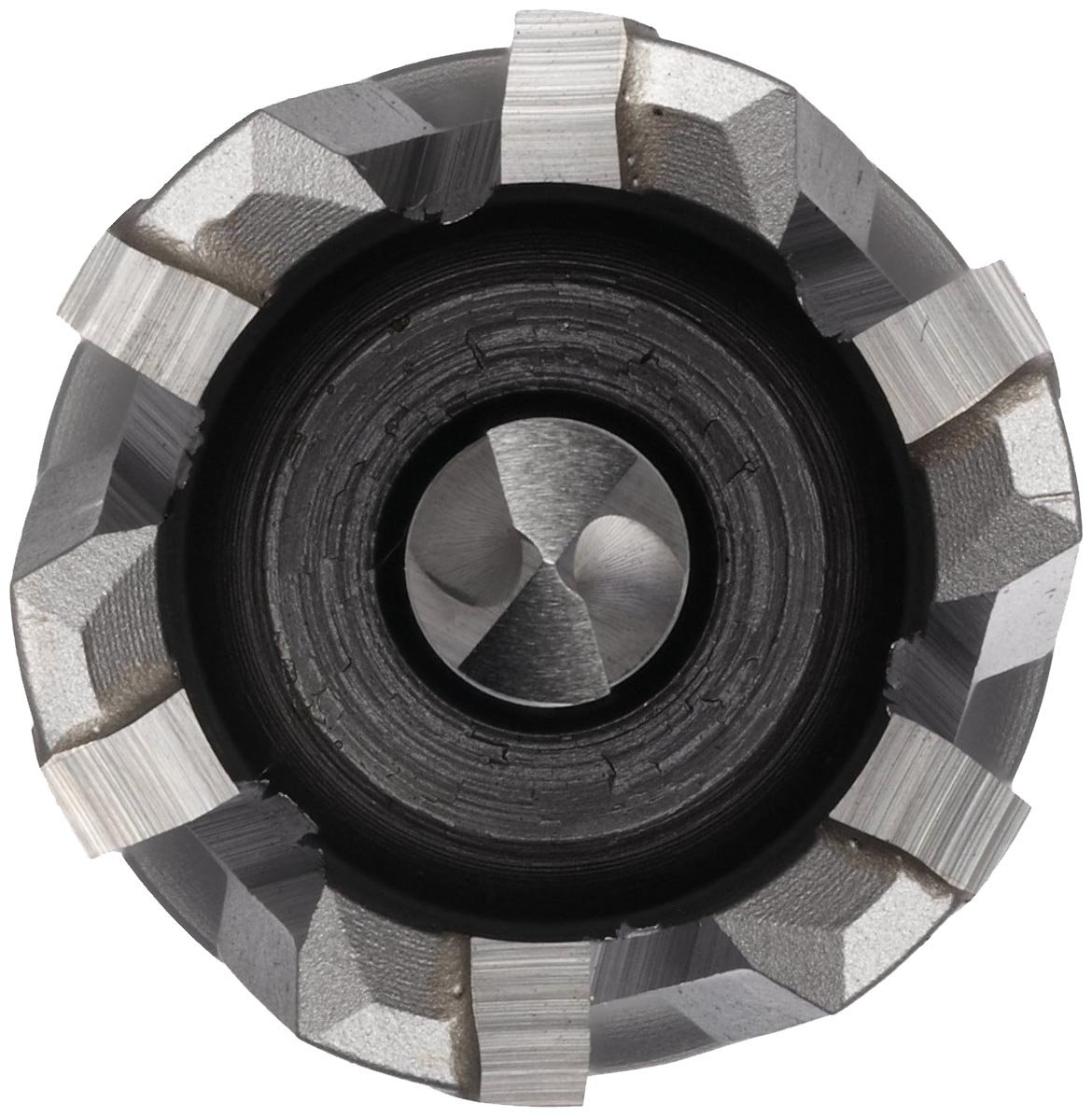

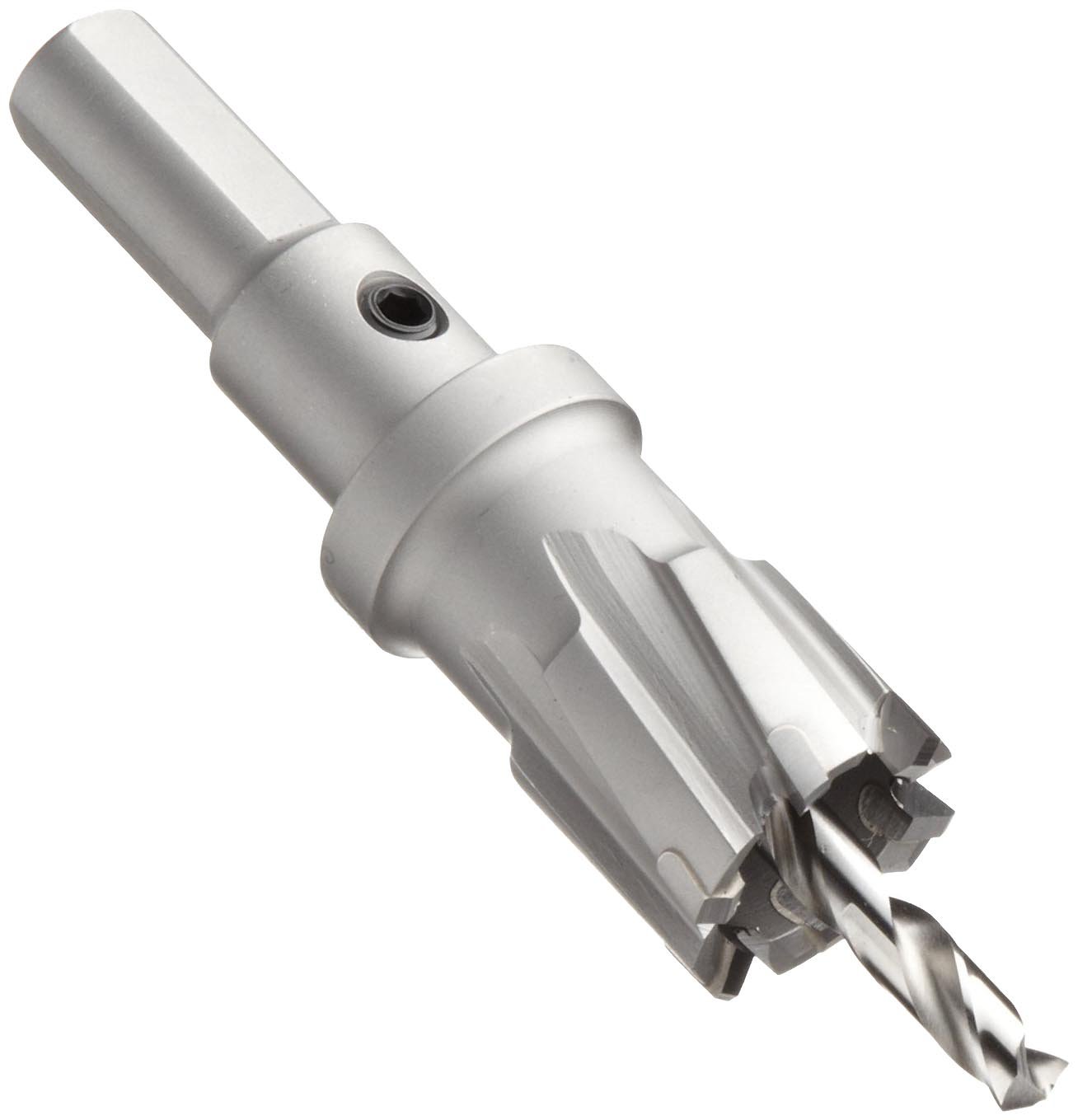

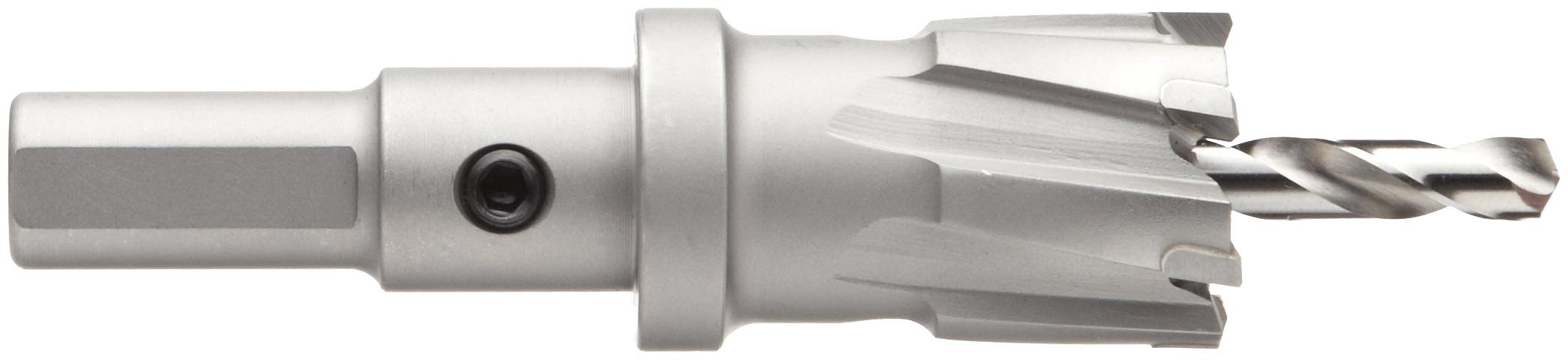

Jancy Slugger Carbide-Tipped Annular Cutter, Uncoated (Bright) Finish, 1/2" Shank with Flats, , 3/16" Depth

Be the first to review this item

Product Specifications
Finish Types
Uncoated (Bright)
Shank Type
round with flats
Tolerance Held
0.0005 inches
Material Type
Carbide Tipped
Part Number
SCXXXHX-PARENT
Shank Width
0.5  inches
UNSPSC Code
23151901
Brand Name
Jancy Engineering Company
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 16 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Cutting diameter Cutting length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-14 of 14
0.6250 inches 0.1875 inches B003EYVEDQ 3 $21.00 Buy Options
0.6875 inches 0.1875 inches B003EYVEE0 3 $21.00 Buy Options
0.7500 inches 0.1875 inches B003EYVEEK Usually ships in 3 to 6 weeks $21.00 Buy Options
0.8125 inches 0.1875 inches B003EYVEF4 3 $20.84 Buy Options
0.8750 inches 0.1875 inches B003EYVEFO 1 $21.00 Buy Options
1.125 inches 0.1875 inches B003EYVEHM 3 $25.00 Buy Options
1.218 inches 0.1875 inches B003EYVEI6 1 $25.00 Buy Options
1.250 inches 0.1875 inches B003EYVEIG 1 $27.23 Buy Options
1.312 inches 0.1875 inches B003EYVEJ0 2 $28.00 Buy Options
1.500 inches 0.1875 inches B003EYVEK4 2 $30.00 Buy Options
1.750 inches 0.1875 inches B003EYVEKE 2 $36.14 Buy Options
2.000 inches 0.1875 inches B003EYVEKY 2 $46.80 Buy Options
2.375 inches 0.1875 inches B003EYVEMM 1 $58.04 Buy Options
3.000 inches 0.1875 inches B003EYVENG 1 $72.59 Buy Options

Key Features

  • Center-free design creates through holes by cutting only the periphery of the hole for greater productivity in comparison to twist drills
  • Multiple cutting edges create a high-quality hole that minimizes the need for secondary operations such as pre-drilling and reaming
  • Carbide-tipped cutting edges can be run at higher speeds than high-speed or cobalt steel, offering increased wear resistance and suitability for high cutting temperatures
  • High-speed steel is compatible with a variety of materials
  • 1/2" round shank with flats is suitable for use in hand drills, drill presses, mills, or lathes

Product Description

The Jancy Slugger uncoated, carbide-tipped high-speed steel annular cutter with 3/16” depth and a 1/2” round shank with flats is used to create through holes as deep as 3/16” in a range of materials, with best performance in hard-to-machine materials as well as mild steel and stainless steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. This tool has a built-in twist drill bit that helps to anchor the cutter and assists with ejection of the slug when it is released. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.

High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. Carbide edges add cutting strength to the tool body; carbide is harder than high-speed or cobalt steel, making it more wear-resistant at high speeds and providing longer tool life.

This tool’s 1/2” round shank with flats is suitable for use in a hand drill as well as in a drill press, mill, or lathe. In this Jancy tool series, annular cutters can create holes of various diameters with a depth of cut as great as 3/16”.

Annular cutters are hollow drill bits that cut only the periphery of a hole, reducing the torque and horsepower requirements for drilling in many applications. Because they remove less material than standard twist drill bits, they have faster cutting speeds and use less energy in comparison with twist drills and are more efficient than metal hole saws. The multiple cutting edges on annular cutters produce accurate, burr-free holes without the need for pilot holes, minimizing the need for secondary operations such as pre-drilling, step drilling, or reaming.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for the fabrication trade. The company, founded in 1957 and headquartered in Davenport, IA, provides tools that meet ANSI standards to steel fabricators and erectors, machinists and maintenance personnel, and truck body and ship builders, among others.
