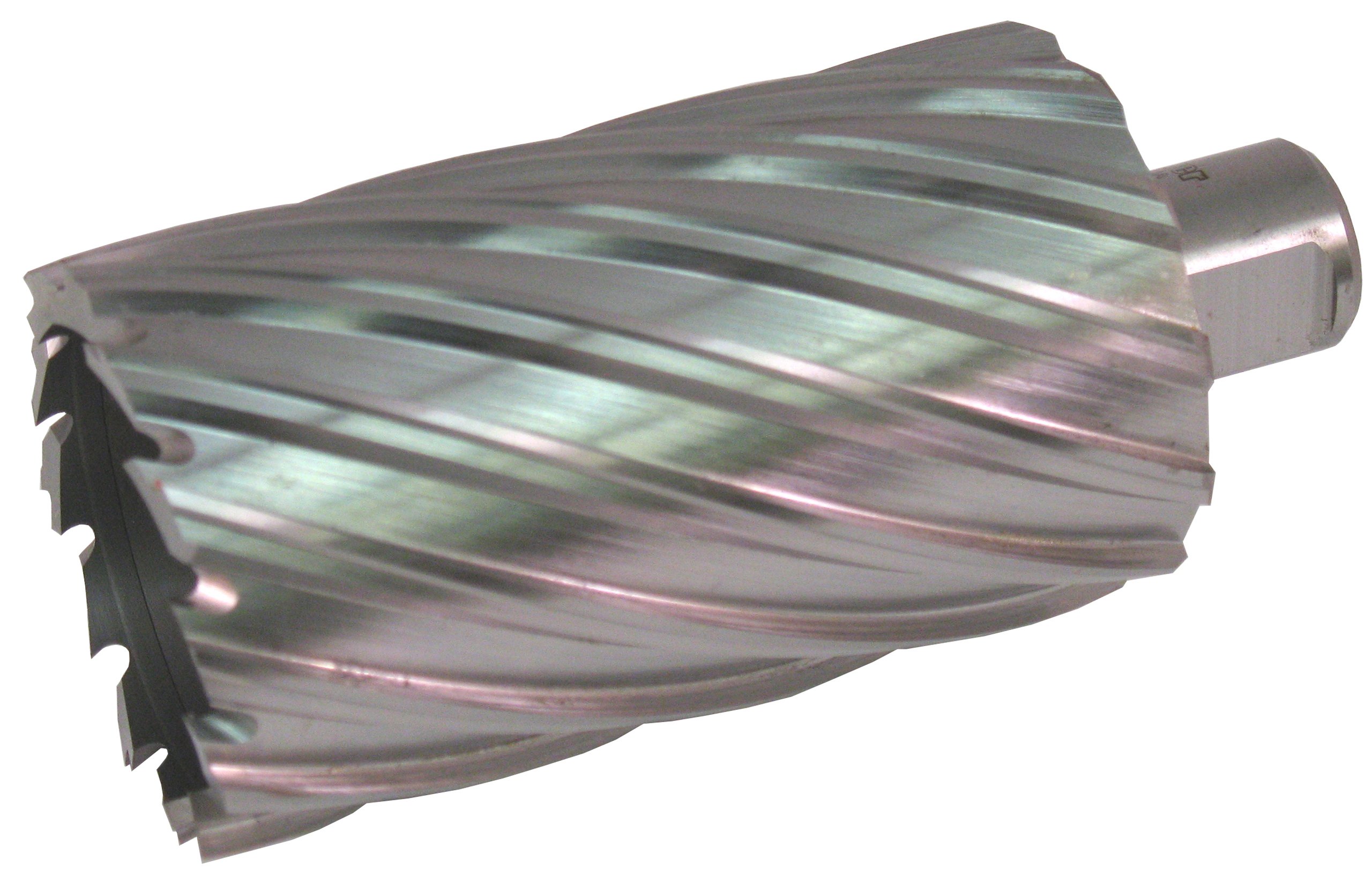

Jancy Slugger High Speed Steel Annular Cutter, Uncoated (Bright) Finish, 3/4" Annular Shank, 3" Depth

Be the first to review this item

Product Specifications
Cutting Length
3.000  inches
Finish Types
Uncoated (Bright)
Shank Type
Weldon
Material Type
High-Speed Steel
UNSPSC Code
23151901
Brand Name
Jancy Engineering Company
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 7 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Cutting diameter Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 22 Next 2 »
0.7500 inches 7500S B003CN6EE8 yes $66.69 Buy Options
0.8125 inches 8125S B003CN6EEI yes $76.61 Buy Options
0.8750 inches 8750S B003CN6EES Usually ships in 1 to 2 months $72.28 Buy Options
0.9375 inches 9375S B003CN6EF2 yes $78.73 Buy Options
1.000 inches 1000S B003CN6EFC yes $110.94 Buy Options
1.062 inches 1062S B003CN6EFM yes $87.74 Buy Options
1.125 inches 1125S B003CN6EFW yes $101.47 Buy Options
1.187 inches 1187S B003CN6EG6 yes $105.09 Buy Options
1.250 inches 1250S B003CN6EGG yes $108.98 Buy Options
1.312 inches 1312S B003CN6EGQ yes $39.13 Buy Options
1.375 inches 1375S B003CN6EH0 yes $104.22 Buy Options
1.437 inches 1437S B003CN6EHK yes $115.55 Buy Options
1.500 inches 1500S B003CN6EHU yes $174.86 Buy Options
1.562 inches 1562S B003CN6EI4 yes $135.62 Buy Options
1.625 inches 1625S B003CN6EIE yes $159.28 Buy Options
1.687 inches 1687S B003CN6EIO yes $151.22 Buy Options
1.750 inches 1750S B003CN6EIY yes $175.32 Buy Options
1.812 inches 1812S B003CN6EJ8 yes $167.51 Buy Options
1.875 inches 1875S B003CN6EJI yes $205.54 Buy Options
1.937 inches 1937S B003CN6EJS yes $188.06 Buy Options

Key Features

  • Center-free design creates through holes by cutting only the periphery of the hole for greater productivity in comparison to twist drills
  • Multiple cutting edges create a high-quality hole that minimizes the need for secondary operations such as pre-drilling and reaming
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, suitable for general-purpose applications
  • 3/4" annular cutter shank can be used in a drill press, mill, or lathe

Product Description

The Jancy Slugger uncoated, high-speed steel annular cutter with 3” depth and a 3/4” annular cutter shank is used to create through holes as deep as 3” in a range of materials, with best performance in mild steel and structural steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.

High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools.

This tool’s annular cutter shank has two Weldon flats ground into a portion of the sides to provide a secure hold to help prevent slippage in drill presses, mills, or lathes. In this Jancy tool series, annular cutters can create holes of various diameters with a depth of cut as great as 3”.

Annular cutters are hollow drill bits that cut only the periphery of a hole, reducing the torque and horsepower requirements for drilling in many applications. Because they remove less material than standard twist drill bits, they have faster cutting speeds and use less energy in comparison with twist drills and are more efficient than metal hole saws. The multiple cutting edges on annular cutters produce accurate, burr-free holes without the need for pilot holes, minimizing the need for secondary operations such as pre-drilling, step drilling, or reaming.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for the fabrication trade. The company, founded in 1957 and headquartered in Davenport, IA, provides tools that meet ANSI standards to steel fabricators and erectors, machinists and maintenance personnel, and truck body and ship builders, among others.
