Jancy Slugger High Speed Steel Annular Cutter Set (10 piece), Uncoated (Bright) Finish, 1/2" Annular Shank, 5/8" Depth, 1/2" - 1-1/16" Sizes

Be the first to review this item

ASIN B003ES4R1S

Specifications for this item
Number of Items
1
Finish Types
Uncoated (Bright)
Tolerance Held
0.0005 inches
Material Type
high_speed_steel
Shank Height
0.4000  inches
Part Number
SJS000
Size Name
1/2" - 1-1/16"
Brand Name
Jancy Engineering Company
Arbor Hole Diameter
1/2  inches
Cutting Length
0.7500  inches
Shank Type
Weldon
UNSPSC Code
23151901
Cutting Diameter
0.5000 inches, 0.5625 inches, 0.6250 inches, 0.6875 inches, 0.7500 inches, 0.8125 inches, 0.8750 inches, 0.9375 inches, 1.000 inches, 1.062  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 12 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High-speed steel (HSS) offers toughness and shock resistance, and is compatible with a variety of materials
  • Uncoated (bright) with no additional surface treatment or coating
  • 5/8" cutter depth for cutting materials up to 5/8" thick
  • 1/2" shank size accommodates a 1/2" arbor
  • Edges can be resharpened

Package Details

Shipping Weight: 1.75 pounds
Package Size: 9.7 x 7 x 3.1 inches

Product Description

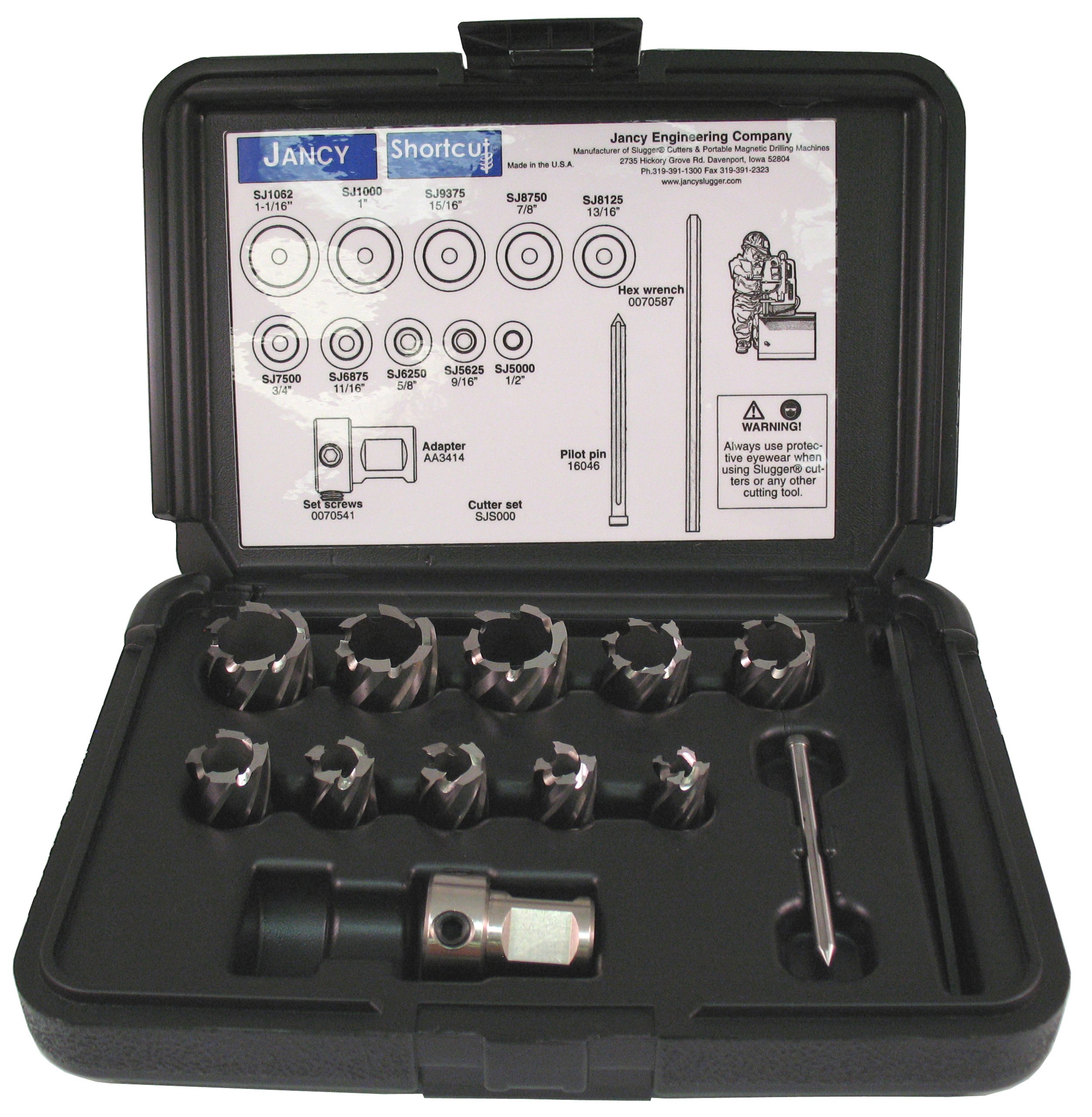

The Jancy Slugger uncoated, high-speed steel (HSS) annular cutter set includes 10 annular cutters with 5/8" depth and a 1/2" shank, with one each of the following cutter diameters: 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1" and 1-1/16". The cutters create through holes as deep as 5/8" in a range of materials, with best performance in mild steel and structural steel. The set also includes a pilot pin, arbor assembly, hex key, set screw, and a case.

High-speed steel (HSS) is a general-purpose steel that offers toughness and shock resistance, and is compatible with a variety of materials. The cutters have no coating or surface treatment, and the cutting edges can be resharpened for a longer tool life. Each cutter has a 1/2" shank to connect to magnetic drills and drill presses with an arbor assembly (sold separately).

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Annular cutters are hollow drill bits that cut only around the periphery of a hole. They reduce the torque and horsepower requirements for drilling in many applications because they remove less material than standard twist drill bits. As a result they have faster cutting speeds and use less energy in comparison with twist drills; they can also be more efficient than metal hole saws. Because of their multiple cutting edges, annular cutters can produce accurate, burr-free holes without the need for pilot holes , minimizing the need for secondary operations such as pre-drilling, step drilling, or reaming.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for fabrication. The company, founded in 1957, is headquartered in Davenport, IA.

What's in the Box?
  • 1/2" diameter annular cutter
  • 9/16" diameter annular cutter
  • 5/8" diameter annular cutter
  • 11/16" diameter annular cutter
  • 3/4" diameter annular cutter
  • 13/16" diameter annular cutter
  • 7/8" diameter annular cutter
  • 15/16" diameter annular cutter
  • 1" diameter annular cutter
  • 1-1/16" diameter annular cutter
  • Pilot pin
  • Arbor assembly
  • Hex key
  • Set screw
  • Case
