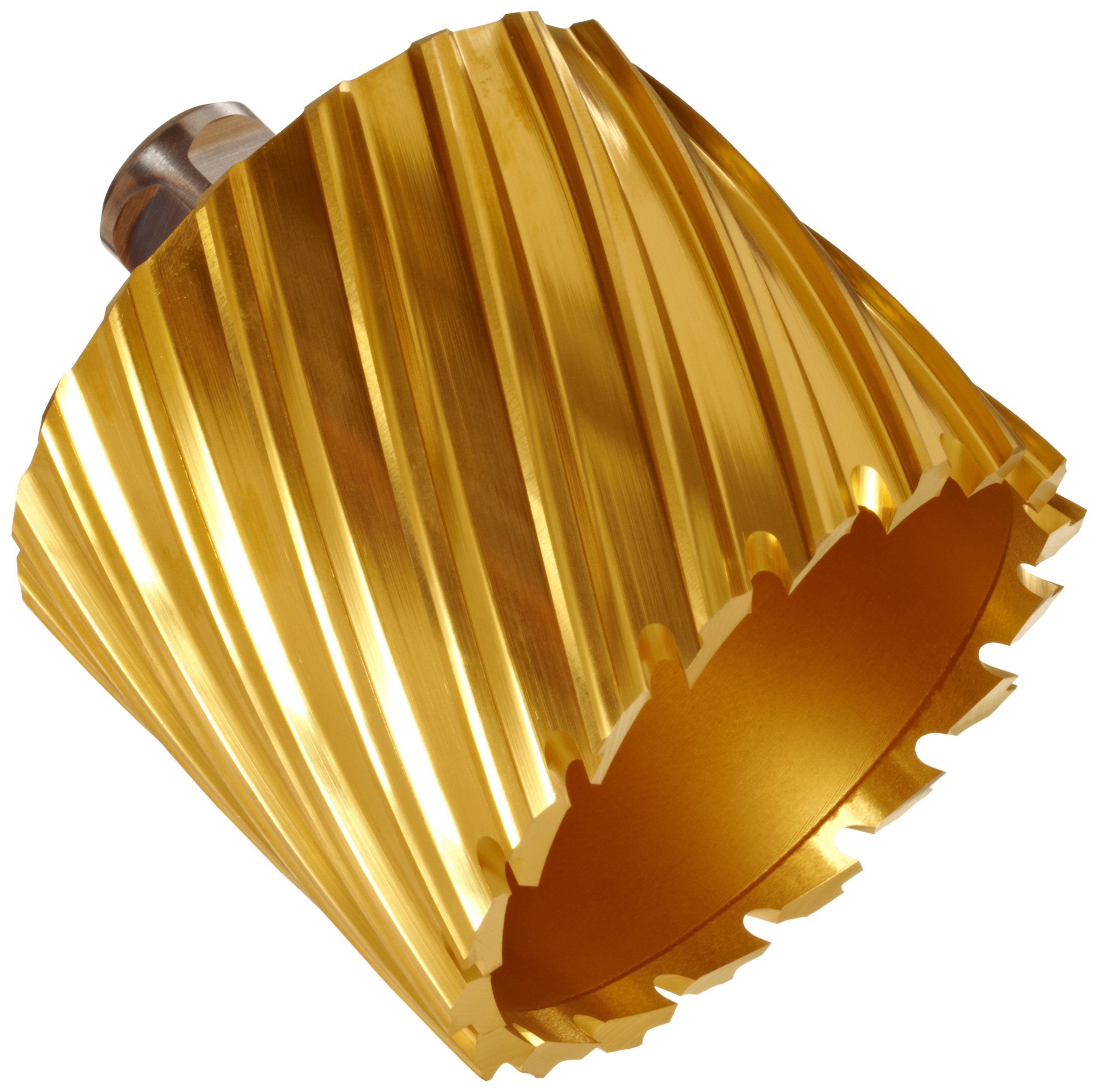

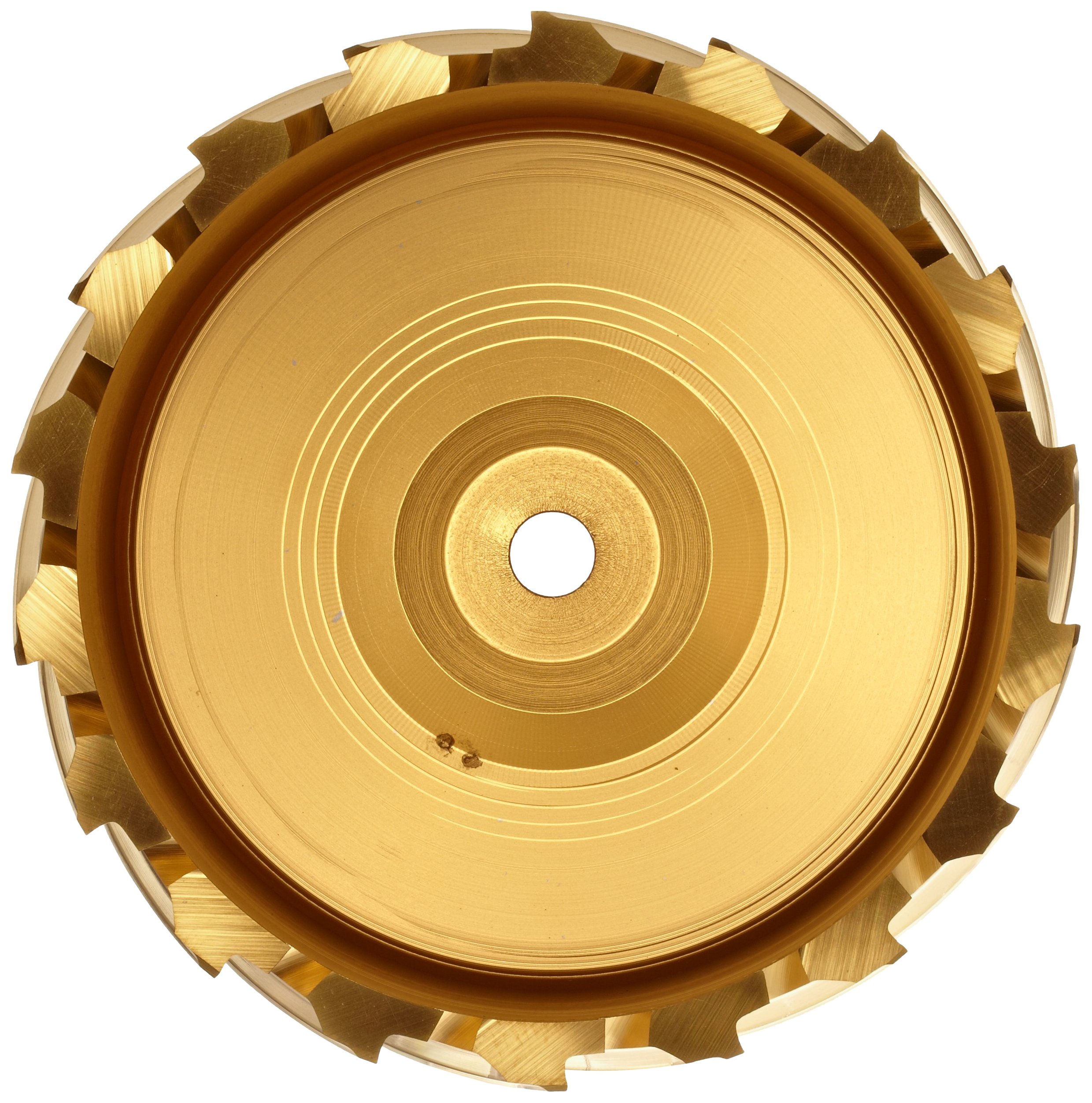

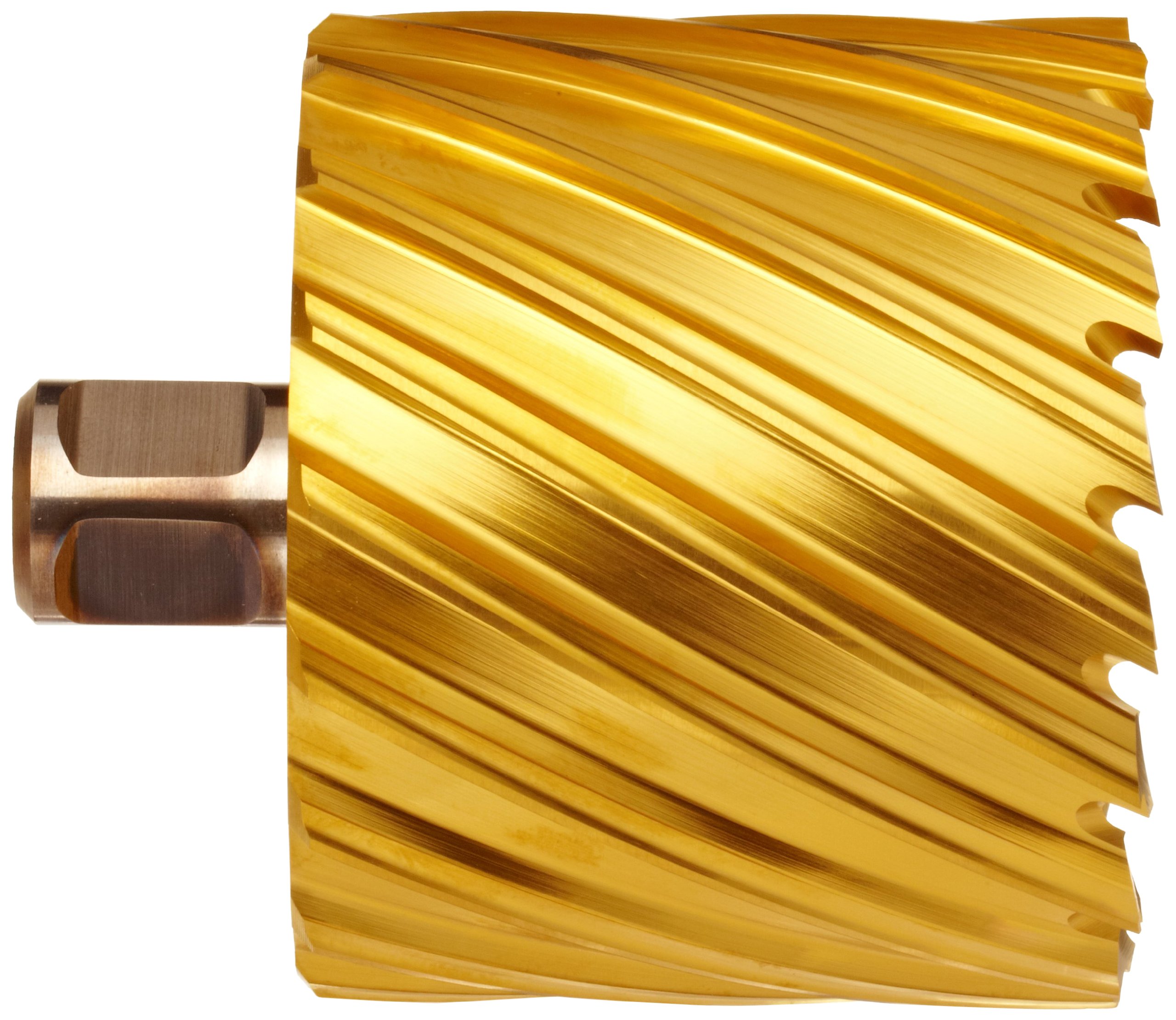

Jancy Slugger High Speed Steel Annular Cutter, TiN Coated, 3/4" Annular Shank, 2" Depth

Be the first to review this item

Product Specifications
Cutting Length
2.000  inches
Finish Types
TiN
Shank Type
Weldon
Material Type
High-Speed Steel
UNSPSC Code
23151901
Brand Name
Jancy Engineering Company
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 5 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 32 Next 12 »
Cutting diameter Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 32 Next 12 »
0.4375 inches SL437TN B003CN6FOM 2 $41.49 Buy Options
0.5000 inches SL500TN B003CN6FOW 2 $50.84 Buy Options
0.5625 inches SL562TN B003CN6FP6 1 $47.92 Buy Options
0.6250 inches SL625TN B003CN6FPG 3 $59.10 Buy Options
0.6875 inches SL687TN B003CN6FPQ 1 $45.53 Buy Options
0.7500 inches SL750TN B003CN6FQ0 2 $71.41 Buy Options
0.8125 inches SL812TN B003CN6FQA 1 $68.16 Buy Options
0.8750 inches SL875TN B003CN6FQK 1 $70.25 Buy Options
0.9375 inches SL937TN B003CN6FQU 1 $74.91 Buy Options
1.000 inches SL100TN B003CN6FR4 1 $78.96 Buy Options
1.062 inches SL106TN B003CN6FRE 1 $84.98 Buy Options
1.125 inches SL112TN B003CN6FRO 2 $74.08 Buy Options
1.187 inches SL119TN B003CN6FRY 1 $94.28 Buy Options
1.250 inches SL125TN B003CN6FS8 1 $111.69 Buy Options
1.312 inches SL131TN B003CN6FSI 2 $117.11 Buy Options
1.375 inches SL137TN B003CN6FSS 1 $112.00 Buy Options
1.437 inches SL143TN B003CN6FT2 1 $124.61 Buy Options
1.500 inches SL150TN B003CN6FTC 1 $119.37 Buy Options
1.562 inches SL156TN B003CN6FTM 1 $167.35 Buy Options
1.625 inches SL162TN B003CN6FTW 1 $149.82 Buy Options

Key Features

  • Center-free design creates through holes by cutting only the periphery of the hole for greater productivity in comparison to twist drills
  • Multiple cutting edges create a high-quality hole that minimizes the need for secondary operations such as pre-drilling and reaming
  • Titanium nitride (TiN) coating combines hardness with low friction for extended tool life and faster cutting
  • High-speed steel is compatible with a variety of materials
  • 3/4" annular cutter shank can be used in a drill press, mill, or lathe

Product Description

The Jancy Slugger high-speed steel annular cutter with titanium nitride (TiN) coating, 2” depth, and a 3/4” annular cutter shank is used to create through holes as deep as 2” in a range of materials, with best performance in hard-to-machine materials as well as mild steel and stainless steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.

High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. Titanium nitride is a gold-colored ceramic coating that combines hardness with low friction for extended cutting tool life and permits faster cutting speeds than with uncoated tools.

p> This tool’s annular cutter shank has two Weldon flats ground into a portion of the sides to provide a secure hold to help prevent slippage in drill presses, mills, or lathes. In this Jancy tool series, annular cutters can create holes of various diameters with a depth of cut as great as 2”.

Annular cutters are hollow drill bits that cut only the periphery of a hole, reducing the torque and horsepower requirements for drilling in many applications. Because they remove less material than standard twist drill bits, they have faster cutting speeds and use less energy in comparison with twist drills and are more efficient than metal hole saws. The multiple cutting edges on annular cutters produce accurate, burr-free holes without the need for pilot holes, minimizing the need for secondary operations such as pre-drilling, step drilling, or reaming.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for the fabrication trade. The company, founded in 1957 and headquartered in Davenport, IA, provides tools that meet ANSI standards to steel fabricators and erectors, machinists and maintenance personnel, and truck body and ship builders, among others.
