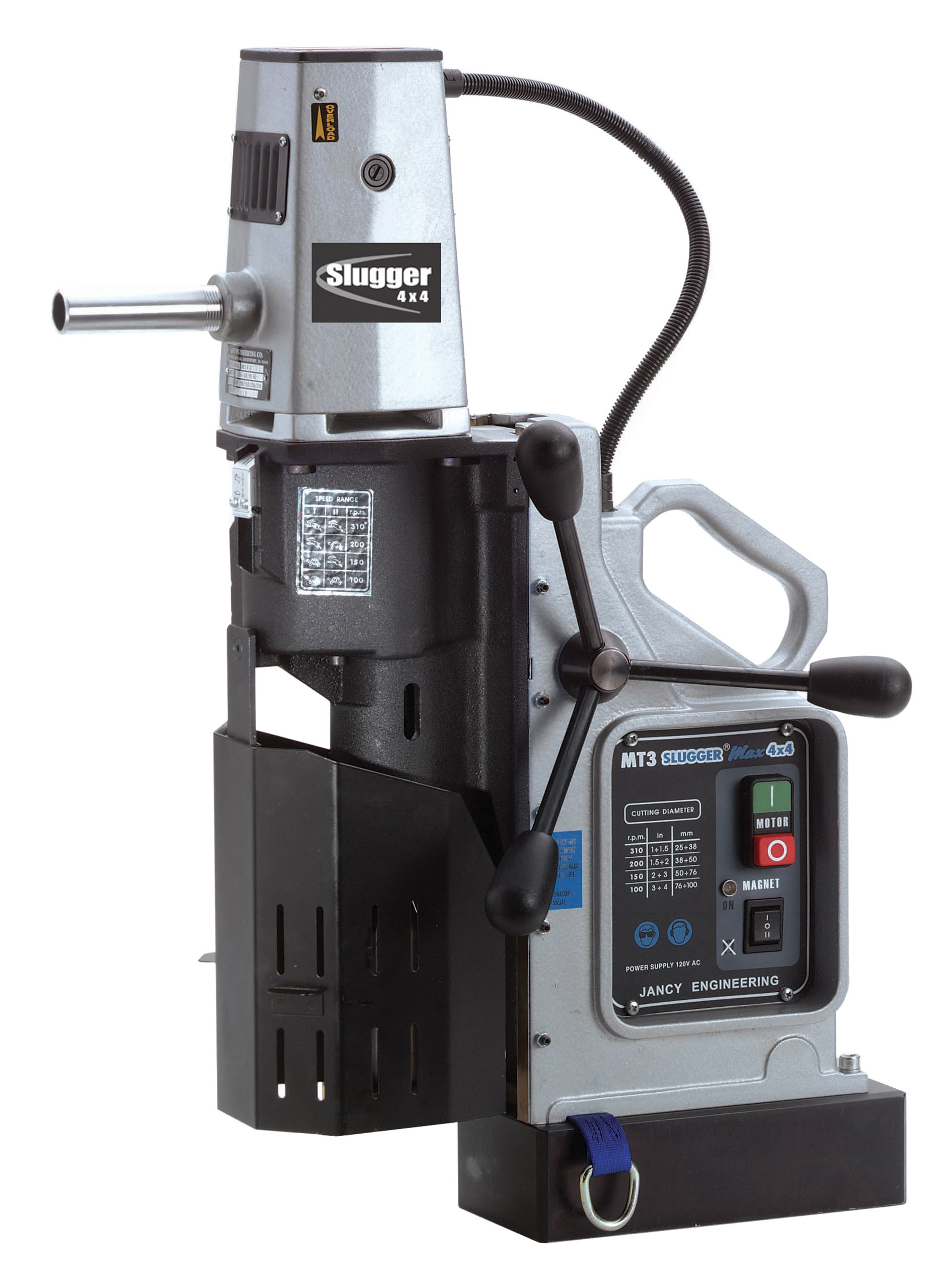

Jancy 4x4 Portable Magnetic-Base Drill, 120V, 11.7 Amp Motor, 4" Diameter x 3" Depth Capacity

Be the first to review this item

ASIN B003EYVE5E

Specifications for this item
Number of Items
1
Part Number
17985
Brand Name
Jancy Engineering Company
Arbor Hole Diameter
3/4  inches
List price:
$2,295.00
Price:
$2,180.00
You save:
$115.00 (5%)
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 3 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 120V, 11.7 amp magnetic-base drill press with 1.8 horsepower (HP) 1400 watt single-phase motor weighs 73 lb.
  • 4" maximum cutting diameter and 3" maximum cutting depth
  • 4833 lb. magnet dead lift and 1934 lb. drill point breakaway on 1" thick steel
  • Four-speed gear box for 100, 150, 200 or 310 RPMs
  • Magnetic field detection, integrated chip guard, and safety strap, to help ensure safe working environments

Package Details

Shipping Weight: 102 pounds
Package Size: 24.5 x 20 x 7.5 inches

Product Description

The Jancy 4x4 120V, 11.7 amp portable magnetic-base drill press has a four-speed gear box that can be set to 100, 150, 200, or 310 RPMs. It has a 4” maximum cutting diameter, a 3” maximum cutting depth, an external coolant chamber that delivers coolant through the arbor, and an electromagnet with a dead lift of 4833 lb. and a drill point breakaway of 1934 lb. on 1” thick steel when drilling holes 1-1/16” diameter and larger. Safety features prevent the drill from turning on if the magnetic field is not strong enough to hold the drill, turn on a warning light when the magnetic field drops to an unsafe level or when the feed is too fast, and turn the motor off if the press breaks free from the surface to which it is attached. A safety strap is designed to prevent the drill from falling if power to the magnet is interrupted, and a chip guard controls chips. For customization, a 3-spoke handle can be mounted on either side of the press. The drill press accommodates annular cutters with a 3/4" shank, and can be converted to accommodate a 1-1/4” twist drill (all sold separately).

The Jancy 4x4 120V portable magnetic-base drill has a 1.8 horsepower (HP) 1400 watt single-phase motor. The drill is 31-1/2 x 9-1/2 x 16 inches (H x W x D) and it weighs 73 lb. (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Magnetic drill presses are used in steel fabrication industries to drill holes in steel where it is necessary to move the drill to the workpiece, such as ship and bridge building. They are portable and have a magnetic base that secures the drill to the steel workpiece, allowing the drill to be mounted vertically, from either the top or bottom of the workpiece, or horizontally on the side of the workpiece. They are usually used with annular cutters, though some can be converted to hold a chuck with drill bits or with threading taps. Magnetic drill presses are given two numbers that signify the strength of the magnetic field. Magnet deadlift signifies the amount of force it takes to lift the drill off 1” thick steel when the magnet is turned on. Drill point breakaway is the amount of force it takes the drill bit to push the drill off 1” thick steel when the drill is in operation. Generally, higher numbers indicate that the press can exert more force on the workpiece.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for the fabrication trade. The company, founded in 1957 and headquartered in Davenport, IA, makes tools that meet American National Standards Institute (ANSI) standards.

What’s in the Box?

  • Jancy 4x4 120V magnetic drill press
  • Carrying Case
  • Safety strap
  • Knob and spoke handle
  • Hex keys: 2.5, 4, 5, 6, and 10 mm
  • 5 mm T-handle hex key
  • 8 mm combination wrench
  • Knock-out wedge
  • Coolant bottle assembly
  • Instructional DVD
  • Instructions
