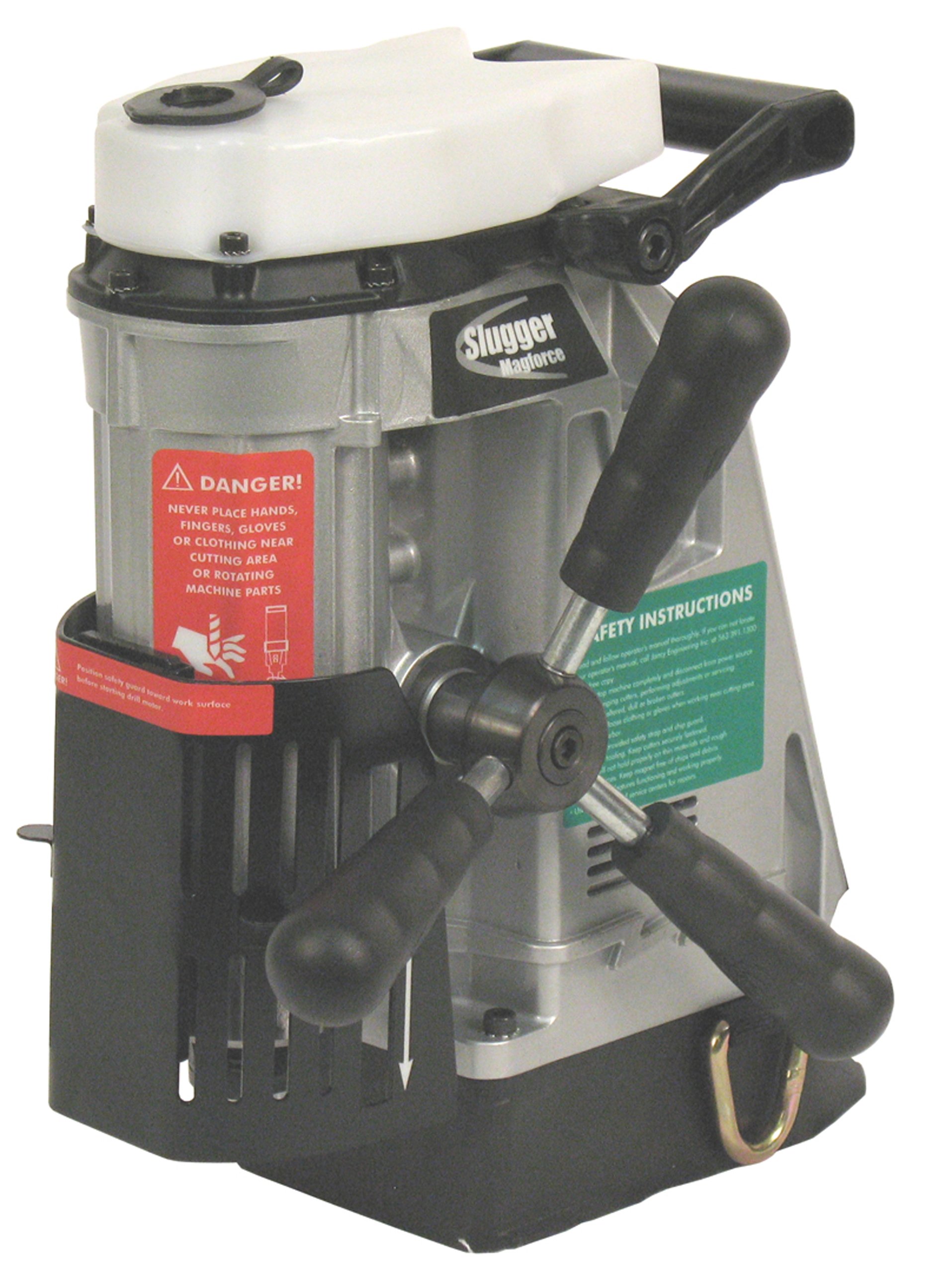

Jancy Magforce Portable Magnetic-Base Drill, 240V, 5.1 Amp Motor, 1-5/8" Diameter x 2" Depth Capacity

Be the first to review this item

ASIN B003EYVE4U

Specifications for this item
Number of Items
1
Part Number
6921
Brand Name
Jancy Engineering Company
Arbor Hole Diameter
3/4  inches
EAN
4014586700502
UNSPSC Code
23241801

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 240V, 5.1 amp magnetic-base drill press with 1.6 horsepower (HP) 1200 watt single-phase motor weighs 27 lb.
  • 1-5/8" maximum cutting diameter and 2" maximum cutting depth
  • 1810 lb. magnet dead lift and 1096 lb. drill point breakaway on 1" thick steel
  • Stationary motor ensures the working height remains constant
  • Magnetic field detection, integrated chip guard, and safety strap, to help ensure safe working environments

Package Details

Shipping Weight: 40.15 pounds
Package Size: 28.7 x 15.8 x 9.1 inches

Product Description

The Jancy Magforce 240V, 5.1 amp portable magnetic-base drill press has a stationary motor, making it a good choice for retrofitting in confined spaces. It has a 1-5/8” maximum cutting diameter, a 2” maximum cutting depth, and an electromagnet with a dead lift of 1810 lb. and a drill point breakaway of 1096 lb. on 1” thick steel when drilling holes 1-1/16” diameter and larger. An external coolant reservoir delivers coolant through the arbor, and can be removed to reduce the working height to 11”. Safety features prevent the drill from turning on if the magnetic field is not strong enough to hold the drill, turn on a warning light when the magnetic field drops to an unsafe level, and turn the motor off if the press breaks free from the surface to which it is attached. A safety strap is designed to prevent the drill from falling if power to the magnet is interrupted, and a chip guard controls chips. For customization, a 3-spoke handle can be mounted on either side of the press. The drill press accommodates annular cutters with a 3/4" shank, and can be converted to hold a 1/2” capacity drill chuck (all sold separately).

The Jancy Magforce 240V portable magnetic-base drill has a 1.6 horsepower (HP) 1200 watt single-phase motor. The drill is 12 x 6-1/2 x 11-1/2 inches (H x W x D) and it weighs 27 lb. (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

Magnetic drill presses are used in steel fabrication industries to drill holes in steel where it is necessary to move the drill to the workpiece, such as ship and bridge building. They are portable and have a magnetic base that secures the drill to the steel workpiece, allowing the drill to be mounted vertically, from either the top or bottom of the workpiece, or horizontally on the side of the workpiece. They are usually used with annular cutters, though some can be converted to hold a chuck with drill bits or with threading taps. Magnetic drill presses are given two numbers that signify the strength of the magnetic field. Magnet deadlift signifies the amount of force it takes to lift the drill off 1” thick steel when the magnet is turned on. Drill point breakaway is the amount of force it takes the drill bit to push the drill off 1” thick steel when the drill is in operation. Generally, higher numbers indicate that the press can exert more force on the workpiece.

Jancy Engineering manufactures Slugger portable magnetic drills and annular cutters, as well as metal working equipment for the fabrication trade. The company, founded in 1957 and headquartered in Davenport, IA, makes tools that meet American National Standards Institute (ANSI) standards.

What’s in the Box?

  • Jancy Magforce 240V magnetic drill press
  • Carrying case
  • Safety strap
  • Handle with 3 spokes
  • 3/16” pilot pins: 1” and 2” depths of cut
  • 1/4” pilot pins: 1” and 2” depths of cut
  • Hardware
  • 3 mm hex key
  • 5 mm T-handle wrench
  • Instructional DVD
  • Instructions
