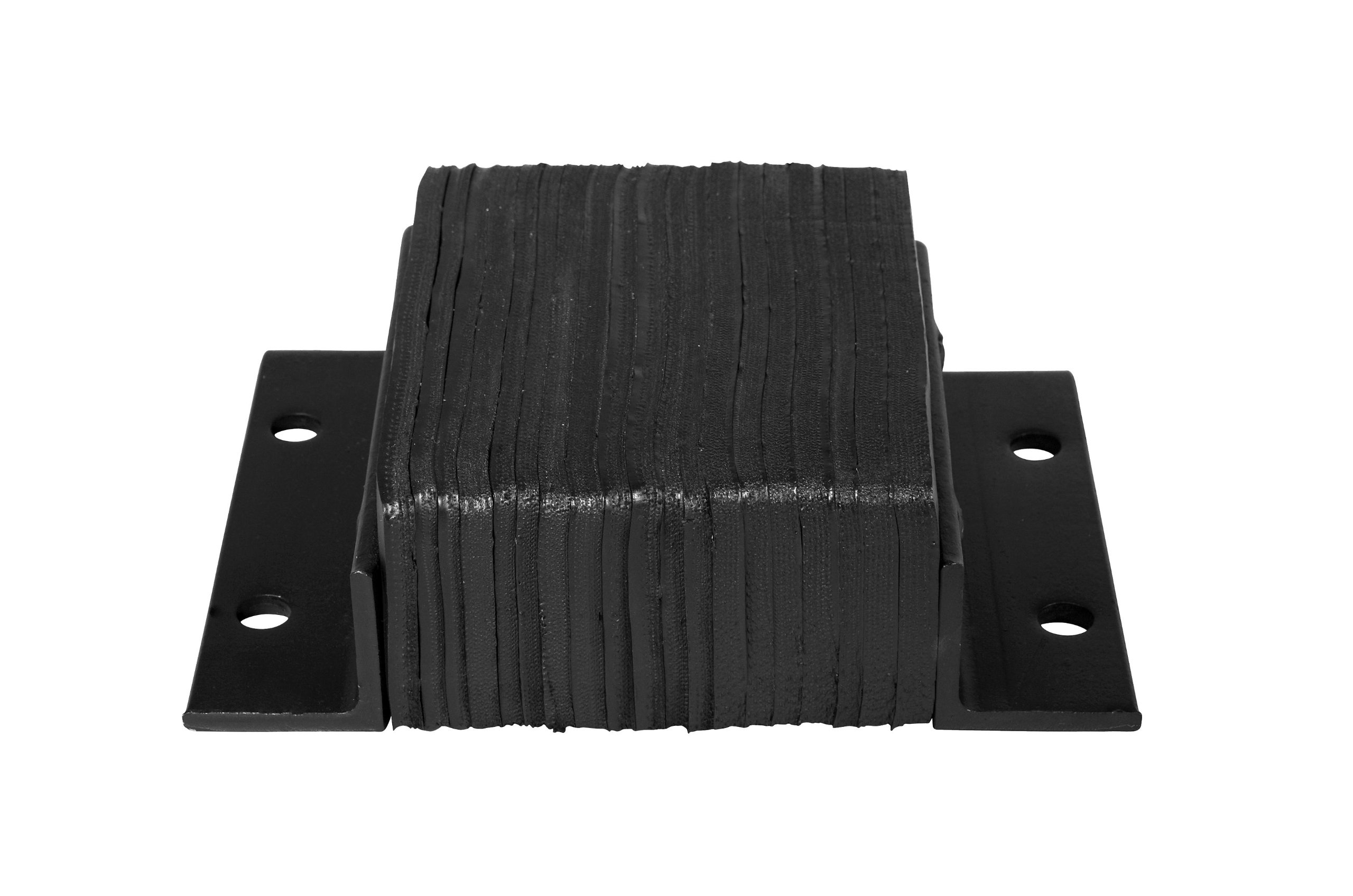

IRONguard Rubber Dock Bumper, Rectangular, Laminated, Horizontal Mount, 4 Holes, 12" Length, 14" Width, 4" Depth

Be the first to review this item


Specifications for this item
Overall Width
14  inches
Item Shape
Part Number
Item Depth
4 inches
Brand Name
Hole Count
Style Name
Number of Items
Material Type
Color Name
Manufacturer Series Number
Mounting Type
Horizontal Mount
Load Capacity
1500  pounds
Mounting Hole Diameter
1  inches
Overall Length
12  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, May 7? Order in-stock items in the next 16 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • 4" (+1/2" or -0") projection models
  • Designed for use at medium to high traffic loading docks
  • 3/8" full height steel angles and/or flat plates
  • Can be used in factories, warehouses, docks
  • Covered by a 1-year limited warranty

Package Details

Shipping Weight: 36 pounds
Package Size: 18 x 14 x 6 inches

Product Description

Angles on both sides for anchoring into concrete. For protecting above low docks. Rub rails at the sides of truck wells. Special construction features to accommodate unusual anchoring conditions (i.e. flat plate on one side to weld to dock leveler curb angle.). Wall bumpers to protect against fork lift trucks. Fabric reinforced rubber pads cut from recycled truck tires. Rubber pads laminated between structural angles and secured with 3/4" rods. Manufactured under pressure exceeding 1,500 lbs. to absorb over 80 percent of the impact. 3/8" thick angles or flat plate are closed on each end with 3/4" tie rod. Anchor leg of angle extends a minimum of 3" beyond the rubber surface at either end and contains 2 or 3 3/4" anchor bolt holes as required (anchor bolts are not supplied) - finish for exposed metal parts is black shop primer. Full height angles/flat plates to prevent fanning of rubber.
