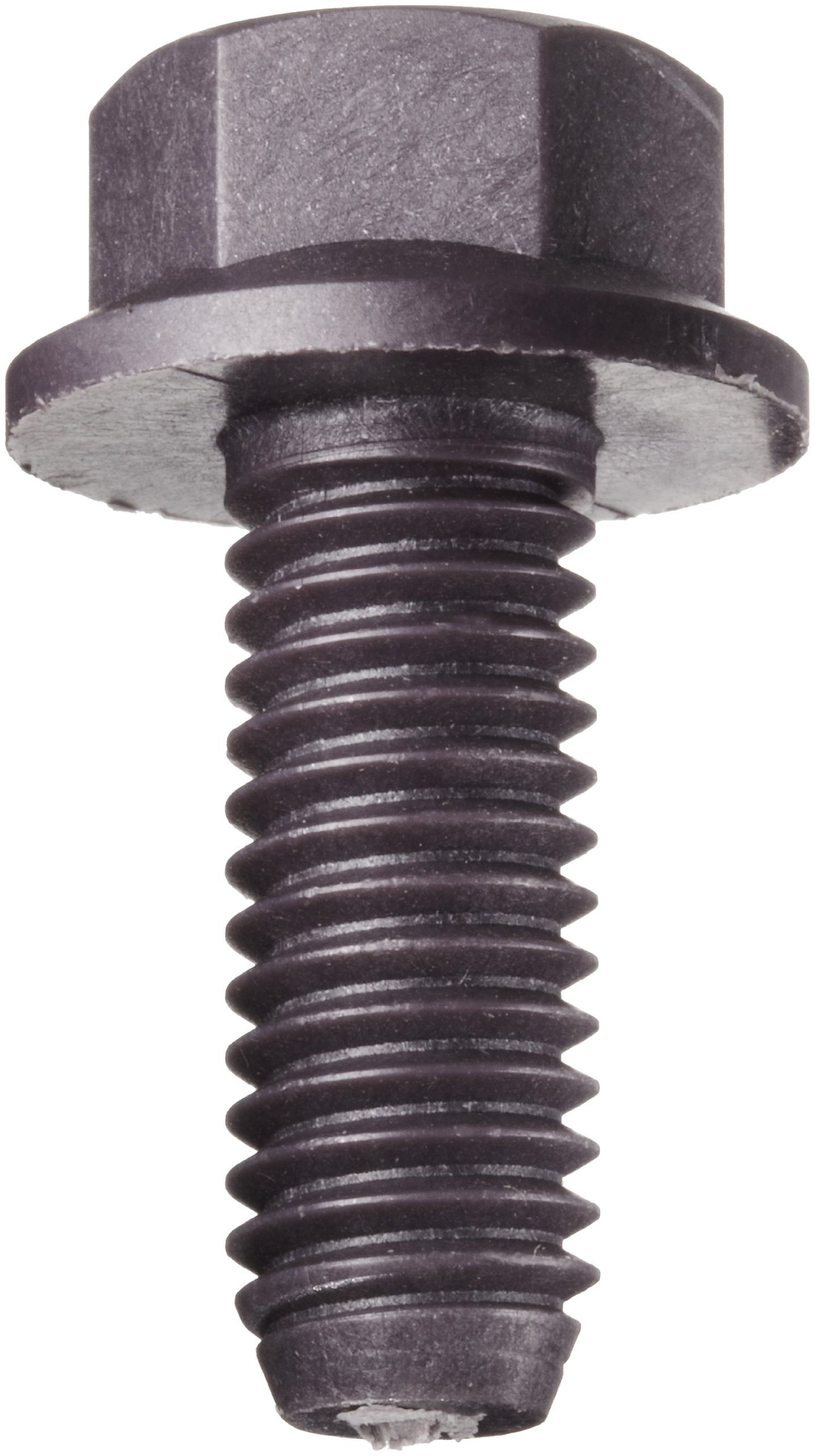

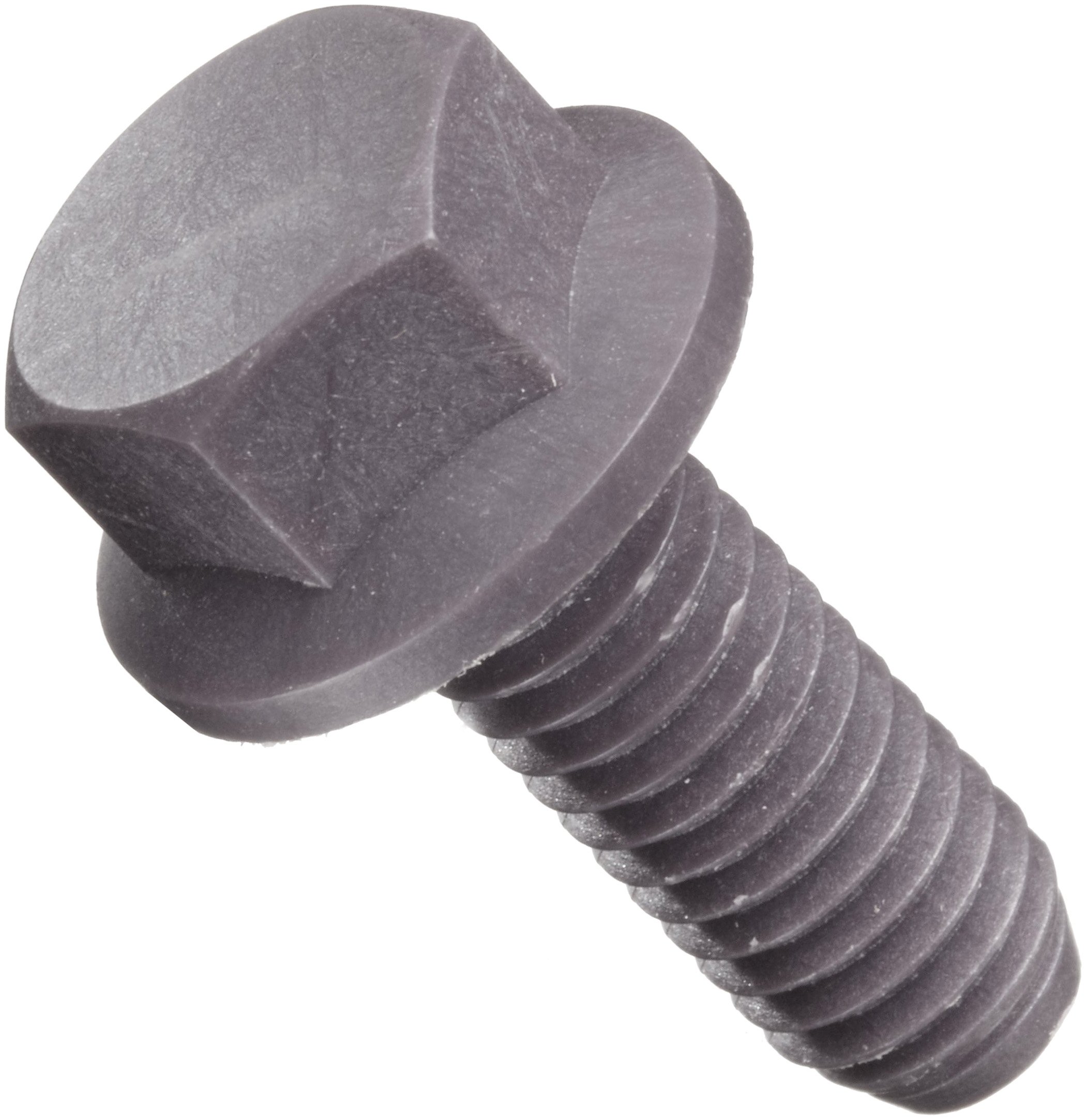

Isoplast Flange Bolt, Hex Head
Be the first to review this item
ASIN B003R7JD2Y
Specifications for this item
- Brand Name
- Small Parts
- Color Name
- Gray
- Drive Style
- Hex
- Exterior Finish
- Plain
- Head Style
- Hex
- Material Type
- Polyurethane
- Part Number
- B003R7JD2Y
- Self Locking Mechanism
- None
- System of Measurement
- Inch
- Thread Style
- Right Hand
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- Flange Bolts feature a built-in washer under the head
- Isoplast is suitable where high strength and chemical resistivity are important
- Hex head for easy driving
- Length is measured from under the head
Product Description
Flange Bolts have a built-in washer under the head which acts to distribute the clamping load over a greater area.
Isoplast 101 LGF40 NAT is a type of polyurethane developed by Dow Plastics. This particular material has been reinforced with 40% glass fibers, which has the effect of increasing tensile strength to 27,000 psi (pounds per square inch), higher than glass reinforced Peek. Isoplast is also impact resistant, with an Izod Impact Rating of 8 force pounds, which compares favorably to 3 force pounds for Nylon 6/6. Isoplast is chemically resistant, and resists water absorption, retaining only 0.11% weight after 24 hours of exposure. Dielectric strength is 500 volts per millimeter, indicating this material may be suitable as an insulator.
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine.
