Package Size: 7 x 7 x 7 inches

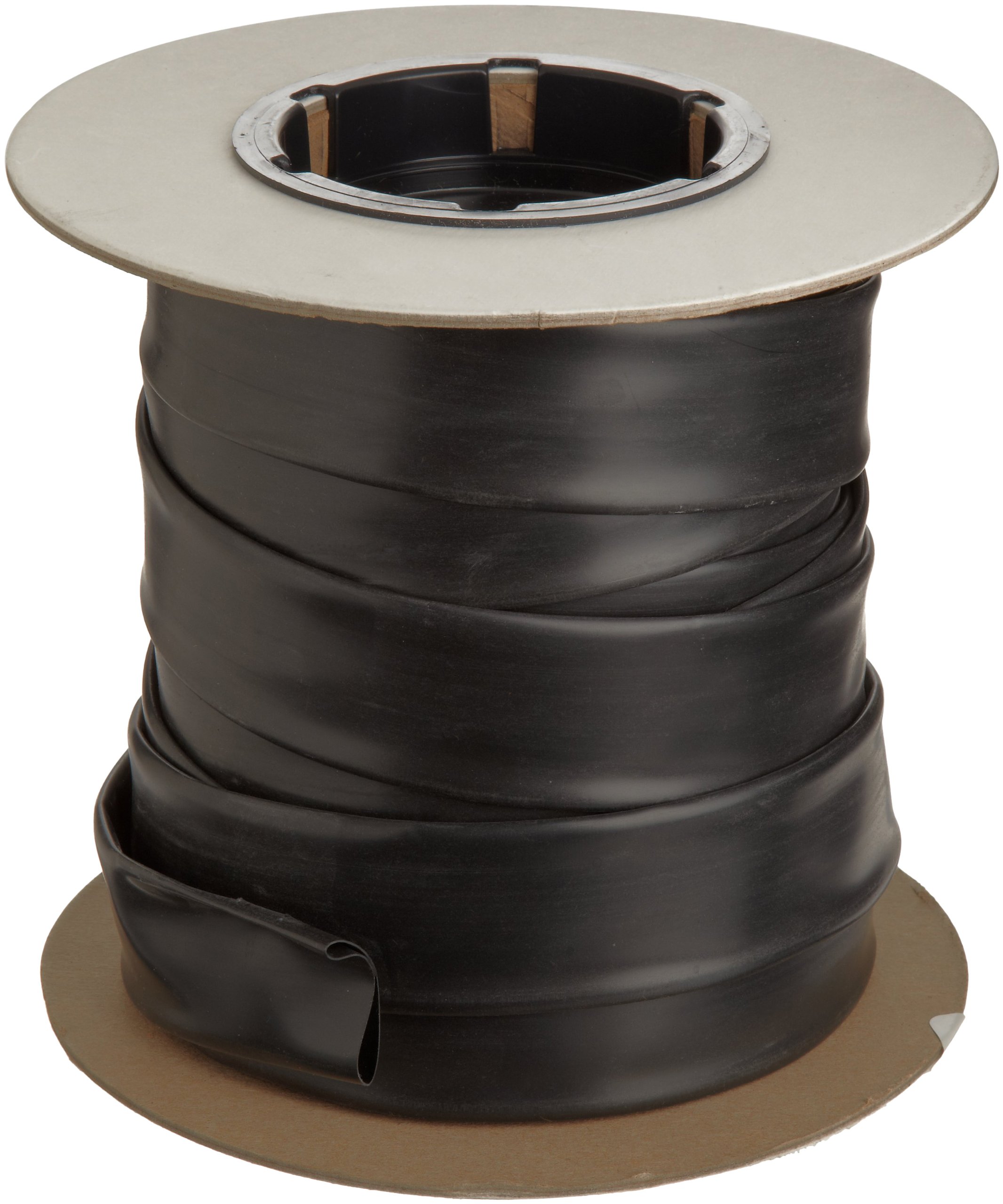

This Insultab 300750001A5 HS-105 black heat shrink tubing has a 3/4" inside diameter (ID), is 50' long, and is suitable for bundling wires, repairing insulation, insulating wires and wired connections for protection from abrasion or contact, and providing strain relief. It is made of PVC (polyvinyl chloride) for strength and resistance to chemicals, oils, moisture, salt water, fungus, and ultraviolet (UV) light. It has a 2:1 shrink ratio and a volume resistivity of 21.5 x 10 to the 12th power ohm-cm. It is Restriction of Hazardous Substances (RoHS) compliant, meets Underwriters Laboratories (UL) Subject 224 VW-1 standard for flammability, Canadian Standards Association (CSA) OFT standard for 600 volts, and ASTM International D3150 and Society of Automotive Engineers (SAE) AMS-DTL-23053/2 Class 2 standards for electrical insulation. This heat shrink tubing is suitable for a wide range of industrial, commercial, automotive, and military electrical applications.
|Expanded ID||0.75" (19.05mm)|
|Maximum recovered ID||0.375" (9.53mm)|
|Nominal recovered wall thickness||0.033" (0.84mm)|
|Minimum recommended shrink temperature||100 degrees C (212 degrees F)|
|Operating temperature range||-20 to +105 degrees C|
|Longitudinal shrinkage||Approximately 15%|
|Tensile strength||3,000 pounds per square inch (psi)|
|Brittleness temperature||-28 degrees C|
|Dialectic strength||1,083 volts per meter (vpm)|
|Standards met||RoHS compliant|
UL Subject 224 VW-1
CSA OFT rated for 600V
ASTM International standard D3150
SAE standard AMS-DTL-23053/2 Class 2
Insultab manufactures general purpose tubing and heat-shrinkable tubing. The company, founded in 1953 and located in Woburn, MA, meets International Organization for Standardization (ISO) standard 9001:2008.
