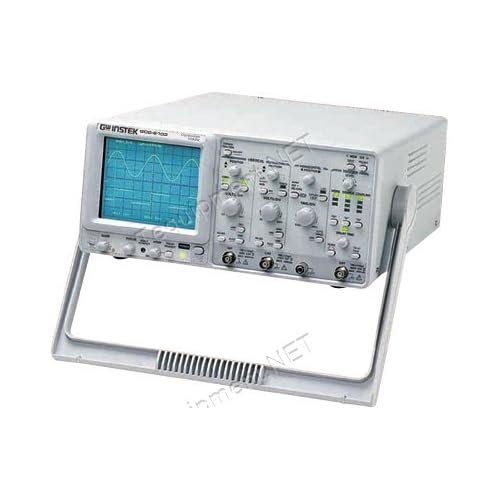

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Other Documentation
See all products in this Product Family

Instek GOS-6103C Portable Analog Oscilloscope with 100MHz Frequency Counter, 100MHz Bandwidth, 2 Channels, Timebase Auto-Range Function, CRT with 16kV Accelerating Potential

Be the first to review this item

ASIN B005LNUNIU

Product Specifications
Mfr Part #
GOS-6103C
EAN
4719692500403
Power Source Type
100/120/230 Volts
Specifications
with 2 Channel and 100MHz Frequency Counter
Specification for this product family (See all  products)
Overall Height
150  millimeters
Number of Items
1
Overall Width
310  millimeters
UNSPSC Code
41113638
Item Depth
455 millimeters
Brand Name
GW Instek

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 6 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 100MHz, two-channel, portable analog oscilloscope for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education
  • Auto-measurement function with digital counter for measuring frequency, period, width, and duty
  • Timebase auto-range function automatically selects the optimum sweep time for displaying waveforms
  • 6" CRT display with an internal 8 x 10 division grid for viewing waveforms
  • Meets EN and IEC 61010 safety standard and is rated for CAT II installations to 400V

Package Details

Shipping Weight: 23.05 pounds
Package Size: 20.5 x 16 x 10.1 inches

Product Description

The Instek GOS-6103C is a 100MHz, two-channel portable analog oscilloscope and frequency counter with a timebase auto-range function, delayed sweep mode, seven cursor measurements, storage for ten user-defined settings, Z-axis input, TV synchronization capability, trigger signal output, and high- and low-frequency rejection circuits for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. The auto-measurement function can measure frequency from 50Hz to 100MHz, period, +/- width, and +/-duty, displaying readings on a six-digit digital counter. The timebase auto-range function automatically selects the optimum sweep time for displaying waveforms. The oscilloscope has a standard sweep and a delayed sweep that can horizontally magnify any portion of a complex waveform for inspection. Seven cursor readout measurements—voltage difference, voltage difference percentage, voltage gain, time difference, time difference percentage, frequency, and phase—allow analysis of waveforms. Ten user-defined instrument settings can be saved and recalled. The Z-axis input modulates the intensity of the waveform and the TV synchronization circuit allows triggering of TV-V and TV-H signals. The trigger signal output can be connected to a frequency counter or other device (sold separately). High- and low-frequency rejection circuits remove interference from a signal to prevent false triggering. To protect settings against inadvertent changes, the control panel can be locked. Additional specifications include a rise time of 3.5ns (17.5ns at 2mV per division) and various triggering features. The oscilloscope has a 6" CRT (cathode ray tube) display with an internal 8 x 10 division grid (each division is 1 cm) for viewing waveforms. It meets European Standard (EN) and International Electrotechnical Commission (IEC) 61010-1 safety standard, and is rated for CAT (category) II installations to 400V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It comes with two 100MHz passive voltage probes, a power cord for 100/120/230VAC, 50/60Hz, and a user manual.

Specifications
Display6" CRT
Bandwidth100MHz
Frequency measurement range50Hz to 100MHz
ChannelsTwo
Installation ratingCAT II
Standards metEN and IEC 61010-1 safety standard
Power sourcePower cord for 100/120/230VAC, 50/60Hz
Dimensions (H x W x D)150 x 310 x 455 mm
WeightApproximately 9 kg

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Oscilloscopes are electrical testing devices used to verify the functionality of equipment that generates an electrical signal. Oscilloscopes measure the voltage of an electrical signal over time, and display the measurement as a waveform in a visual graph. The waveform shows the sweeps (or refresh) of voltage on a vertical (Y) axis, and the time on a horizontal (X) axis. Details of a waveform demonstrate the signal over time. Most oscilloscopes have two or four channels for inputting a signal. Some digital oscilloscopes offer more than four channels, allowing channels to be dedicated to specific signals and applications. Bandwidth is the maximum frequency of a signal that an oscilloscope can capture. A constant image will display if a signal is shown at a high frequency. Oscilloscopes may be analog, digital, or mixed signal. An analog oscilloscope directly displays an input signal as a continuous waveform, typically in a luminous phosphor on a cathode ray tube (CRT). A digital oscilloscope converts the input signal into a digital format and reassembles the waveform for display, typically on an LCD. A mixed signal oscilloscope (MSO) displays both analog and digital formats. Some oscilloscopes can display more than one channel and type of measurement simultaneously. Some oscilloscopes can capture waveform signals to memory, and recall them. They may provide real-time intensity grading, and may have the ability to adjust frequency of display. Oscilloscopes can be powered with batteries or electricity, or may have a built-in generator. They are commonly used for testing, measuring, and inspecting in science, engineering, telecommunications, automotive, and electronics applications.

GW Instek manufactures test and measurement equipment such as oscilloscopes, spectrum analyzers, signal testers, and video surveillance systems. The company, founded in 1975 and headquartered in Taipei, Taiwan, meets International Organization for Standardization (ISO) standards 9002 and 14001.

What's in the Box?
  • Instek GOS-6103C analog oscilloscope
  • (2) 100MHz passive voltage probes
  • Power cord
  • User manual
