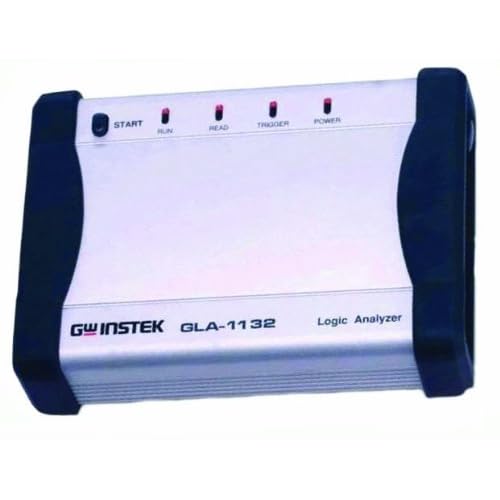

GW Instek GLA-1132 Logic Analyzer with 32 Input Channel, 32Mbits/1Mbits Memory Depth

Be the first to review this item

ASIN B0094JTV30

Specifications for this item
Overall Height
39  millimeters
Number of Items
1
Overall Width
137  millimeters
Part Number
GLA-1132
Temperature Range
0 to 50  Degrees Celsius
Item Depth
102 millimeters
Brand Name
GW Instek
UNSPSC Code
32131000

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 32 Input channel
  • Time analysis: up to 200 MHz internal sampling rate
  • State analysis: up to 100 MHz external input clock
  • Memory depth: 32Mbits/1Mbits (half/full channels)
  • Enable qualifier: high/low level enable and enable delay function

Product Description

The GLA-1000 Series is a palm-sized PC based logic analyzer with functionality matching that of a desktop device. 200 MHz internal sampling rate and advanced trigger settings provide high accuracy and lengthy data analysis results. Features, such as data-loss-less compression, enable qualifier, and serial bus protocol analyzer, provide you with a tool to adequately analyze today's complex digital systems. All data and configurations can be saved into a PC for further data analysis. The GLA-1000 Series operates over a high speed USB 2.0 connection and is fully powered by the USB bus. Signal analyzer: I2C, RS-232C protocol analyzer and signal statistics. File export: signal data, operation setting and display image. USB 2.0 supported(1.1 compatible). Channels: 16. Memory total/per channel: 32Mbits/1Mbits. Operating system: Win XP/Win Vista /Win 7. Timing analysis: maximum 200 MHz. State analysis: 0.001Hz to 100 MHz. Maximum input voltage: +/-30V. Impedance: 500 kiloohm/10pF. Data Skew: greater than 1.5ns. Static current consumption: Maximum 200mA. Working current consumption: Maximum 400mA. Static power dissipation: Maximum 1W. Working power dissipation: Maximum 2W. Interface: USB. Working voltage: 4.5V to 5.5V. Operating temperature: 0 to 50 degree C. Storage temperature: -40 to 80 degree C. Measures 137mm width by 39mm height by 102mm depth.
