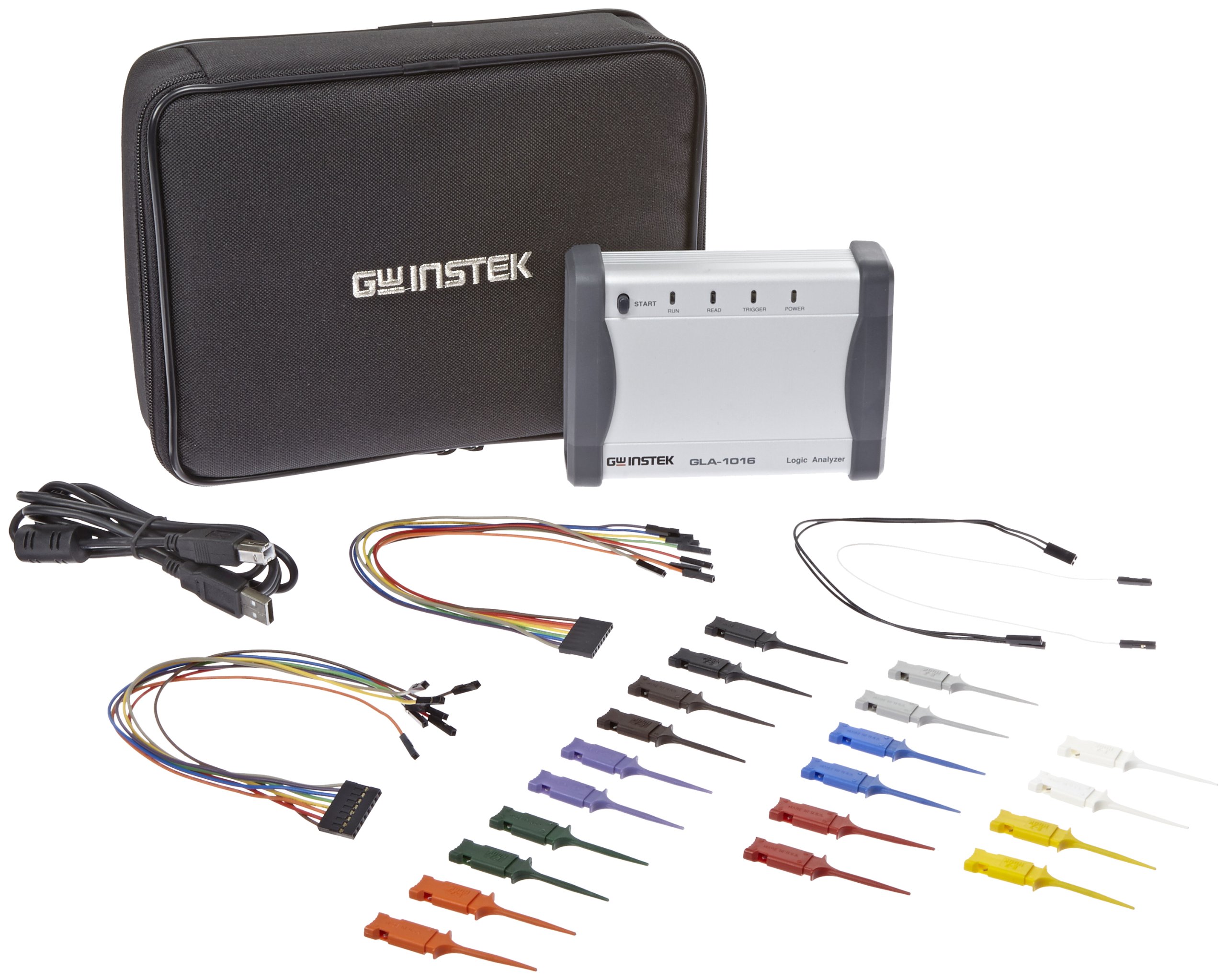

GW Instek GLA-1016 Logic Analyzer with 16 Input Channel, 4Mbits/256kbits Memory Depth

Be the first to review this item


Specifications for this item
Number of Items
Overall Height
39  millimeters
Overall Width
137  millimeters
Part Number
Temperature Range
0 to 50  Degrees Celsius
Item Depth
102 millimeters
Brand Name
GW Instek

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • 16 Input channel
  • Time analysis: up to 200 MHz internal sampling rate
  • State analysis: up to 100 MHz external input clock
  • Memory depth: 4Mbits/256kbits (half/full channels)
  • Enable qualifier: high/low level enable and enable delay function

Package Details

Shipping Weight: 2.2 pounds
Package Size: 11.5 x 8 x 3 inches

Product Description

The GLA-1000 Series is a palm-sized PC based logic analyzer with functionality matching that of a desktop device. 200 MHz internal sampling rate and advanced trigger settings provide high accuracy and lengthy data analysis results. Features, such as data-loss-less compression, enable qualifier, and serial bus protocol analyzer, provide you with a tool to adequately analyze today's complex digital systems. All data and configurations can be saved into a PC for further data analysis. The GLA-1000 Series operates over a high speed USB 2.0 connection and is fully powered by the USB bus. Signal analyzer: I2C, RS-232C protocol analyzer and signal statistics. File export: signal data, operation setting and display image. USB 2.0 supported(1.1 compatible). Channels: 16. Memory total/per channel: 4Mbits/256kbits. Operating system: Win XP/Win Vista /Win 7. Timing analysis: maximum 200 MHz. State analysis: 0.001Hz to 100 MHz. Maximum input voltage: +/-30V. Impedance: 500 kiloohm/10pF. Data Skew: greater than 1.5ns. Static current consumption: Maximum 200mA. Working current consumption: Maximum 400mA. Static power dissipation: Maximum 1W. Working power dissipation: Maximum 2W. Interface: USB. Working voltage: 4.5V to 5.5V. Operating temperature: 0 to 50 degree C. Storage temperature: -40 to 80 degree C. Measures 137mm width by 39mm height by 102mm depth.
