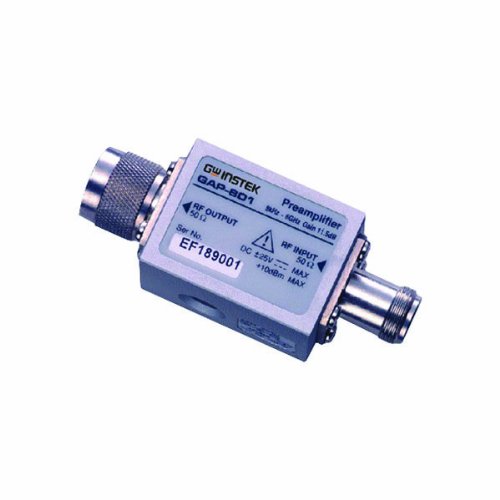

GW Instek GAP-801 10dB Typical Preamplifier for GSP Series Spectrum Analyzer

Be the first to review this item

ASIN B0094JTBVM

Specifications for this item
Number of Items
1
Part Number
GAP-801
Brand Name
GW Instek

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Frequency range: 9kHz ~ 6GHz
  • Gain (Gp): greater than 9dB; typical 11.5dB
  • Output 1dB compression point (P1dB): greater than +13dBm, Typical +14dBm
  • Standing wave ratio (SWR): less than 1.8:1; typical 1.3:1
  • 3rd Order intercept point (IP3): greater than +21dBm, typical +27dBm

Product Description

Frequency range: 9kHz to 6GHz. Gain: greater than 9dB, typical 11.5dB. Output 1dB compression point (P1dB): greater than +13dBm, typical +14dBm. Standing wave ratio: less than1.8:1, typical 1.3:1. 3rd Order intercept point: greater than +21dBm, typical +27dBm. Noise figure: greater than 7.2dB, typical 6.8dB. Device Current (Ic): 42 to 55mA, typical 45mA.
