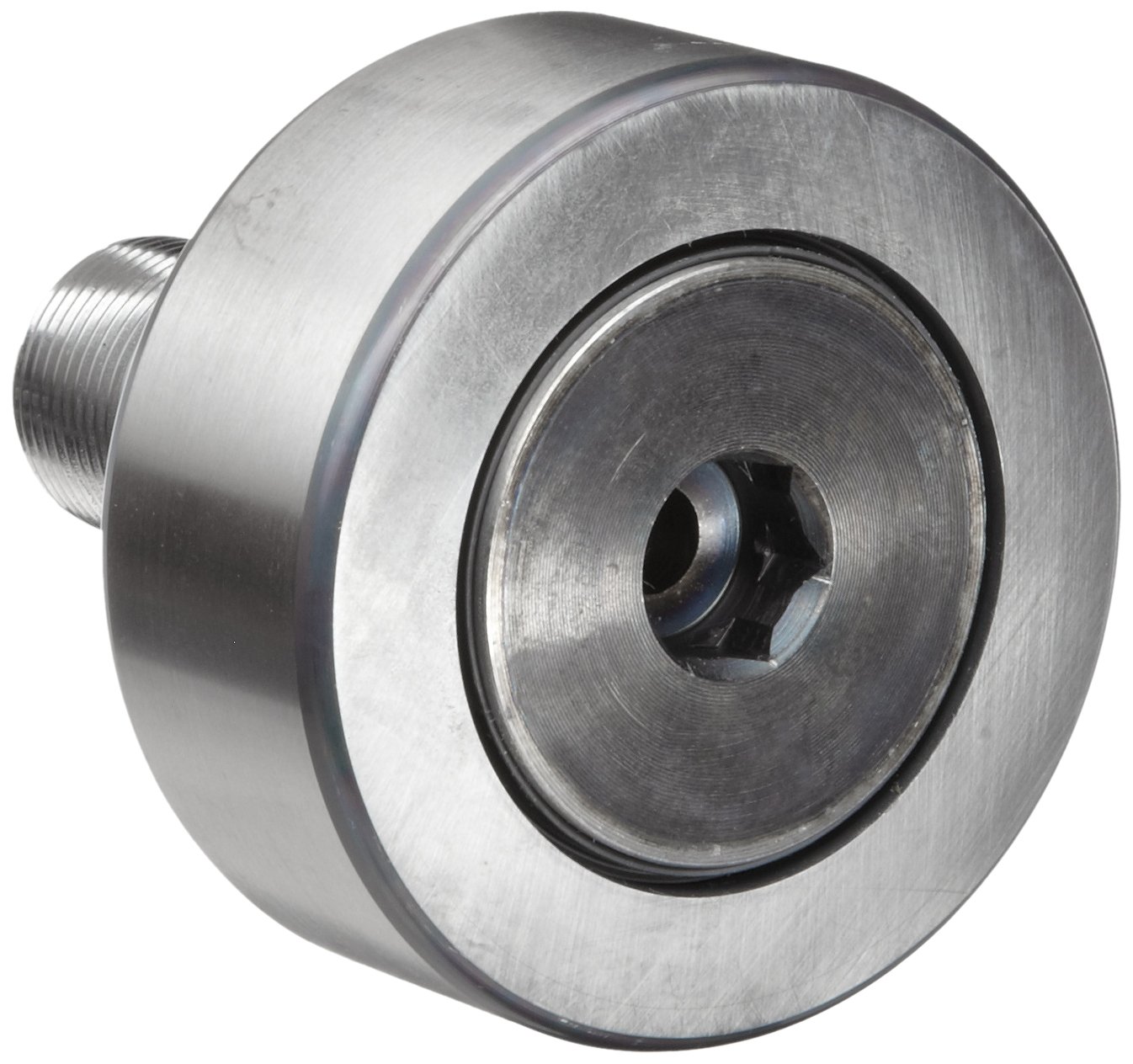

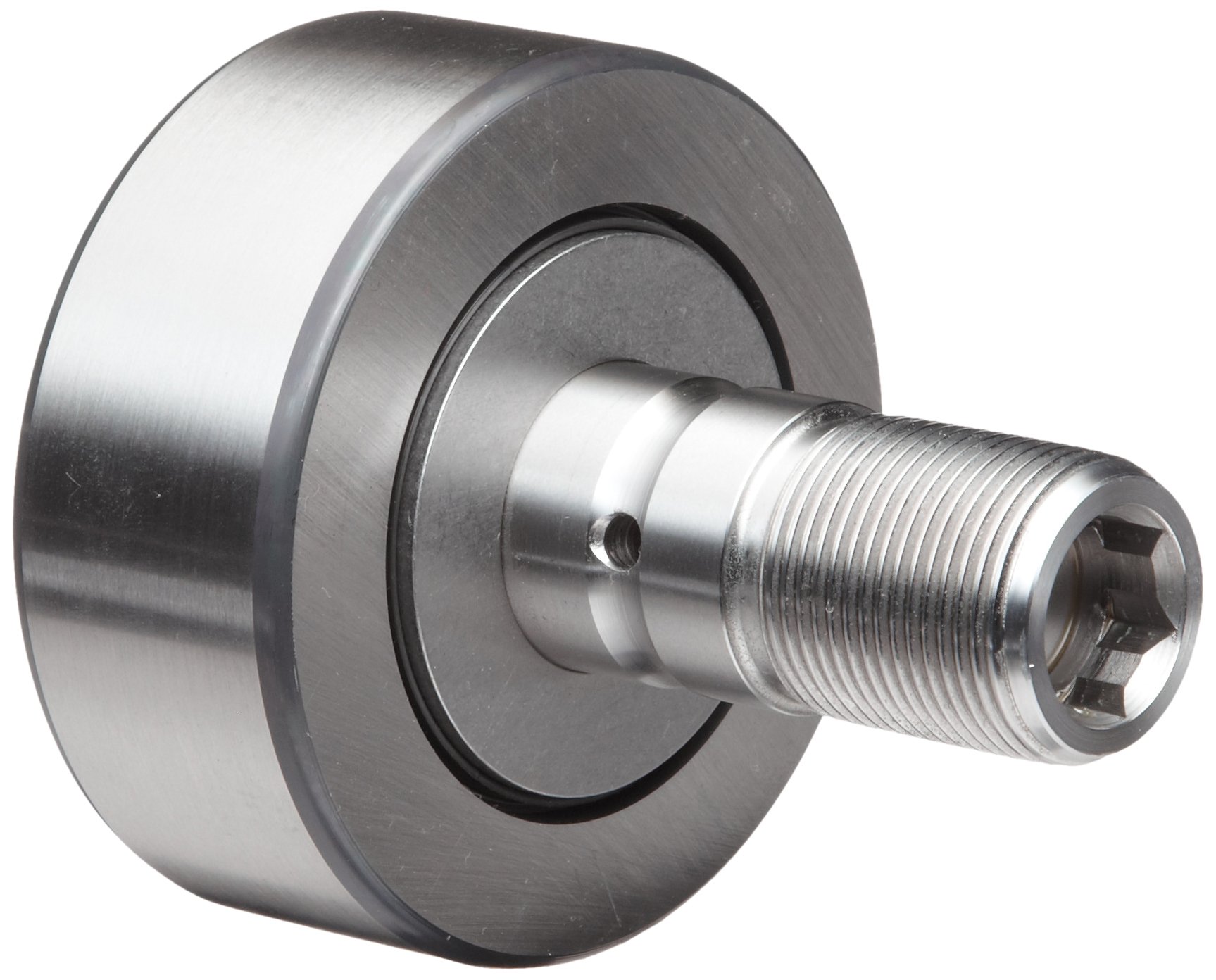

INA KR Series Cam Follower, Stud Type, Sealed, Steel, Metric

Be the first to review this item

ASIN B0071OU706

Specifications for this item
Manufacturer Series Number
KR
Number of Items
1
Max Rotational Speed
0  RPM
Bore Diameter
N/A  inches
Material Type
Steel
Static Load Capacity
0  pounds
UNSPSC Code
31171530
Dynamic Load Capacity
0  pounds
Brand Name
INA
System of Measurement
Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cam follower with needle rollers supports radial and thrust loads in cam- and track-type applications
  • Stud-type design with a hexagonal socket for through-hole or threaded mounting
  • Roller cage evenly spaces rollers for reduced friction, vibration, and noise
  • Plastic axial plain washers and formed seal lips help retain lubricant and prevent contamination
  • Profiled outside surface optimizes the distribution of contact stress

Product Description

This INA KR series steel stud-type cam follower bearing with seals and needle rollers is designed for cam- and track-type applications, and supports high radial loads and axial loads resulting from slight misalignments. Its thick-walled outer ring helps minimize deformation under heavy radial and shock loads. The contoured surface of the outer ring evenly distributes loads when misalignments occur. This cam follower has a stud-type mounting design for through-hole or threaded mounting, and a hexagonal hole on the flange end that provides greater holding power during mounting than a screwdriver slot. The contact flange and contact washers provide axial guidance to the outer ring. A roller cage provides guidance and even spacing of the needle rollers for minimum vibration and noise when operated at high speeds. Seals on both sides of the bearing, consisting of plastic axial plain washers with molded seal lips, retain a lithium complex soap grease lubricant applied at manufacture and help protect against contaminants. This cam follower is made of low alloy, through-hardened chromium steel for durability and heat tolerance, and has lubrication holes on the stud’s flange side, thread-side end face, and shank for reapplying lubricant. It includes loose drive-fit lubrication nipples. Operating temperatures range from -30 to +100 degrees C. This cam follower is suitable for use in a broad range of applications including process transfer lines, ram support rollers, conveyors, machine tools, and indexing equipment, among others.

Track runner bearings, also called track roller bearings, are rolling element bearings with a thick-walled outer ring that rotates directly on cam and track surfaces. The thick outer ring helps minimize deformation under load stress and enables the bearing to handle heavy rolling and shock loads. Track runner bearings have either a stud-type or yoke-type mounting design. Stud-type track rollers, such as cam followers, have a built-in threaded rod, instead of an inner ring, for either threaded mounting or through-hole mounting onto machine components. Through-hole mounting uses a hexagonal nut on the threaded end to secure the bearing into place. Yoke-type track rollers, such as roller followers, are mounted in a yoke-style housing on a press-fitted or push-fitted shaft or pin. Available in a variety of materials and mounting configurations, track runner bearings are used in a broad range of cam-controlled and linear motion applications including agricultural machinery, conveying equipment, cam drives, material handling equipment, robotics, and automotive equipment, among others.

INA manufactures bearings for automotive and industrial applications. The company is part of the Schaeffler Group, founded in 1946 in Herzogenaurach, Germany, and meets International Organization for Standardization (ISO) standards 9001:2008 and TS 16949:2009 for quality assurance.
