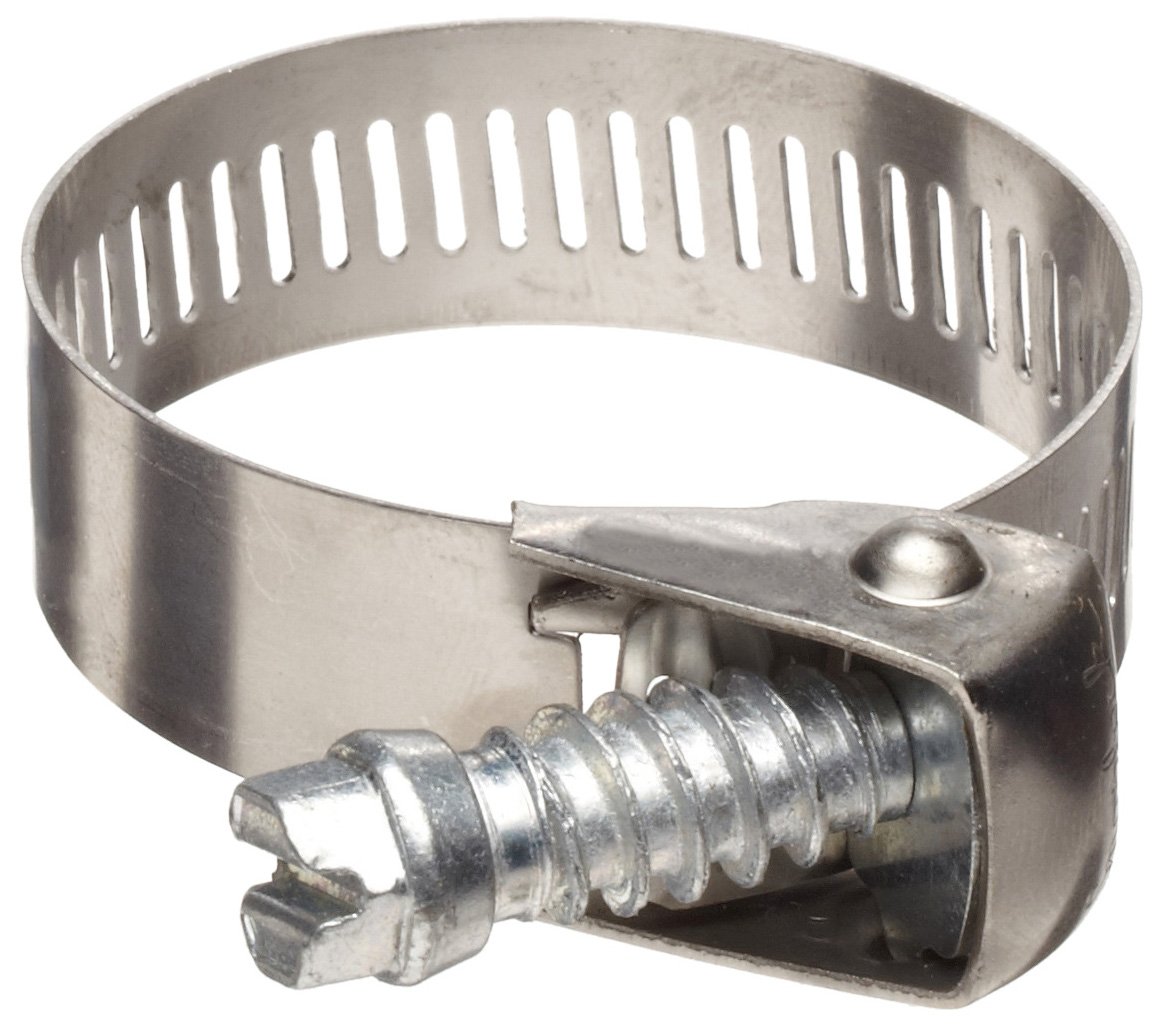

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Ideal-Tridon Snaplock 56 Series Stainless Steel 201/301 Quick Release Worm Gear Hose Clamp

Be the first to review this item

Product Specifications
Bolt Hole Size
5/16  inches
Brand Name
Ideal-Tridon
Item Shape
Worm Gear
Manufacturer Series Number
Snaplock 56
Material Type
Stainless Steel 201/301

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 19 hours 34 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 10 of 10
SAE Size For Hose/Tube OD Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All All All
Currently showing 10 of 10
104 1-3/4 - 6-1/2 45 mm 178 mm 9/16" 10 5610451 B002JG525G In Stock (3) $18.07
12 3/8 - 3/4 13 mm 32 mm 9/16" 10 5612051 B008Z5ZI9A In Stock (2) $10.36
20 3/4 - 1-1/8 19 mm 44 mm 9/16" 10 5620051 B008Z5ZLM4 In Stock (2) $10.66
24 7/8 - 1-3/8 26 mm 51 mm 9/16" 10 5624051 B008Z5ZMAU In Stock (2) $10.89
28 7/8 - 1-5/8 26 mm 57 mm 9/16" 10 5628051 B008Z5ZMZU In Stock (2) $11.15
36 7/8 - 2 26 mm 70 mm 9/16" 10 5636051 B008Z5ZNSG In Stock (2) $11.84
48 1-1/2 - 2-3/4 38 mm 89 mm 9/16" 10 5648051 B008Z5ZOEE In Stock (2) $12.04
56 7/8 - 3-1/2 26 mm 101 mm 9/16" 10 5656051 B008Z5ZPB6 In Stock (2) $13.64
72 2 - 4-1/2 51 mm 127 mm 9/16" 10 5672051 B000DZKS3G In Stock (2) $15.53
88 2 - 5-1/2 51 mm 152 mm 9/16" 10 5688051 B008Z5ZQ38 In Stock (2) $15.37

Key Features

  • Stainless steel band for resistance to scaling and corrosion
  • Zinc-plated carbon steel screw resists rust
  • Quick release screw swivels to lock or disengage the clamp
  • Band width of 9/16" provides greater sealing area than smaller width band

Product Description

The Ideal-Tridon Snaplock 56 series stainless steel quick release worm gear clamp has a stainless steel band and housing, a zinc-plated steel screw, and a quick release mechanism. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The band’s 9/16” width provides a greater sealing area than clamps of smaller width. The band is made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 201 standard and the housing is made of SAE 301 stainless steel, each providing resistance to scaling and corrosion. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw and bridge are made of carbon steel that is zinc-plated for resistance to rust. The screw swivels to lock the clamp or disengage it for quick release.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Ideal Clamp Products manufactures worm gear and specialty clamps for automotive, industrial, plumbing, and marine applications. The company, founded in 1913, is headquartered in Smyrna, TN.
