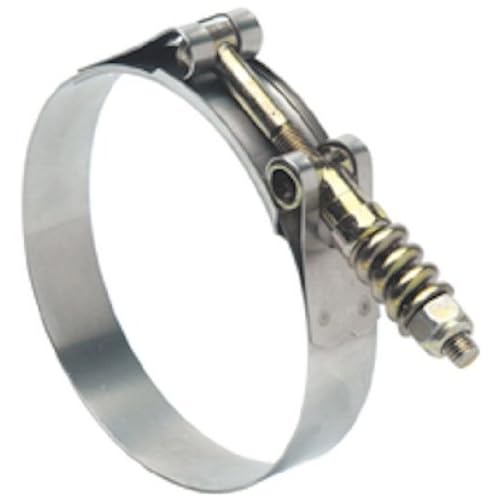

Ideal-Tridon 30030 Series Stainless Steel 201/301 T-Bolt Spring Loaded Hose Clamp, Heavy Duty

Be the first to review this item

Product Specifications
Brand Name
Ideal-Tridon
Item Shape
T-Bolt
Manufacturer Series Number
30030
Material Type
Stainless Steel 201/301

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, June 20? Order in-stock items in the next 9 hours 32 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 4 of 4
SAE Size Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All All
Currently showing 4 of 4
102 103.2 mm 111.1 mm 3/4" 10 300300406051 B008Z64FNY In Stock (1) $41.46
118 115.9 mm 123.8 mm 3/4" 10 300300456051 B008Z64GA6 In Stock (2) $40.88
70 77.8 mm 85.7 mm 3/4" 10 300300306051 B008Z64DJA In Stock (1) $41.21
86 90.5 mm 98.4 mm 3/4" 10 300300356051 B008Z64EWG In Stock (2) $38.89

Key Features

  • Band/Bridge: 3/4" width, 201/301 stainless steel.
  • Bolt: 1/4" - 28 plated steel.
  • Spring: Plated steel. Nut: 7/16" hex, nylon insert, plated steel locknut.
  • Trunnion: Plated steel.
  • Installation torque is 75.0 in.-lbs. or 8.5 Nm

Product Description

Heavy duty t-bolt clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. Helical spring design provides a continuous load to prevent leak paths from temperature fluctuations. Typical applications include heavy truck charge air and cooling systems.
