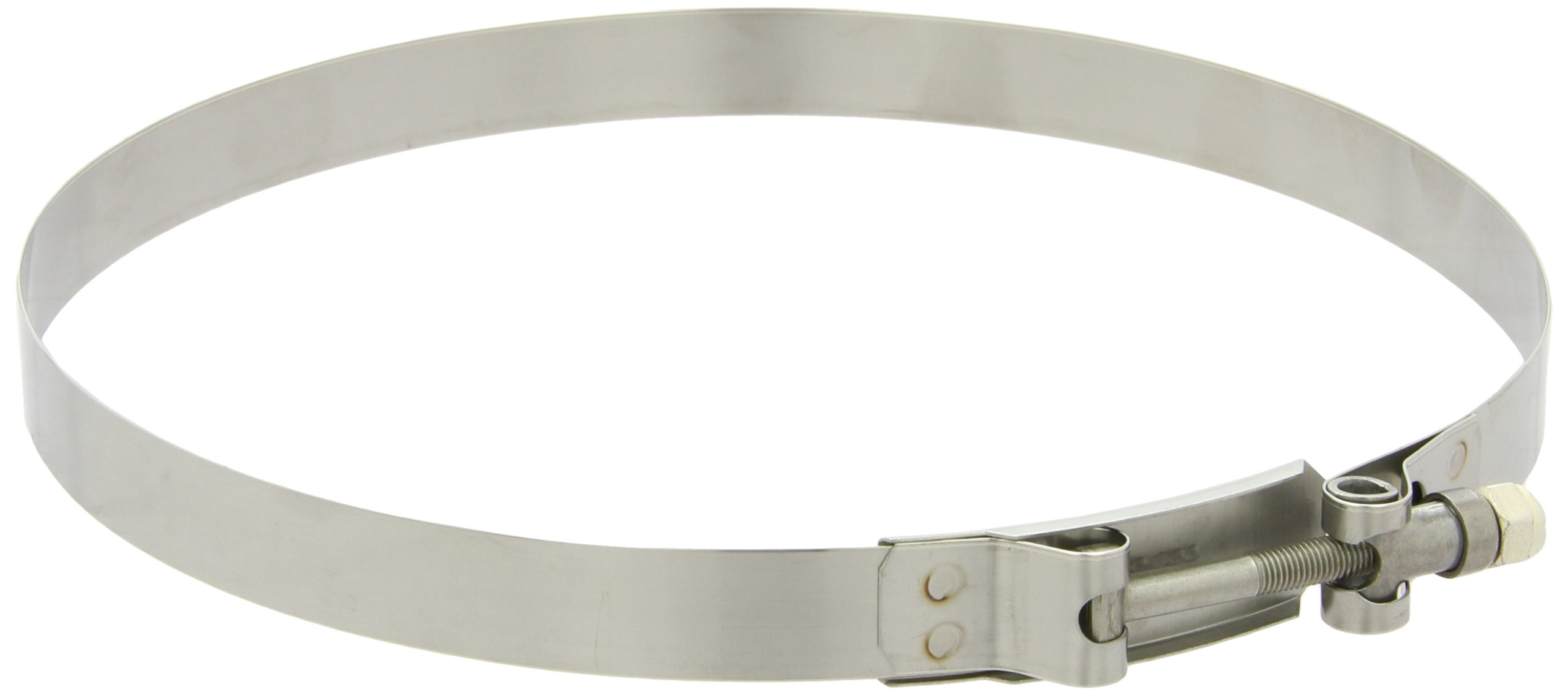

Ideal-Tridon 30021 Series Stainless Steel 300 T-Bolt Channel Bridge Hose Clamp, Heavy Duty

Be the first to review this item

Product Specifications
Manufacturer Series Number
30021
Item Shape
T-Bolt
Grade
300
Material Type
Stainless Steel
UNSPSC Code
31162906
Brand Name
Ideal-Tridon
Special Features
Heavy Duty

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 19 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 39 Next 19 »
SAE Size Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 39 Next 19 »
  35.1 mm 38.6 mm 3/4" 10 300210138051 B008Z63MP6 yes $38.79 Buy Options
  38.1 mm 41.7 mm 3/4" 10 300210150051 B008Z63NBO yes $81.55 Buy Options
  41.4 mm 46 mm 3/4" 10 300210163051 B008Z63NXC yes $41.72 Buy Options
100 101.6 mm 109.5 mm 3/4" 10 300210400051 B008Z640I4 yes $59.94 Buy Options
108 108 mm 115.8 mm 3/4" 10 300210425051 B008Z6413S yes $53.75 Buy Options
116 114.3 mm 122.2 mm 3/4" 10 300210450051 B008Z641QU yes $21.30 Buy Options
124 120.7 mm 128.5 mm 3/4" 10 300210475051 B008Z642EG yes $54.47 Buy Options
132 127 mm 134.9 mm 3/4" 10 300210500051 B008Z6433Q yes $16.91 Buy Options
140 133.4 mm 141.2 mm 3/4" 10 300210525051 B008Z643QI yes $18.33 Buy Options
148 139.7 mm 147.6 mm 3/4" 10 300210550051 B008Z644D0 yes $55.48 Buy Options
156 146.1 mm 153.9 mm 3/4" 10 300210575051 B008Z644SK yes $22.43 Buy Options
164 152.4 mm 160.3 mm 3/4" 10 300210600051 B008Z645NE yes $22.31 Buy Options
172 158.8 mm 166.6 mm 3/4" 10 300210625051 B008Z646G0 yes $22.93 Buy Options
180 165.1 mm 173 mm 3/4" 10 300210650051 B008Z647CI yes $24.22 Buy Options
188 171.5 mm 179.3 mm 3/4" 10 300210675051 B008Z64836 yes $27.67 Buy Options
196 177.8 mm 185.7 mm 3/4" 10 300210700051 B008Z648MW yes $23.33 Buy Options
204 184.2 mm 192 mm 3/4" 10 300210725051 B008Z649DA yes $26.52 Buy Options
212 190.5 mm 198.4 mm 3/4" 10 300210750051 B008Z64ABG yes $36.01 Buy Options
220 196.9 mm 204.7 mm 3/4" 10 300210775051 B008Z64AY8 yes $25.46 Buy Options
228 203.2 mm 211.1 mm 3/4" 10 300210800051 B008Z64BLK yes $36.89 Buy Options

Key Features

  • All 300 Grade Stainless Steel series.
  • T-Bolt Channel Bridge Design
  • Installation torque for all standard and channel bridge T-bolts is 75.0 in-lb/8.5 Nm

Product Description

Heavy duty T-bolt clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. Channel bridge provide added rigid bridge liner to help prevent leak paths in more demanding applications. Typical applications include truck air intake systems, cold side charge air systems and industrial equipment and machinery. Ideal 30021 Series/Tridon 810 Series: All 300 Grade Stainless Steel series.
