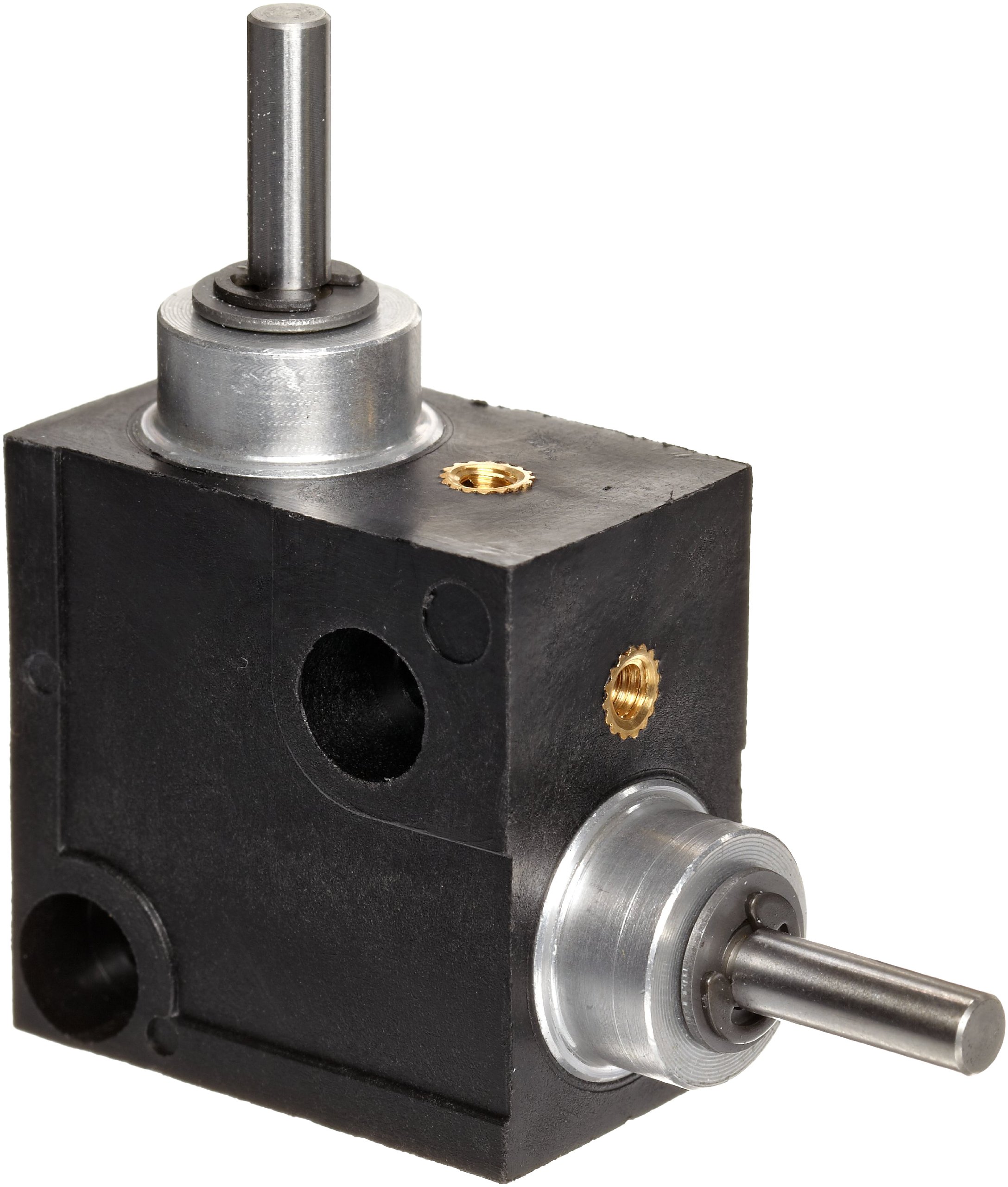

Huco L-Box Miniature Right Angle Gearbox, Acetal Case, Inch

Be the first to review this item

Product Specifications
Material Type
Acetal
UNSPSC Code
25173800
Brand Name
Huco
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 11 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
332.31.2.Z B004HW6ZME yes $39.87 Buy Options
333.31.3.Z B004HW6ZN8 yes $26.34 Buy Options

Key Features

  • Hardened steel shafts for strength and durability
  • Sintered bronze bearing system for durability and resistance to corrosion
  • Acetal gears molded to steel shafts are lightweight and durable for low-friction performance
  • Electrical isolation between shafts and Acetal housing to prevent electrical arcing and circuit shortages
  • Two counterbored clearance holes on case for conventional chassis mounting

Product Description

This Huco L-Box miniature right angle gearbox has an Acetal case to provide electrical isolation between the shafts and the housing to prevent electrical arcing and circuit shortages. The shafts are hardened steel for strength and durability, and the bearings are sintered bronze for durability and resistance to corrosion. Lightweight Acetal gears are molded to the shafts and provide durable, low-friction performance. This miniature right angle gearbox can operate in temperatures ranging from -4 to 140 degrees F (-20 to 60 degrees C), and is lubricated for life at manufacture. The case has two counter-bored clearance holes for conventional chassis mounting, and each shaft has a tapped insert below it for vertical mounting. This Huco L-Box miniature right angle gearbox is for intermittent use and is suitable for manual and short term drive applications such as in medical and pharmaceutical equipment, semi-conductor scenarios, and other miniature mechatronic applications.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Huco Dynatork manufactures couplings, piston air motors, brakes, clutches, gear boxes and other transmission products. The company, founded in 1965, meets the quality assurance standards of the British Standards Institution (BSI), the International Organization for Standardization (ISO) and the Deutsches Institut für Normung (DIN), and is based in Hertfordshire, England.
