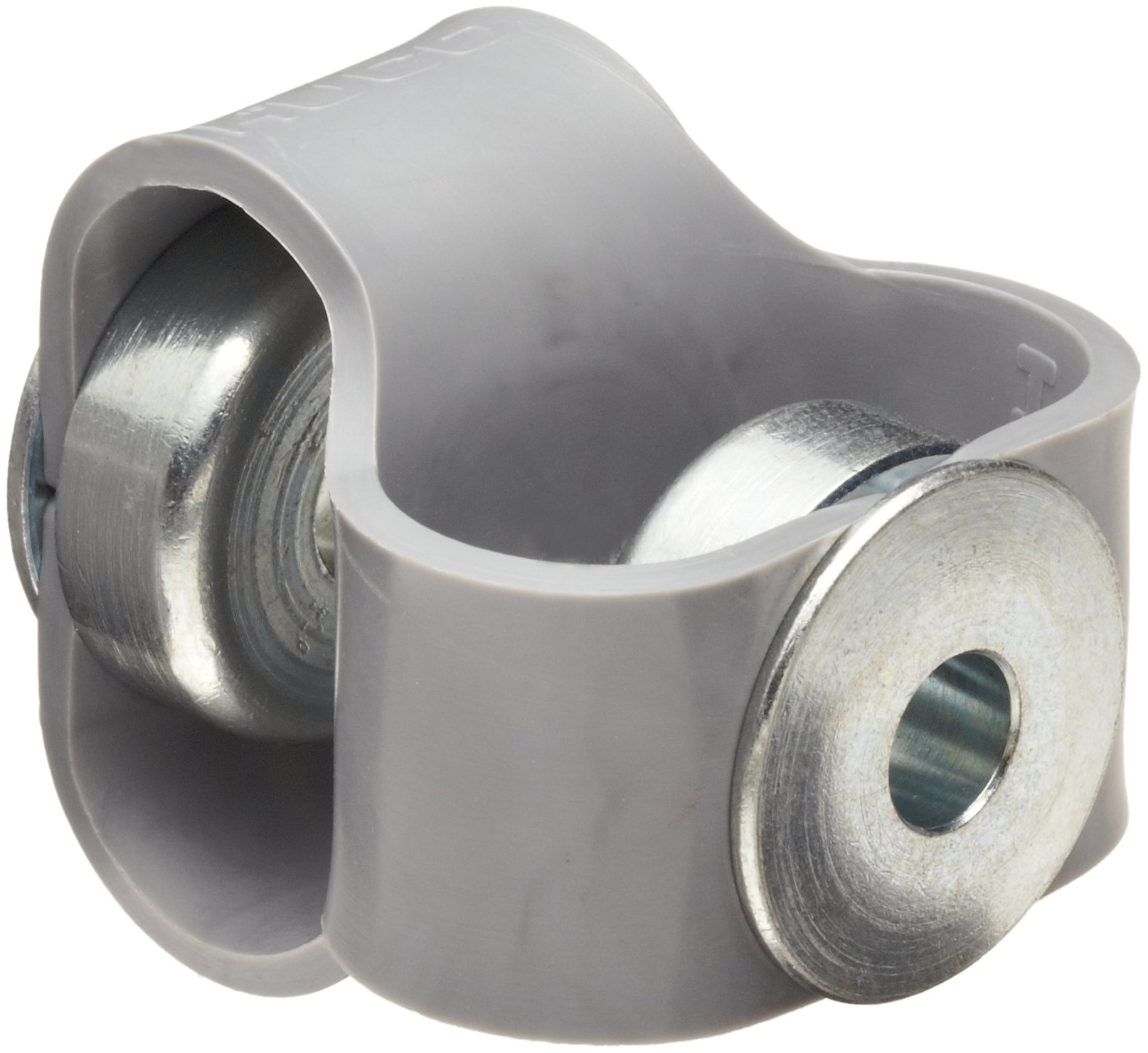

Huco Flex-P Double Loop Elastomer Coupling, Hytrel with Steel Hubs, Inch

Be the first to review this item

Product Specifications
Material Type
Rubber
UNSPSC Code
31163021
Brand Name
Huco
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 22 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Mfr Part # Coupling Size Bore A Diameter Bore B Diameter Outside Diameter Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-7 of 7
047.10.2222.Z 10 0.236" 0.236" 0.39" 1.06" B004HW6ZGA yes $20.85 Buy Options
047.10.2424.Z 10 0.25" 0.25" 0.39" 1.06" B004HW6ZH4 yes $20.85 Buy Options
047.20.2222.Z 20 0.236" 0.236" 0.79" 1.89" B004HW6ZHO yes $8.33 Buy Options
047.20.2828.Z 20 0.315" 0.315" 0.79" 1.89" B004HW6ZII yes $22.78 Buy Options
047.20.3232.Z 20 0.394" 0.394" 0.79" 1.89" B004HW6ZJC yes $25.69 Buy Options
047.30.3535.Z 30 0.472" 0.472" 1.18" 2.17" B004HW6ZK6 yes $7.61 Buy Options
047.40.4242.Z 40 0.63" 0.63" 1.57" 2.2" B004HW6ZLA Usually ships in 5 to 7 weeks $28.25 Buy Options

Key Features

  • Thermoplastic polyester elastomer double loop element for strength, flexibility and heat resistance
  • Double loop flexing element accommodates angular, radial and axial misalignment to address a variety of misalignment scenarios
  • Hubs and fasteners are steel alloy for strength and durability
  • Operating temperatures range from -40 to 212 degrees F (-40 to 100 degrees C)
  • For transmitting rotation in small drive applications that only require standard tolerances

Product Description

This Huco Flex-P double loop elastomer coupling has a double loop element made of a thermoplastic polyester elastomer (Hytrel) for strength, flexibility and heat resistance. This flexible element can accommodate angular, radial and axial misalignment to address a variety of misalignment scenarios. The hubs and fasteners are steel alloy for strength and durability. This double loop elastomer coupling can operate in temperatures ranging from -40 to 212 degrees F (-40 to 100 degrees C), supports up to 3000 revolutions per minute, and is for transmitting rotation in small drive applications that do not require precise tolerances. The coupling is suitable for use with small generators, pumps, and light power drives, among others.

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Huco Dynatork manufactures couplings, piston air motors, brakes, clutches, gear boxes and other transmission products. The company, founded in 1965, meets the quality assurance standards of the British Standards Institution (BSI), the International Organization for Standardization (ISO) and the Deutsches Institut für Normung (DIN), and is based in Hertfordshire, England.
