Hobart 500551 EZ TIG 165i 230-Volt Inverter-Based AC/DC Welder

Be the first to review this item

ASIN B0035FNZOU

Specifications for this item
Part Number
500551
UPC
715959418294
Brand Name
Hobart
EAN
0715959418294
Voltage
151.00  Volts
UNSPSC Code
23271700

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 11 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Offers a unique single knob control
  • Easiest AC/DC TIG welder to set up and use
  • It has superior weld performance

Package Details

Shipping Weight: 62.65 pounds
Package Size: 27 x 21 x 14 inches

Product Description

Hobart 500551 EZ TIG 165i 230-Volt Inverter-Based AC/DC Welder

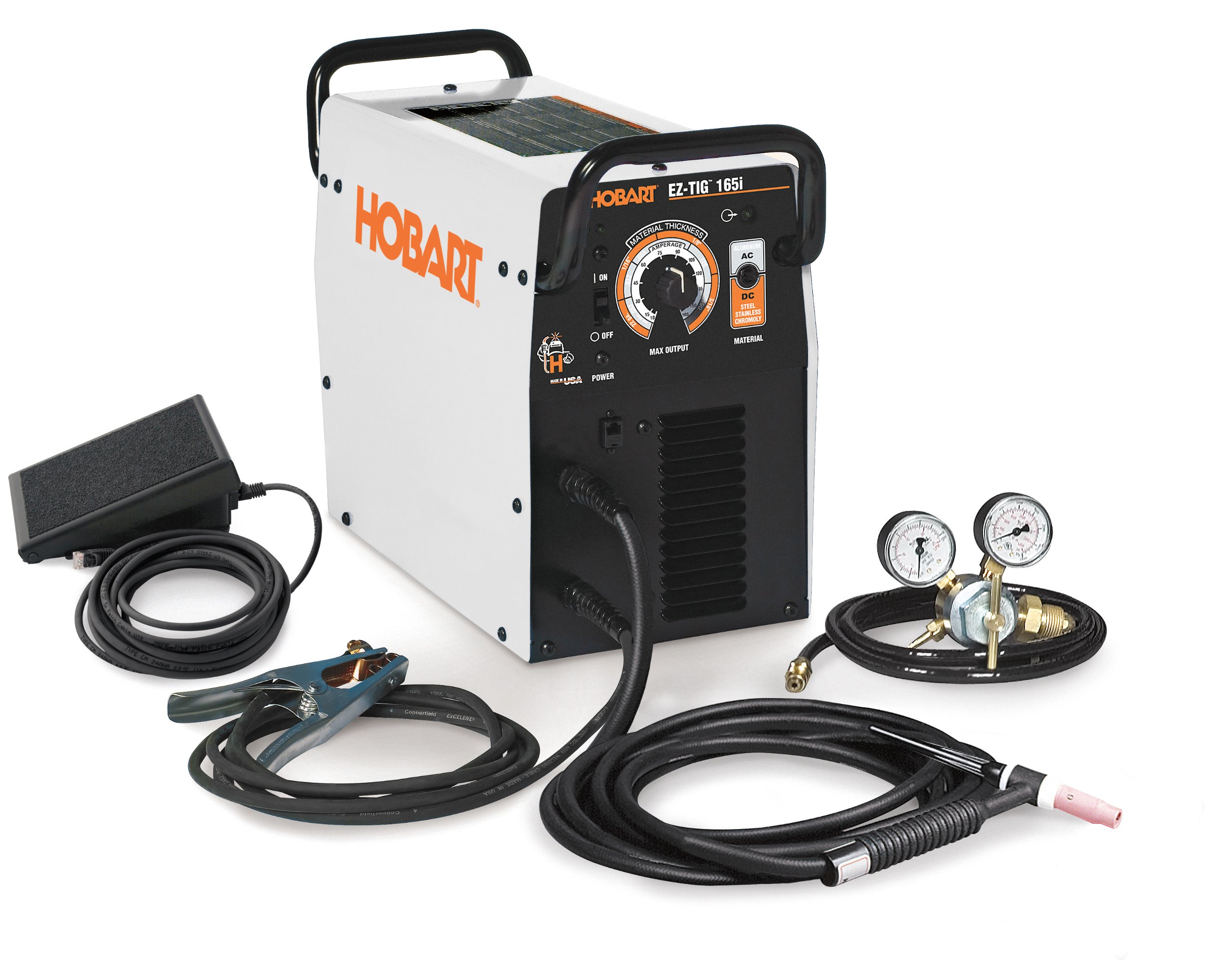

HOBART EZ-TIG 165i AC/DC TIG Welder shown with included items
EZ-TIG 165i Front Control Panel
View larger
HOBART EZ-TIG 165i TIG Welder

The EZ-TIG 165i is a complete 230V AC/DC welding package that offers a unique single knob control making it the quickest and easiest AC/DC TIG welder to set up and use. It has superior weld performance from 22 gauge to 3/16 in. (.81 mm to 4.8 mm) in both AC (aluminum) and DC (steel/stainless steel/chromoly).

Easy to Set-up and Use

Just plug it into 230 VAC, connect the shielding gas, select the material and thickness, and you are ready to weld. The EZ-TIG 165i is a light weight inverter-based design that includes two carry handles for easy portability.

What's Included in the Box?

EZ-TIG 165i inverter-based power source with primary cord and plug attached, 12.5 ft (3.8 m) Legacy 17 Weldcraft TIG torch, foot-operated control using the RFCS-RJ45 Remote Foot Control, 12 ft. (3.7 m) work cable with clamp, gas regulator/flowmeter and shielding gas hose, and owners manual.


EZ-TIG 165i Features:
  • EZ to use interface with one knob and one switch control
  • AC output for superior aluminum welding, DC output for mild and stainless steel
  • Fan-On-Demand to only have the fan run when needed reducing dust/debris being pulled into the unit
  • Infinite amperage control for broader operating range with finer control
  • Inverter-based power source provides a more consistent welding arc while using less power
  • Weighs only 50 lb. (23 kg) so it's "EZ" to take anywhere
  • HF start to allow for a non-contact arc start to eliminate tungsten and material contamination
  • Auto-postflow to provide optimum shielding based on welding amperage without waste or need for adjustment
  • Automatic high temperature shutdown
  • Remote amperage control using the included foot control (hand control optional)
  • Each unit is designed and manufactured in Appleton, WI USA.
  • Hobart 5/3/1 Warranty

From the Manufacturer

The EZ-TIG 165i is a complete 230V AC/DC welding package that offers a unique single knob control making it the quickest and easiest AC/DC TIG welder to set up and use. Just plug it into 230 VAC, connect the gas, select the material and thickness, and you are ready to weld. It has superior weld performance from 22 gauge to 3/16 in. (.81 mm to 4.8 mm) in both AC (aluminum) and DC (steel/stainless steel/chromoly). The EZ-TIG 165i is a light weight inverter-based design that includes a foot control.
