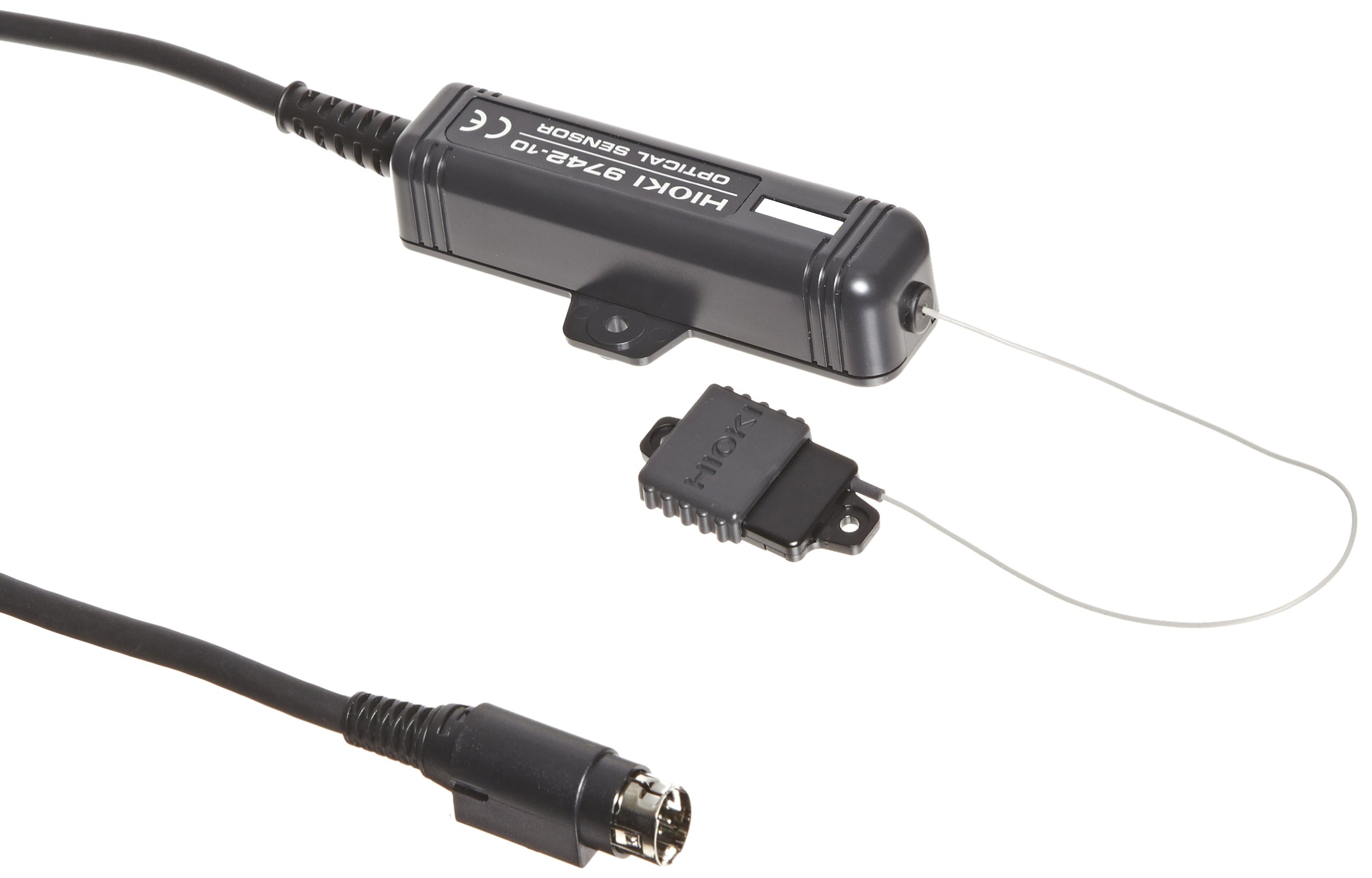

Hioki 9742-10 Detachable Optical Sensor, 320nm to 1100nm Range

Be the first to review this item

ASIN B008S0MLV0

Specifications for this item
Number of Items
1
Overall Height
84  millimeters
Overall Width
40  millimeters
Part Number
9742-10
Item Depth
18 millimeters
Brand Name
Hioki
Maximum Measurement
320nm to 1100nm
UNSPSC Code
41111900

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 15 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurable wavelength: 320nm to 1100nm
  • Measurable power: -59dBm to +17dBm (at the calibration wavelength)
  • Maximum rated measurable power: 50mW (+17dBm) (at all direction irradiation)
  • Optic receptacle element: Si photo-diode
  • Measures: 40mm width by 84mm height by 18mm depth

Package Details

Shipping Weight: 0.75 pounds
Package Size: 8.5 x 6.2 x 2.5 inches

Product Description

Measurable wavelength: 320nm to 1100nm. Measurable power: -59dBm to +17dBm (at the calibration wavelength). Maximum rated measurable power: 50mW (+17dBm) (at all direction irradiation). Optic receptacle element: Si photo-diode. Receptacle dimensions: 9.6mm by 9.6mm. Measurement accuracy: +/-4.3 percent (±5 percent in combination with 3664). [Calibration conditions] Calibration wavelength: 633nm, calibration power: 100mw, f2mm parallel beam, perpendicular input to the center of optical sensor, by cw light. Wavelength initial setting: 633nm, 635nm, 650nm, 780nm. Measures: 40mm width by 84mm height by 18mm depth.
