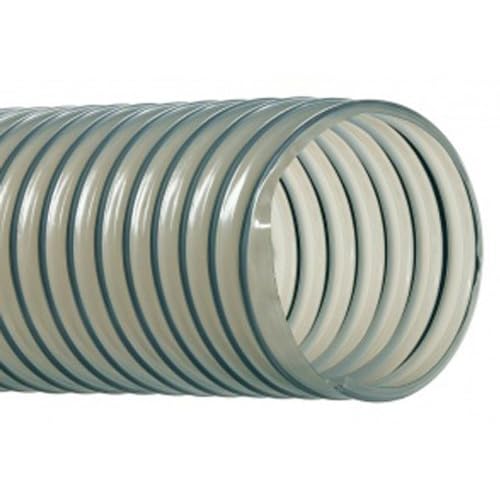

Hi-Tech Duravent Vac-U-Flex TPU Series Polyurethane Vacuum Hose, Clear, 1-1/4" ID, 1-3/8" OD, 25' Length

Be the first to review this item

ASIN B008XRCSFM

Product Specifications
Part Number
3380125000160
Outside Diameter
1-3/8  inches
Inside Diameter
1-1/4  inches
Overall Length
25  feet
Max Pressure
13  PSI
Upper Temperature Range
200  Degrees Fahrenheit
Maximum Vacuum Pressure
28  in Hg
Pkg Qty
1
Specification for this product family (See all  products)
Manufacturer Series Number
Vac-U-Flex TPU
Material Type
Polyurethane
Color Name
Clear
UNSPSC Code
40142016
Brand Name
Hi-Tech Duravent
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 22 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose for material handling, vacuum and suction, or exhaust and ventilation applications
  • Hose made of two-ply TPU for low-temperature flexibility and resistance to chemicals, oil, moisture, and puncturing
  • Coated spring steel wire helix reinforcement for strength and resistance to crushing
  • Temperature range of -40 to +200 degrees F (-40 to +93 degrees C)
  • Can be used with a variety of coupling options (not included)

Package Details

Shipping Weight: 3.13 pounds
Package Size: 300 x 1.25 x 1.25 inches

Product Description

This Hi-Tech Duravent Vac-U-Flex TPU series vacuum hose is made with two plies of clear TPU (thermoplastic polyurethane) for low-temperature flexibility and resistance to chemicals, oil, moisture, and puncturing, and is suitable for material handling, vacuum and suction, or exhaust and ventilation applications. The hose is reinforced with a coated spring steel wire helix for strength and resistance to crushing. It has a temperature range of -40 to +200 degrees F (-40 to +93 degrees C) and can be used with a variety of coupling options (not included). This vacuum hose is suitable for ventilation and transferring a range of materials in chemical plants, paper mills, metal fabrication, and other industries.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Hi-Tech Duravent manufactures flexible hose and ducting for air, fume, and dust collection applications. The company, founded in 1947 as Flexible Technologies, is headquartered in Abbeville, SC.
