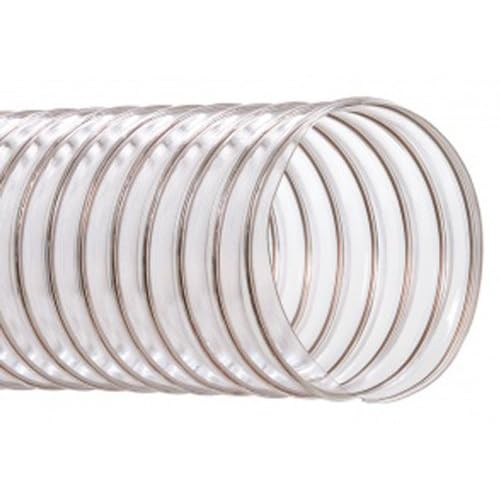

Hi-Tech Duravent CVD Series PVC Duct Hose, Wire Reinforced, Clear, 2" ID, 25' Length

Be the first to review this item

ASIN B008XQV9SK

Product Specifications
Part Number
202102002025
Inside Diameter
2  inches
Overall Length
25  feet
Max Pressure
18  PSI
Maximum Vacuum Pressure
20  in Hg
Pkg Qty
1
Specification for this product family (See all  products)
Manufacturer Series Number
CVD
Upper Temperature Range
180  Degrees Fahrenheit
Material Type
PVC (Polyvinyl Chloride)
Color Name
Clear
Brand Name
Hi-Tech Duravent
LowerTemperature Range
-20  Degrees Fahrenheit
Price:
$71.22
Quantity:

In Stock (3)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 1 day 9 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose for material handling, transferring food and beverage material, or exhaust and ventilation applications
  • Hose made of FDA-approved PVC for resistance to chemicals, oil, and abrasion
  • Wire helix reinforcement for strength and resistance to crushing
  • Temperature range of -20 to +180 degrees F (-29 to +82 degrees C)
  • Can be used with a variety of coupling options (not included)

Package Details

Shipping Weight: 8.05 pounds
Package Size: 22 x 20 x 10.4 inches

Product Description

This Hi-Tech Duravent CVD series duct hose is made of clear PVC (polyvinyl chloride) for resistance to chemicals, oil, and abrasion, and is suitable for material handling, transferring food and beverage material, or exhaust and ventilation applications. It is made with Food and Drug Administration (FDA)-approved PVC and reinforced with a wire helix for strength and resistance to crushing. It has a temperature range of -20 to +180 degrees F (-29 to +82 degrees C) and can be used with a variety of coupling options (not included). This duct hose is suitable for ventilation and transferring a range of materials in chemical plants, flour and grain mills, computer chip manufacturing, and other industries.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Hi-Tech Duravent manufactures flexible hose and ducting for air, fume, and dust collection applications. The company, founded in 1947 as Flexible Technologies, is headquartered in Abbeville, SC.
