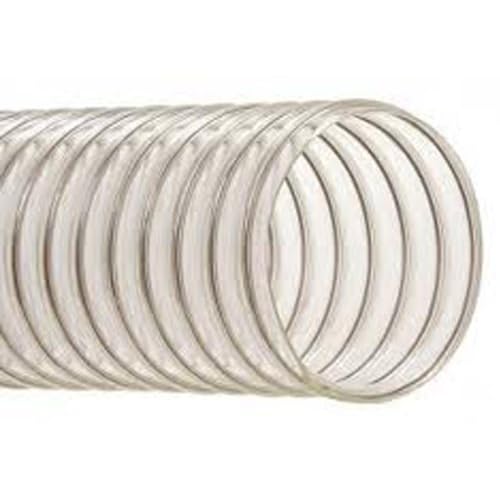

Hi-Tech Duravent EH-M Heavy-Duty Series PVC Vacuum Duct Hose, Clear, 2" ID, 2-1/2" OD, 25' Length

Be the first to review this item


Product Specifications
Connector Type
Hose only
Inside Diameter
2  inches
Maximum Bend Radius
n/a inches
Maximum Pressure
26  PSI
Maximum Vacuum Pressure
25  in Hg
Number of Items
Outside Diameter
2-1/2  inches
Outside Diameter
2-1/2  inches
Overall Length
25  feet
Part Number
Specification for this product family (See all  products)
Manufacturer Series Number
EH-M Heavy-Duty
Upper Temperature Range
150  Degrees Fahrenheit
Material Type
PVC (Polyvinyl Chloride)
Color Name
Brand Name
Hi-Tech Duravent
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Hose for material handling, vacuum and suction, or exhaust and ventilation applications
  • Tube made of PVC film and cover made of a polymer helix to achieve a 0.30 wall thickness for resistance to oil, moisture, and drag
  • Polymer helix cover is self-reinforcing
  • Temperature range of -20 to +150 degrees F (-29 to +66 degrees C)
  • Can be used with a variety of coupling options (not included)

Package Details

Shipping Weight: 8.15 pounds
Package Size: 16.8 x 16.8 x 16 inches

Product Description

This Hi-Tech Duravent EH-M Heavy-Duty series PVC vacuum duct hose is made of clear PVC (polyvinyl chloride) with an external polymer cover and reinforcement to achieve a wall thickness of 0.30" for resistance to oil, moisture, and drag. It is suitable for material handling, vacuum and suction, or exhaust and ventilation applications. Its polymer helix cover is self-reinforcing. It has a temperature range of -20 to +150 degrees F (-29 to +66 degrees C) and can be used with a variety of coupling options (not included). This vacuum duct hose is suitable for ventilation, use as conduit, or for transferring a range of materials in flour and grain mills, RV manufacturing, and other industries.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Hi-Tech Duravent manufactures flexible hose and ducting for air, fume, and dust collection applications. The company, founded in 1947 as Flexible Technologies, is headquartered in Abbeville, SC.
