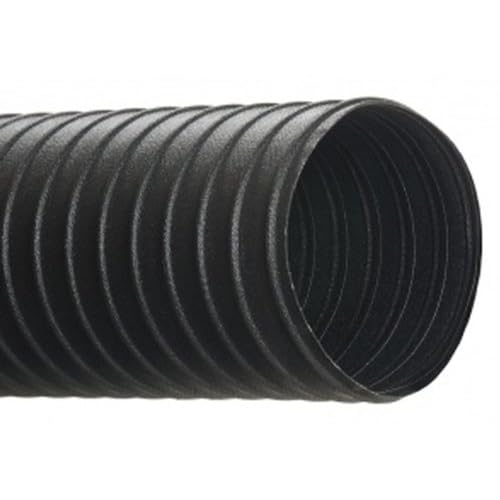

Hi-Tech Duravent C General Duty Series Neoprene Coated Fabric & Steel Duct Hose, for Use with Air, Black, 4" ID, 25' Length

Be the first to review this item

ASIN B008XQSY06

Product Specifications
Part Number
11100400000260
Inside Diameter
4  inches
Overall Length
25  feet
Max Pressure
25  PSI
Maximum Vacuum Pressure
22  in Hg
Pkg Qty
1
Specification for this product family (See all  products)
Manufacturer Series Number
C General Duty
Upper Temperature Range
250  Degrees Fahrenheit
Material Type
Steel
Color Name
Black
Brand Name
Hi-Tech Duravent
LowerTemperature Range
-40  Degrees Fahrenheit
Price:
$259.36
Quantity:

Currently Unavailable We don't know when or if this item will be back in stock.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose for material handling, vacuum and suction, and exhaust and ventilation applications that require flame resistance
  • Hose made of two-ply neoprene-coated polyester for resistance to chemicals, flame, and puncturing
  • Wire helix reinforcement for strength and resistance to crushing
  • Temperature range of -40 to +250 degrees F (-40 to +121 degrees C)
  • Can be used with a variety of coupling options (not included)

Product Description

This Hi-Tech Duravent C General Duty series duct hose is made with two plies of neoprene-coated polyester for resistance to chemicals, flame, and puncturing, and is suitable for material handling, vacuum and suction, and exhaust and ventilation applications that require flame resistance. The hose is reinforced with a wire helix for strength and resistance to crushing and meets Underwriters Laboratories (UL) standard UL94 V-0 for flame resistance. It has a temperature range of -40 to +250 degrees F (-40 to +121 degrees C) and can be used with a variety of coupling options (not included). This duct hose is suitable for ventilation or transferring a range of materials in foundries, ship yards, welding shops, and other industrial settings.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Hi-Tech Duravent manufactures flexible hose and ducting for air, fume, and dust collection applications. The company, founded in 1947 as Flexible Technologies, is headquartered in Abbeville, SC.
