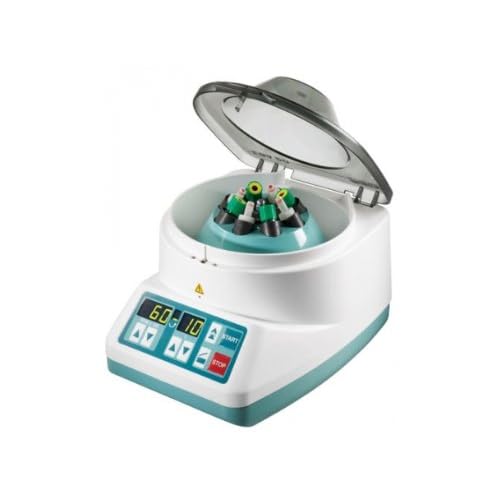

Hettich 2080-01 EBA 20S Small Centrifuge with Open Lid Key, 216 x 231x 292mm (H x W x D), 1 to 99 min, 8000 rpm, 8 x 15mL Tubes Rotor

Be the first to review this item

ASIN B008V0U0DI

Specifications for this item
Number of Items
1
Overall Height
8-1/2  inches
Overall Width
9-3/32  inches
Part Number
2080-01
Brand Name
Hettich
Maximum Speed
8000  RPM
UNSPSC Code
41103903

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 21 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Variable-speed centrifuge with speeds ranging from 500 to 8,000 rpm
  • Comes with an 8-place 33-degree fixed-angle rotor
  • Accepts a wide variety of commercial tubes, including glass tubes, without an adapter
  • Timer from 1 to 99 minutes for data accuracy
  • Suitable for use in an emergency medical laboratory for quick spins of blood or urine samples

Package Details

Shipping Weight: 18.7 pounds
Package Size: 15.5 x 13.5 x 12 inches

Product Description

The Hettich EBA 20S centrifuge is a variable-speed centrifuge with speeds ranging from 500 to 8,000 rpm. This centrifuge comes with an 8-place 33-degree fixed-angle rotor. The unit accepts a wide variety of commercial tubes, including glass tubes, without an adapter. It includes a timer from 1 to 99 minutes for data accuracy. This centrifuge is designed to be used in an emergency medical laboratory for quick spins of blood or urine samples.

This centrifuge is non-refrigerated and does not have temperature control features.

Specifications

Maximum speed8,000 revolutions per minute (rpm), variable
Maximum relative centrifugal force (rcf)6,153xG
Timer1 to 99 minutes
Maximum noise level≤57dBA
Power100-127V 50-60Hz
WeightApproximately 6kg
Dimensions216 x 231x 292mm (H x W x D)
Rotor8-place 33-degree fixed-angle rotor
Rotor maximum capacity8 x 15mL tubes

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

A centrifuge is used to spin fluids of different densities to separate various parts, commonly blood and DNA samples. Centrifuges are composed of the main body or housing and a spinning rotor. Tubes of cellular material suspended in liquid are inserted into the rotor and spun at various speeds to separate components. Centrifuges are used in medical, industrial, and research laboratories, as well as academic and clinical settings.

Andreas Hettich GmbH & Co.KG (Hettich), is a manufacturer of clinical and research centrifuges. The company is headquartered in Tuttlingen, Germany. The US subsidiary, Hettich Instruments, is located in Beverly, MA.

What’s in the Box?
  • Hettich EBA 20S centrifuge (#2080-01)
  • Rotor (#E1624)
  • Power cable
  • (2) Fuses
  • (2) Carbon brushes
  • Instructions
