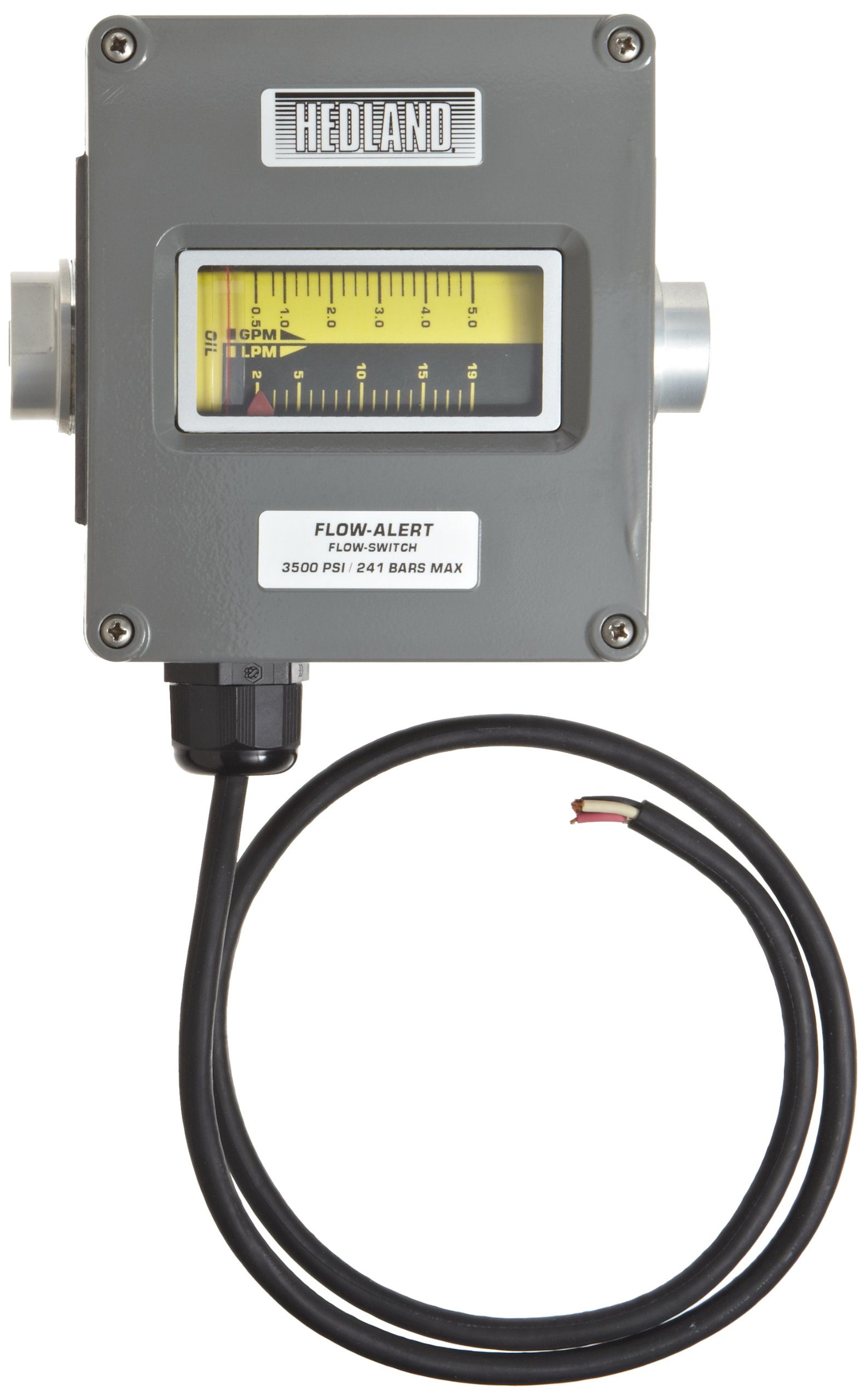

Hedland H601A-005-F1 Flow Alert, Aluminum, For Use With Oil and Petroleum Fluids, 0.5 - 5.0 gpm Flow Range, 1/2" NPT Female

Be the first to review this item

ASIN B005K2MMHC

Specifications for this item
Minimum Flow Rate
0.5  Gallons per Minute
Part Number
H601A-005-F1
Brand Name
Hedland
Measurement Accuracy
+/- 2%
Maximum Flow Rate
5  Gallons per Minute
Number of Items
1
For Use With Product Type
Oil and Petroleum Fluids
Material Type
Aluminum
Temperature Range
-20 to +400  Degrees Fahrenheit
Size Name
1/2"
Upper Temperature Range
400  Degrees Fahrenheit
Mounting Type
Versa-Mount
Maximum Pressure
3500  PSI
Connector Type
NPT Female
UNSPSC Code
41112501
Overall Length
6.6  inches
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 18 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 4.25 pounds
Package Size: 9.5 x 8.2 x 4.9 inches

Product Description

Flow-Alert Flow Switches (Micro Switch) For Liquid. Automatically signals alarm if flow is too high or too low. Automatically opens or closes electrical circuits. Triggers warning lights, buzzers and other devices. Shuts down pumps and/or other equipment to protect your operation against permanent damage. Available from 1/4" to 1-1/2" sizes in aluminum, brass and stainless. Installs in any position. Easier-to-read linear scale No flow straighteners or special piping requirements. Relatively insensitive to shock and vibration. Special scales available. Materials: 2024 - T351 Anodized aluminum body, piston and cone. Petroleum (oil) common parts are Spider Plate: T316 SS, Spring: T302 SS, Fasteners: T303 SS, Pressure Seals: Viton, Lens: Polycarbonate, Retaining Ring: SAE 1070/1090 Carbon Steel, Retaining Spring: SAE 1070/1090 Carbon Steel, Indicator and Internal Magnet: PPS / Ceramic, Enclosure Seal: Silicone gasket, Scale Support: 6063 - T6 Aluminum. One (1) Switch 4-wire cable are Red: Normally Closed (NC), Black: Normally Open (NO), White: Common (COM), Green: Ground.
