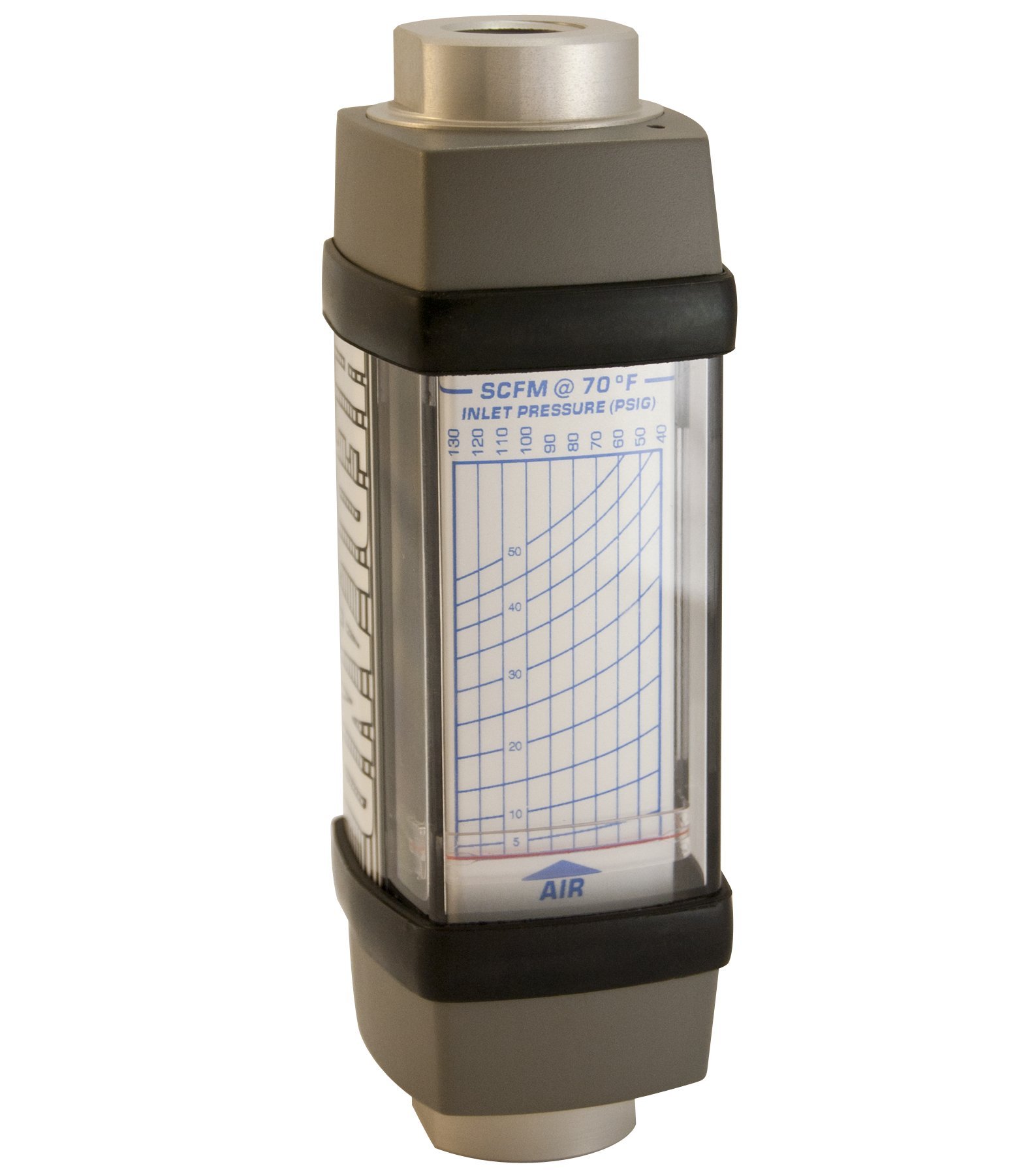

Hedland Flowmeter, Aluminum, For Use With Air and Other Compressed Gases, NPT Female

Be the first to review this item

Product Specifications
For Use With Product Type
Air and Other Compressed Gases
Material Type
Aluminum
Temperature Range
-20 to +400  Degrees Fahrenheit
Brand Name
Hedland
Upper Temperature Range
400  Degrees Fahrenheit
Mounting Type
Versa-Mount
Maximum Pressure
1000  PSI
Connector Type
NPT Female
UNSPSC Code
41112501
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 4 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-5 of 5
10-100 scfm 1/2" NPT Female B00481MEGK yes $193.00 Buy Options
10-100 scfm 3/4" NPT Female B00481RFAU yes $275.37 Buy Options
25-250 scfm 3/4" NPT Female B00481MFSW yes $275.38 Buy Options
3-25 scfm 1/2" NPT Female B00481QACO yes $207.00 Buy Options
5-50 scfm 1/2" NPT Female B00481T99U yes $194.29 Buy Options

Product Description

Flow Meter For Air and Other Compressed Gases. Direct reading. Install in any position. 360 degrees rotatable guard/scale. Easier-to-read linear scale. No flow straighteners or special piping required. Relatively insensitive to shock and vibration. Good viscosity stability. Temperature up to 240 degrees F. Accuracy +/-2 percent full scale. Repeatability +/-1 percent. Special scales available. Calibrated for 1.0 S.G. Materials: 2024 - T351 Anodized aluminum body, piston and cone. Common parts are Spider Plate: T316 SS, Spring: T302 SS, Fasteners: T303 SS, Pressure Seals: Viton, Guard: Polycarbonate, Retaining Ring: T316 SS, Retaining Spring: T316 SS, Indicator and Internal Magnet: PPS / Ceramic, Guard Seal / Bumper: Buna N, Scale Support: 6063 - T6 Aluminum and End Caps: Nylon ST.
