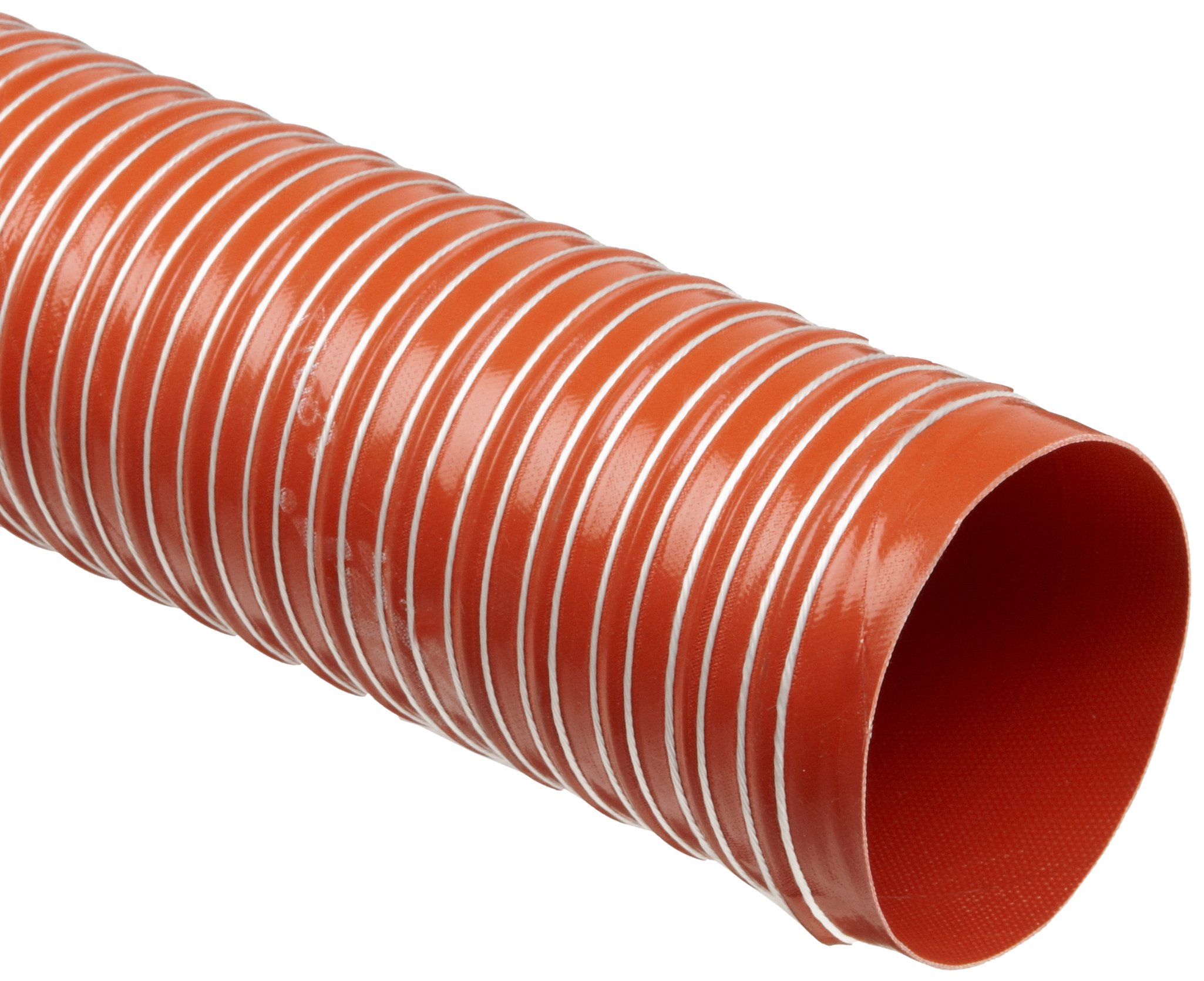

Heat-Flex GS Fiberglass Duct Hose, Iron Oxide Red, For Use With Air, Fume

Be the first to review this item

Product Specifications
For Use With Product Type
Air, Fume
Color Name
Red
Material Type
Fiberglass
Outside Diameter
n/a  inches
Temperature Range
-65 to 550  Degrees Fahrenheit
Brand Name
Flexaust
Manufacturer Series Number
Heat-Flex GS
Compatible Material
Air , Fume
Upper Temperature Range
550  Degrees Fahrenheit
Reinforcement Material
Steel
Wall Thickness
n/a  inches
UNSPSC Code
40142019
Style Name
Flexible
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 5 hrs 15 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Inside Diameter Bend Radius Max Pressure Overall Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-12 of 12
1.25"   30 PSI 12 ft 1 B0050IK3K4 yes $81.11 Buy Options
1.5" 1.8 30 PSI 12 ft 1 B0050IK3UO yes $91.23 Buy Options
1.75"   29 PSI 12 ft 1 B0050IK43U yes $98.78 Buy Options
2.5" 2.3 30 PSI 12 ft 1 B0050IK4P8 yes $122.55 Buy Options
3" 2.5 30 PSI 12 ft 1 B0050IK4W6 yes $117.67 Buy Options
4" 3 30 PSI 12 ft 1 B0050IK5AC yes $147.19 Buy Options
5" 3.5 30 PSI 12 ft 1 B0050IK5HK yes $175.91 Buy Options
6" 4 19 PSI 12 ft 1 B0050IK5TS yes $200.41 Buy Options
7" 4 16 PSI 12 ft 1 B0050IK63I yes $129.07 Buy Options
8" 4 14 PSI 12 ft 1 B0050IK6EM yes $270.83 Buy Options
10" 5 11 PSI 12 ft 1 B0050IK6O2 yes $309.60 Buy Options
12" 5 9.4 PSI 12 ft 1 B0050IK6YC yes $422.26 Buy Options

Key Features

  • Duct hose for brake ducting, garage exhaust, and other high temperature ventilation and fume extraction applications
  • Double-ply, iron-oxide red, silicone-coated fiberglass fabric, reinforced with a spring steel wire helix and external filament fiberglass cord, is resistant to water, fungus, ozone, alkalis, oils, and solvents
  • Very flexible and highly compressible for easy installation
  • Suitable for applications with temperatures up to 550 degrees F, such as brake ducting and vehicle exhaust
  • Will not kink

Product Description

The Flexaust Heat-Flex GS fiberglass duct hose, used for high temperature ventilation and fume exhaust applications, is an iron-oxide red, silicone-coated, double-ply fiberglass fabric hose, reinforced with a spring steel wire helix and external filament fiberglass cord. It resists water, fungus, ozone, alkalis, and a wide range of oils and solvents, and is very flexible and highly compressible for easy installation. A temperature range of -65 to 550 degrees F makes it suitable for applications such as garage exhaust, rocket support, transmission cooling, and hot air drying systems. This non-kinking fiberglass duct hose has a narrow-pitch helix to allow a short bend radius while maintaining efficient flow.

Duct hoses are flexible or rigid tubes that convey gases, liquids, and lightweight bulk materials from one location to another. They are made from an array of materials that range from polyurethane and thermoplastic rubber, to PVC and aluminum-coated fiberglass fabric, and are typically reinforced with a steel wire or rigid plastic helix, also known as a “spiral.” Duct hoses are secured with hose clamps or U-bolts, and two pieces of hose are joined with a hose connector. Common applications for duct hoses include heating and cooling, ventilation, fume and smoke exhaust, vacuum cleaning, moving chips and shavings, handling bulk packing materials, and water and waste discharge.

Flexaust manufactures flexible hose, metal ducting, and accessories for industrial and commercial applications. The company, founded in 1938 and headquartered in San Diego, CA, is part of the international Schauenburg Group.
