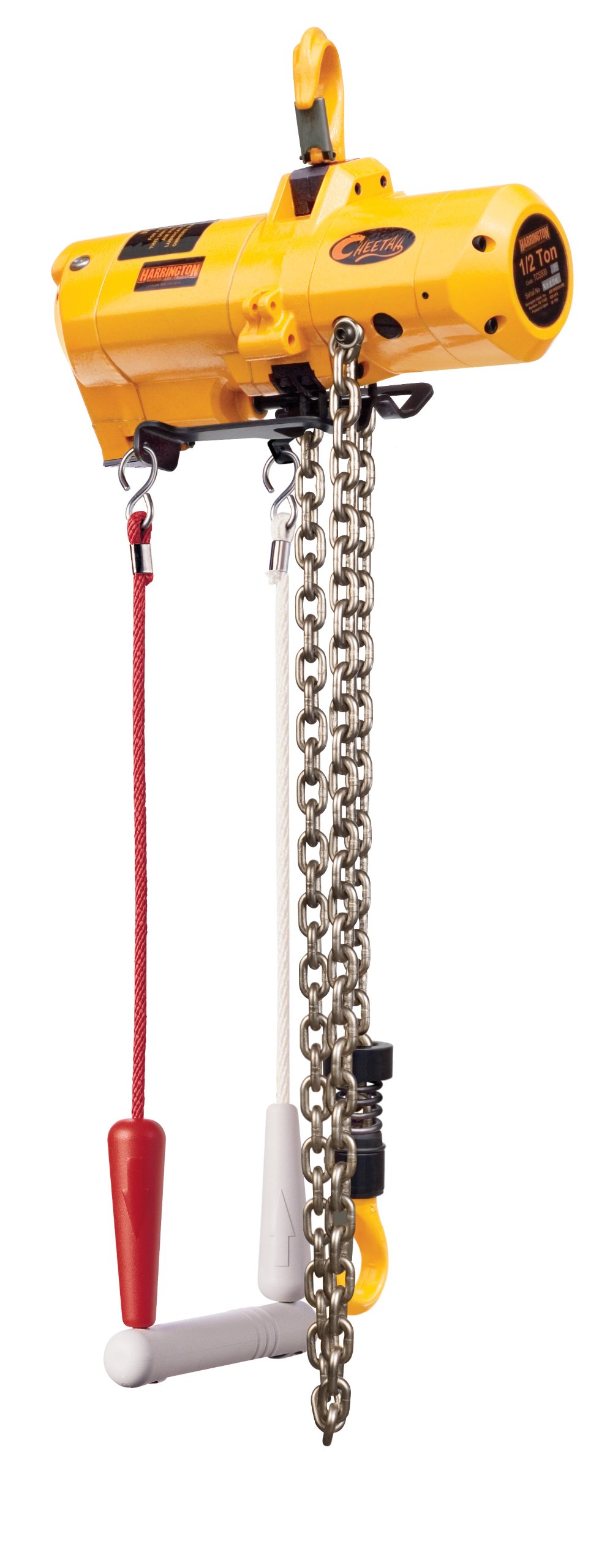

Harrington Cheetah TCS Cord Model Air-Powered Hoist, Hook Mount
Be the first to review this item
ASIN B0044WW5E4
Product Specifications
- Air Flow Capacity
- 90
- Headroom
- 16-1/3 inches
- Hook Opening
- 1 inches
- Inlet Size
- 1/2" NPT
- Lift
- 10 feet
- Lifting Speed
- 60 FPM
- Load Capacity
- 1000 pounds
- Number of Items
- 1
- Part Number
- TCS500C-10
- Specification Met
- ANSI/ASME B30.17
Specification for this product family (See all products)
- Brand Name
- Harrington
- Material Type
- Aluminum
- Lifting Material Type
- Nickel
- Manufacturer Series Number
- Cheetah TCS Cord Model
- Mounting Type
- Hook
In Stock (1)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 25? Order in-stock items in the next 3 hours 49 minutes and choose One-Day Shipping at checkout.
Harrington Cheetah TCS Cord Model Air-Powered Hoist, Hook Mount, 1/2 Ton Capacity, 10' Lift, 60 fpm Max Lift Speed, 16-1/3" Headroom, 1" Hook Opening, 1/2" NPT, 90 psi
Key Features
- Unlimited duty cycle for continuous operation; spring-loaded multi-vane motor design permits very fine feathering control
- Extremely fast lifting for applications where speed is critical; extremely compact and lightweight cast aluminum body allows for easy operation, transportation and storage
- External speed adjustment screw, adjustable lifting and lowering speeds increases production capabilities
- Heavy-duty disc motor brake system for reliable load support; low noise levels adds to operator comfort
- Nickel plated load chain resistant to corrosion, abrasion and wear
Package Details
Shipping Weight: 42 pounds
Product Description
TCS cheetah air hoists have extremely fast and uniquely adjustable lifting and lowering speeds. These hoist is lightweight, compact and have outstanding feathering ability making them a perfect fit for fast paced assembly line and workstation crane applications. Up/down speeds (ft/min at 90 psi) 108 / 62 when no load and 60 / 108 when full load. Up/down air consumption rates (cubic ft/min at 90 psi) 74 / 64 when no load and 60 / 71 when full load. Load chain 6.3mm diameter and 1 chain fall line.
