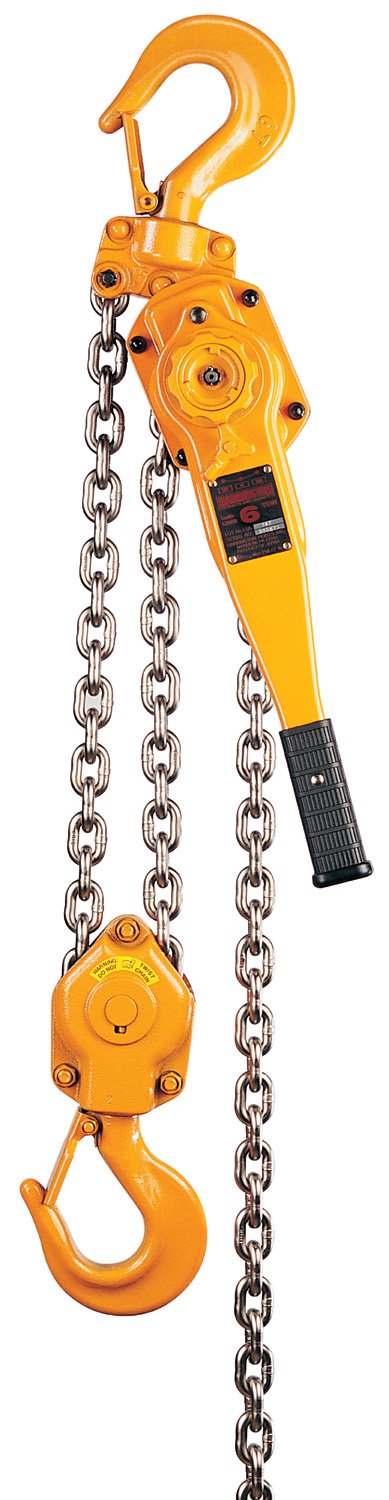

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Harrington LB Lever Hoist, Hook Mount

Be the first to review this item

Product Specifications
Manufacturer Series Number
LB
Mounting Type
Hook
Material Type
Steel
UNSPSC Code
24101602
Brand Name
Harrington

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 5 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Load Capacity Pull Force Headroom Lever Length Hook Opening Lift ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-12 of 12
1500 lbs 54 lbs 11" 9.6" 0.9" 10 ft B0044WW4AE yes $396.38 Buy Options
1500 lbs 54 lbs 11" 9.6" 0.9" 5 ft B0044WW49U yes $340.50 Buy Options
2000 lbs 72 lbs 11.8" 9.6" 1.1" 5 ft B0044WW4AY Usually ships in 2 to 3 weeks $456.67 Buy Options
2000 lbs 72 lbs 11.8" 9.6" 1.1" 10 ft B0044WW4BI yes $442.05 Buy Options
3000 lbs 64 lbs 13.2" 10.4" 1.3" 5 ft B0044WW4C2 yes $540.00 Buy Options
3000 lbs 64 lbs 13.2" 10.4" 1.3" 10 ft B0044WW4CM yes $489.27 Buy Options
5500 lbs 81 lbs 14.8" 10.4" 1.4" 10 ft B0044WW4EA yes $626.72 Buy Options
5500 lbs 81 lbs 14.8" 10.4" 1.4" 5 ft B0044WW4CW yes $583.78 Buy Options
6000 lbs 69 lbs 15.6" 16.3" 1.5" 5 ft B0044WW4FY yes $646.25 Buy Options
6000 lbs 69 lbs 15.6" 16.3" 1.5" 10 ft B0044WW4GI yes $764.00 Buy Options
12000 lbs 72 lbs 21.3" 16.3" 2" 5 ft B004SHT3OK yes $1,198.75 Buy Options
12000 lbs 72 lbs 21.3" 16.3" 2" 10 ft B004SHT3RW yes $1,438.05 Buy Options

Key Features

  • Compact manual lever hoist and hook mount with all-steel construction for strength; low headroom for work in small spaces and at any angle
  • Spring-loaded freewheel facilitates rapid adjustment of load chain with one hand, and helps prevent accidental freewheeling when a load is on the chain
  • Mechanical brake with two moisture-resistant brake pads, four braking surfaces, and two brake pawls to help ensure reliability
  • Factory load tested to 125% of rated capacity in accordance with ANSI/ASME requirements
  • Complies with ANSI/ASME B30.21 and ANSI/ASME HST-3M standards

Product Description

The Harrington LB lever hoist with hook mount is a compact, manually operated hoist with all steel construction for strength; and low headroom, a handle with 360-degree rotation and 15-degree recovery strokes, and mount and load hooks with 360 degree rotations for work in small spaces and at any angle. This hoist has a spring-loaded freewheel to facilitate rapid adjustment of the load chain with one hand, and helps prevent accidental freewheeling when a load is on the chain. The Weston-style brake has two moisture-resistant brake pads, four braking surfaces, and two brake pawls to help ensure reliability. The brake is completely covered for protection from dirt and moisture. The forged, heat-treated alloy steel mount hook and load hook resist fracture under stress. The mount hook is a pivot and swivel hook for use with rigging applications. The grade 100 heat-treated load chain is nickel-plated and corrosion resistant. This hoist also has a rubber handle grip for non-slip operation, and machined, heat-treated, split load double reduction gears for durability. The Harrington LB lever hoist is typically used in construction, mining, manufacturing, and shipbuilding applications, but can be employed for similar purposes in other industries. This hoist is factory load tested to 125% of rated load capacity in accordance with American National Standards Institute/American Society for Mechanical Engineers (ANSI/ASME) requirements. It also complies with ANSI/ASME B30.21 and ANSI/ASME HST-3M standards. When used according to manufacturer’s recommendations, this product is covered by a two-year warranty from date of shipment against defects in workmanship or materials.

Hoists are devices that use relatively small amounts of force to lift, lower, and move heavy loads. Manual hoists transfer a small, hand-exerted force across a series of gears or pulleys that multiply the force into one large enough to lift the designated load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or ratchet pulley, lifting the load by a hook attached to a chain, rope, or wire. Many manual hoists use disk brakes called Weston-style brakes that hold the load in place while the operator’s hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Manual hoists also may use ratchets instead of brakes to secure and control the load. Hoists are commonly suspended from structures by hook or trolley mounts, and used in a variety of industries including transportation, construction, manufacturing, mining, plumbing, foundry, and material handling.

Load capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load capacity. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2 ton manual hoist specifies a pull force of 40 lbs., for example, the operator needs to be able to pull a 40 lb. weight in order to lift the maximum 1/2 ton (500 lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

Harrington Hoists manufactures hoists and cranes. The company, founded in 1854 and headquartered in Manheim, PA, meets International Organization for Standardization (ISO) standard 9001.
