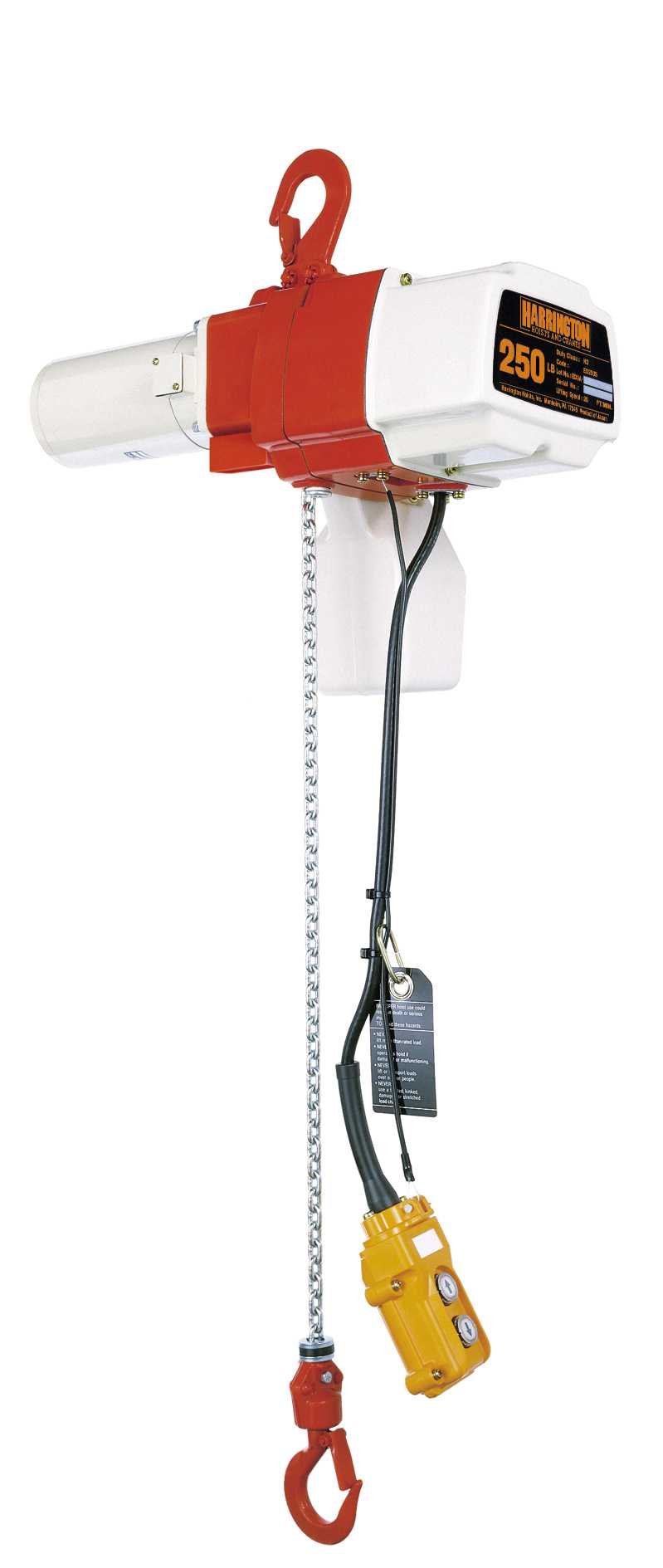

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Harrington ED Single Speed Electric Chain Hoist, Single Phase, Hook Mount

Be the first to review this item

Product Specifications
Manufacturer Series Number
ED Single Speed
Lifting Material Type
Zinc
Mounting Type
Hook
Material Type
Aluminum
UNSPSC Code
24101602
Brand Name
Harrington
Motor Phase
Single Phase

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 14 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Load Capacity Lifting Speed Horsepower Lift Headroom Hook Opening Voltage ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-7 of 7
125 lbs 69 fpm 0.4 10 ft 12.4" 1" 120V B004SHT3TU Usually ships in 2 to 3 weeks $1,531.00 Buy Options
220 lbs 43 fpm 0.4 10 ft 12.4" 1" 120V B004SHT3V8 Usually ships in 2 to 3 weeks $1,175.10 Buy Options
250 lbs 26 fpm 0.4 10 ft 12.4" 1" 120V B004SHT3VS yes $1,485.98 Buy Options
350 lbs 66 fpm 0.8 10 ft 13" 1" 120V B004SHT3WM yes $1,563.35 Buy Options
400 lbs 26 fpm 0.4 10 ft 12.4" 1" 115V B004SHT3XG yes $1,552.80 Buy Options
525 lbs 44 fpm 0.8 10 ft 13" 1" 120V B004SHT3Y0 Usually ships in 2 to 3 weeks $1,877.00 Buy Options
1050 lbs 22 fpm 0.8 10 ft 20.5" 0.9" 120V B004SHT3ZO Usually ships in 2 to 3 weeks $2,381.00 Buy Options

Key Features

  • Single speed electric chain hoist and hook mount, with single phase motor for 120-volt outlets, and compact, die-cast aluminum body with low headroom for tight workspaces and mobility
  • Dual brake system with mechanical load brake and an electric regenerative brake creates electricity for added safety and greater efficiency
  • Ten-foot lift with standard pendant and push-button cord for operation from a standing position
  • Separate up and down momentary contact buttons on control box, and upper limit switch to help prevent over winding and over lifting
  • Complies with American National Standards Institute/National Fire Protection Association (ANSI/NFPA) 70, National Electrical Code

Product Description

The Harrington ED single speed electric chain hoist has a single phase motor for 120-volt outlets, a die-cast aluminum body with low headroom for tight workspaces and mobility, and a hook for overhead mounting. This hoist has a dual-brake system with a Weston-style mechanical load brake and an electric regenerative brake, which generates electricity to help power the motor. This hoist has a standard pendant (three feet off lift) and push-button cord for easy operation from a standing position. Separate up and down momentary contact buttons on the control box provide added safety and control. An upper limit switch helps prevent over winding and over lifting. This hoist includes a small direct current (DC) motor rectifier that converts alternating current (AC) to DC to reduce weight, generate less heat, and help maximize duty ratings (maximum run time and number of starts the hoist can perform in a given time period). The Harrington ED single speed electric chain hoist is typically used to lift and move loads for industrial or commercial applications, but also may be used in residential workshops. This hoist complies with American National Standards Institute/National Fire Protection Association (ANSI/NFPA) 70, National Electrical Code. When used according to manufacturer’s recommendations, this product is covered by a one-year warranty from date of shipment against defects in workmanship or materials.

Hoists are devices that use relatively small amounts of force to lift, lower, and move heavy loads. They work by transferring a small force generated by a motor across a series of gears that concentrate it into a force large enough to lift the designated load. Their lifting mechanisms consist of a motor; drive shaft; gear set; wheel threaded with a load chain or wire; and a lifting hook. The motor turns the drive shaft, which engages the gears; the gears interact to rotate the wheel and load chain or wire, which pulls the hook up to lift the load. When the force generated by the motor reaches the smaller sprocket wheel, it has become concentrated enough to lift the load. Hoists are operated with a control box, or pendant, that descends from the hoist. A standard pendant is three feet shorter than the lift, placing it at a comfortable chest level for an operator of average height. Hoists can be attached to structures such as cranes, ceilings, and walls by a variety of methods including hook, trolley, deck, base, wall, and ceiling mounts. They are used in a variety of industries such as transportation, construction, manufacturing, mining, plumbing, foundry, and materials handling.

Load capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load. Lifting speed describes, in feet per minute (fpm), how quickly the hoist can lift the maximum rated load. Lift is the maximum vertical distance the load hook can move a load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Duty ratings describe the maximum amount of time a hoist can run and the number of times it can start over a given time period under various conditions such as intermittent use, or short and lengthy periods of operation.

Harrington Hoists manufactures hoists and cranes. The company, founded in 1854 and headquartered in Manheim, PA, meets International Organization for Standardization (ISO) standard 9001.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
