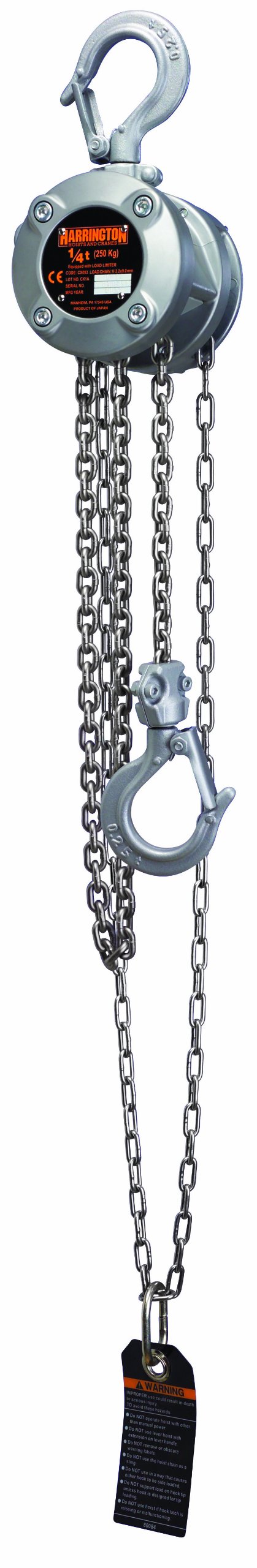

Harrington CX003 Mini Hand Chain Hoist, Hook Mount, 1/4 Ton Capacity, 10' Lift, 8.5" Headroom, 0.8" Hook Opening

Be the first to review this item

ASIN B0044WW4IG

Specifications for this item
Number of Items
1
Overall Height
8.5  inches
Maximum Lifting Height
10  feet
Material Type
Aluminum
Part Number
CX003-10
Inside Width
0.8  inches
Brand Name
Harrington
Size Name
33 pounds
Manufacturer Series Number
CX003 Mini
Specification Met
ASME B30.16
Mounting Type
Hook
Load Capacity
500  pounds
UNSPSC Code
24101602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 10 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Compact manually operated chain hoist and hook mount with aluminum body, steel frame, and low headroom for strength, work in small spaces, and to fit into mobile storage carriers
  • Low pulling force requirement to facilitate use
  • Load limiter helps prevent lift operation when load exceeds rated capacity for added safety and to avoid damage
  • Grade 100 nickel-plated load chain for resistance to corrosion and wear; stainless steel hand chain for resistance to wear
  • Factory load tested to 125% of rated capacity in accordance with ANSI/ASME B30.16 requirements; built to comply with ANSI/ASME B30.16 and ANSI/ASME HST-2M standards

Package Details

Shipping Weight: 5.85 pounds
Package Size: 6.6 x 4.2 x 4.2 inches

Product Description

The Harrington CX003 mini hand chain hoist with hook mount is a compact manually operated hoist with an aluminum body, steel frame, and low headroom for strength, work in tight spaces, and to fit into mobile storage carriers; and a low pulling force requirement to facilitate use. This hoist has a load limiter that helps prevent a lift operation if the load exceeds the maximum rated capacity for added safety and to avoid damage. This hoist has a Weston-style friction disk brake. The Harrington CX003 mini hand chain hoist is commonly used in small or difficult-to-reach spaces for plumbing repairs; heating, ventilation, and air conditioning (HVAC) system installations or repairs; crane repairs; home workshops, repairs, or automobile maintenance; and similar applications. It also can be employed in industries such as transportation, construction, manufacturing, and material handling. This hoist is factory load tested to 125% of rated load capacity in accordance with American National Standards Institute/American Society for Mechanical Engineers (ANSI/ASME) B30.16 requirements, and is built to comply with ANSI/ASME B30.16 and ANSI/ASME HST-2M standards.

Hoists are devices that use relatively small amounts of force to lift, lower, and pull heavy loads. Manual hoists transfer a small, hand-exerted force either across a series of gears to multiply the force into one large enough to lift the designated load, or over a pulley, drum, or sheave to leverage the force into one strong enough to lift the load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or lever ratchet, lifting the load by a hook attached to a chain, rope, or wire. Hand chain and lever hoists commonly use mechanical disk brakes called Weston-style brakes that hold the load in place while the operator's hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Ratchet puller hoists commonly use ratchets instead of mechanical brakes to secure and control the load. Manual hoists are commonly attached to or suspended from structures by hook or trolley mounts, and are used in the transportation, construction, manufacturing, mining, and material handling industries, among others.

Load capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2 ton manual hoist specifies a pull force of 40 lbs., for example, the operator needs to be able to pull a 40 lb. weight in order to lift the maximum 1/2 ton (500 lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

Harrington Hoists manufactures hoists and cranes. The company, founded in 1854 and headquartered in Manheim, PA, meets International Organization for Standardization (ISO) standard 9001.
