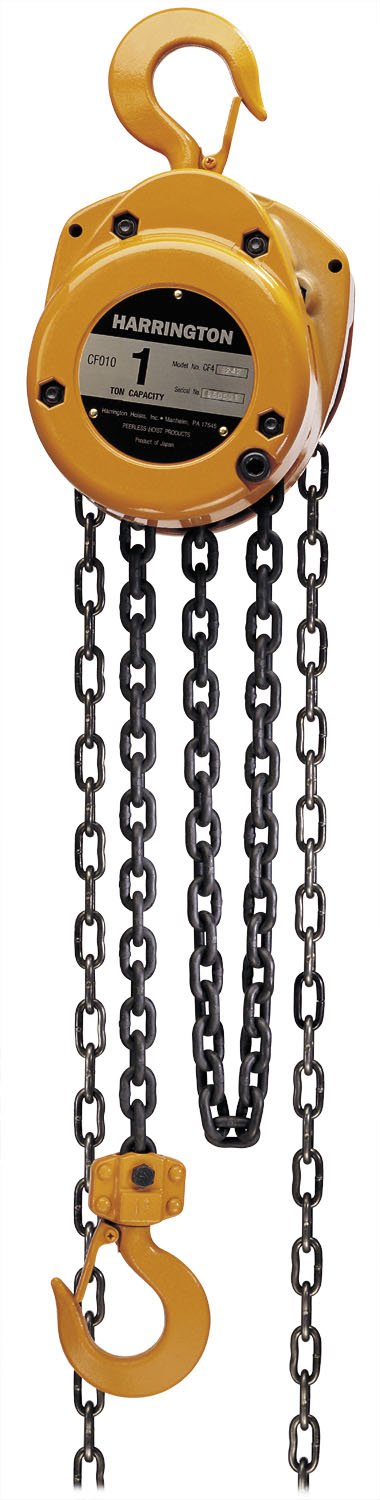

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Harrington CF Hand Chain Hoist, Hook Mount

Be the first to review this item

Product Specifications
Manufacturer Series Number
CF
Mounting Type
Hook
Material Type
Alloy Steel
UNSPSC Code
24101602
Brand Name
Harrington

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 10 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Load Capacity Pull Force Headroom Hook Opening Lift ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-12 of 12
1000 lbs 60 lbs 12.8" 1.1" 10 ft B0044WW4J0 yes $208.95 Buy Options
1000 lbs 60 lbs 12.8" 1.1" 20 ft B0044WW4KE yes $319.95 Buy Options
2000 lbs 72 lbs 14.6" 1.1" 20 ft B0044WW4M2 yes $417.00 Buy Options
2000 lbs 72 lbs 14.6" 1.1" 10 ft B0044WW4L8 yes $248.95 Buy Options
3000 lbs 84 lbs 17.3" 1.3" 20 ft B0044WW4N6 yes $455.59 Buy Options
3000 lbs 84 lbs 17.3" 1.3" 10 ft B0044WW4MM Usually ships in 2 to 3 weeks $352.95 Buy Options
4000 lbs 80 lbs 20.1" 1.4" 10 ft B0044WW4NG yes $408.95 Buy Options
4000 lbs 80 lbs 20.1" 1.4" 20 ft B0044WW4OK Usually ships in 2 to 3 weeks $576.00 Buy Options
6000 lbs 92 lbs 23.2" 1.7" 20 ft B0044WW4QI yes $765.29 Buy Options
6000 lbs 92 lbs 23.2" 1.7" 10 ft B0044WW4PO yes $623.00 Buy Options
10000 lbs 92 lbs 24.4" 1.8" 20 ft B0044WW4S6 yes $1,487.00 Buy Options
10000 lbs 92 lbs 24.4" 1.8" 10 ft B0044WW4RM yes $1,006.40 Buy Options

Key Features

  • Manually operated chain hoist and hook mount with die-cast aluminum body, heat-treated pinion shaft and load gear, pre-lubricated sealed ball bearings, and precision machined gears for strength, simplified maintenance, and smooth lifting
  • Load chain made of heat-treated manganese alloy to resist abrasion and minimize chain weight; mount hook and load hook made of forged, heat-treated alloy steel to resist fracture under stress
  • Load brake with two moisture-resistant brake pads and four braking surfaces to help ensure smooth lifting
  • Factory load tested to 125% of rated capacity in accordance with ANSI/ASME B30.16 requirements
  • Complies with ANSI/ASME B30.16 and ANSI/ASME HST-2M standards

Product Description

The Harrington CF hand chain hoist with hook mount is a manually operated hoist with a die-cast aluminum body, heat-treated pinion shaft and load gear, pre-lubricated sealed ball bearings, and precision machined gears for strength, simplified maintenance, and smooth lifting. The load chain on this hoist is made of heat-treated manganese alloy to resist abrasion and minimize chain weight. Both the mount hook and the load hook are made of forged, heat-treated alloy steel to resist fracture under stress. This hoist has a Weston-style brake with two moisture-resistant pads and four braking surfaces for smooth lifting. The Harrington CF hand chain hoist is typically used in construction or manufacturing applications, but can be employed for similar purposes in other industries. This hoist is factory load tested to 125% of rated load capacity in accordance with American National Standards Institute/American Society for Mechanical Engineers (ANSI/ASME) B30.16 requirements. It also complies with ANSI/ASME B30.16 and ANSI/ASME HST-2M standards. When used according to manufacturer’s recommendations, this product is covered by a two-year warranty from date of shipment against defects in workmanship or materials.

Hoists are devices that use relatively small amounts of force to lift, lower, and move heavy loads. Manual hoists transfer a small, hand-exerted force across a series of gears or pulleys that multiply the force into one large enough to lift the designated load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or ratchet pulley, lifting the load by a hook attached to a chain, rope, or wire. Many manual hoists use disk brakes called Weston-style brakes that hold the load in place while the operator’s hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Manual hoists also may use ratchets instead of brakes to secure and control the load. Hoists are commonly suspended from structures by hook or trolley mounts, and used in a variety of industries including transportation, construction, manufacturing, mining, plumbing, foundry, and material handling.

Load capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load capacity. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2 ton manual hoist specifies a pull force of 40 lbs., for example, the operator needs to be able to pull a 40 lb. weight in order to lift the maximum 1/2 ton (500 lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

Harrington Hoists manufactures hoists and cranes. The company, founded in 1854 and headquartered in Manheim, PA, meets International Organization for Standardization (ISO) standard 9001.
