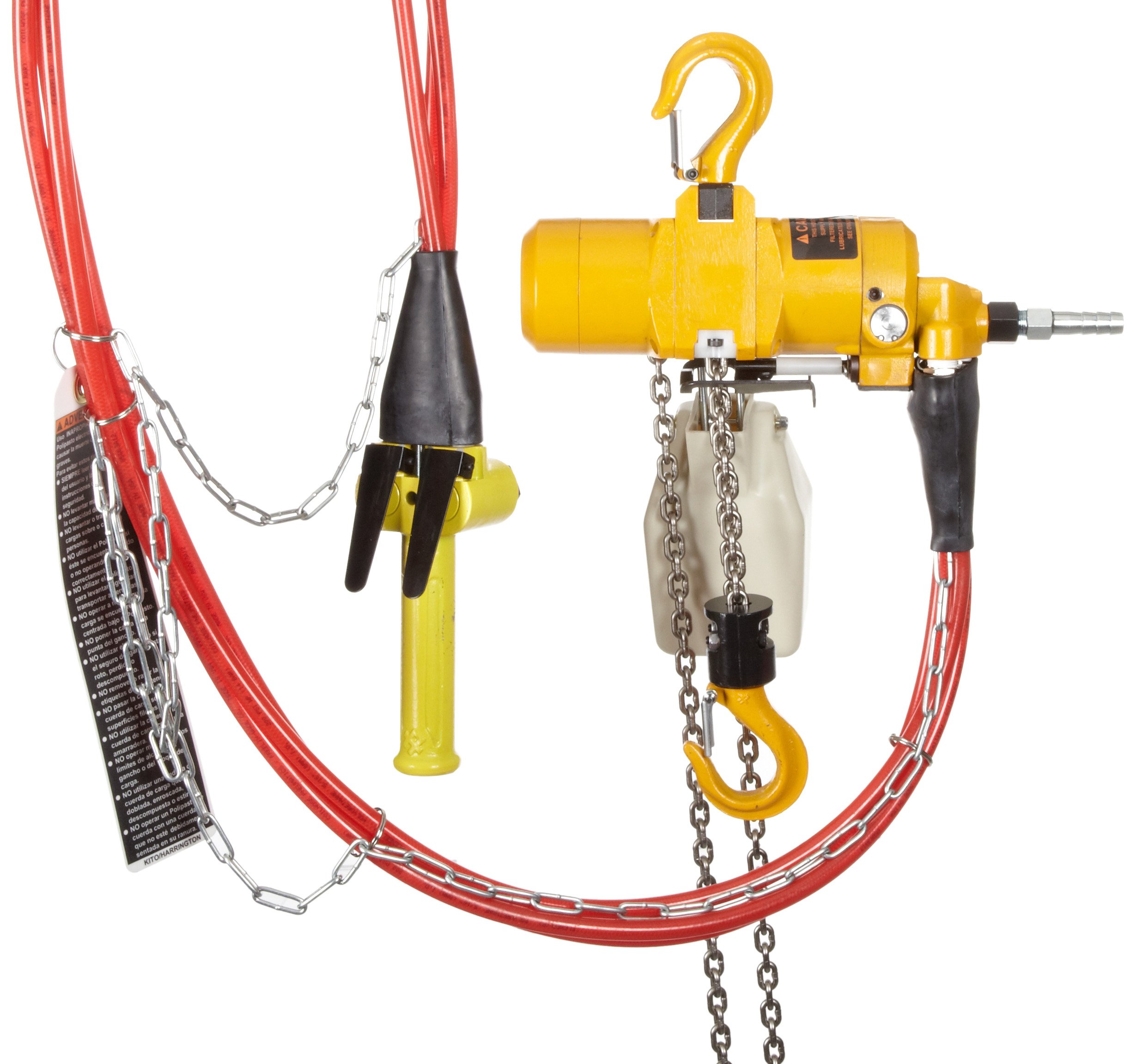

Harrington Mini Cat AH Pendant Model Air-Powered Hoist, Hook Mount
Be the first to review this item
ASIN B0044WW59O
Product Specifications
- Air Flow Capacity
- 90
- Headroom
- 12 inches
- Hook Opening
- 0.9 inches
- Inlet Size
- 3/8" NPT
- Lift
- 20 feet
- Lifting Speed
- 29 FPM
- Load Capacity
- 500 pounds
- Number of Items
- 1
- Part Number
- AH500P-20
- Specification Met
- ANSI/ASME B30.17
Specification for this product family (See all products)
- Brand Name
- Harrington
- Material Type
- Aluminum
- Lifting Material Type
- Nickel
- Manufacturer Series Number
- Mini Cat AH Pendant Model
- Mounting Type
- Hook
In Stock (1)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 25? Order in-stock items in the next 3 hours 49 minutes and choose One-Day Shipping at checkout.
Harrington Mini Cat AH Pendant Model Air-Powered Hoist, Hook Mount, 1/4 Ton Capacity, 20' Lift, 29 fpm Max Lift Speed, 12" Headroom, 0.9" Hook Opening, 3/8" NPT, 90 psi
Key Features
- 29' per minutes lifting speed
- Unlimited duty cycle for continuous operation
- Extremely compact and lightweight body allows for easy operation, transportation and storage
- Airtight hoist results in efficient use of air
- High speed lifting , maximum speed gets jobs done quickly
Package Details
Shipping Weight: 31.6 pounds
Product Description
The AH Mini-Cat Series of air hoists was designed with exceptionally low headroom and will easily handle many construction, assembly line and workstation applications. 12" Headroom, vane motor design permits very fine feathering control, aluminum valve section reduces effects of corrosion, low noise levels adds to operator comfort, disc motor brake system for reliable load support. Nickel plated load chain resistant to corrosion, abrasion and wear, 250 - 500 lbs Capacity Range, Standard Pendant or Cord Length is 4' less than lift , 19 - 34 cfm at 60 - 90 psi Air Supply Requirement. Air Lubrication Minimum 10 to 15 drops of oil per minute (2 - 3cc/min.), maximum 5 micron air filter or finer required air filtration. 3/8" NPT air inlet port, 3/8" air supply hose minimum size, operating temperature range +14 degree to 140 degree Fahrenheit - humidity 85 percent or less, optional plastic chain containers.
