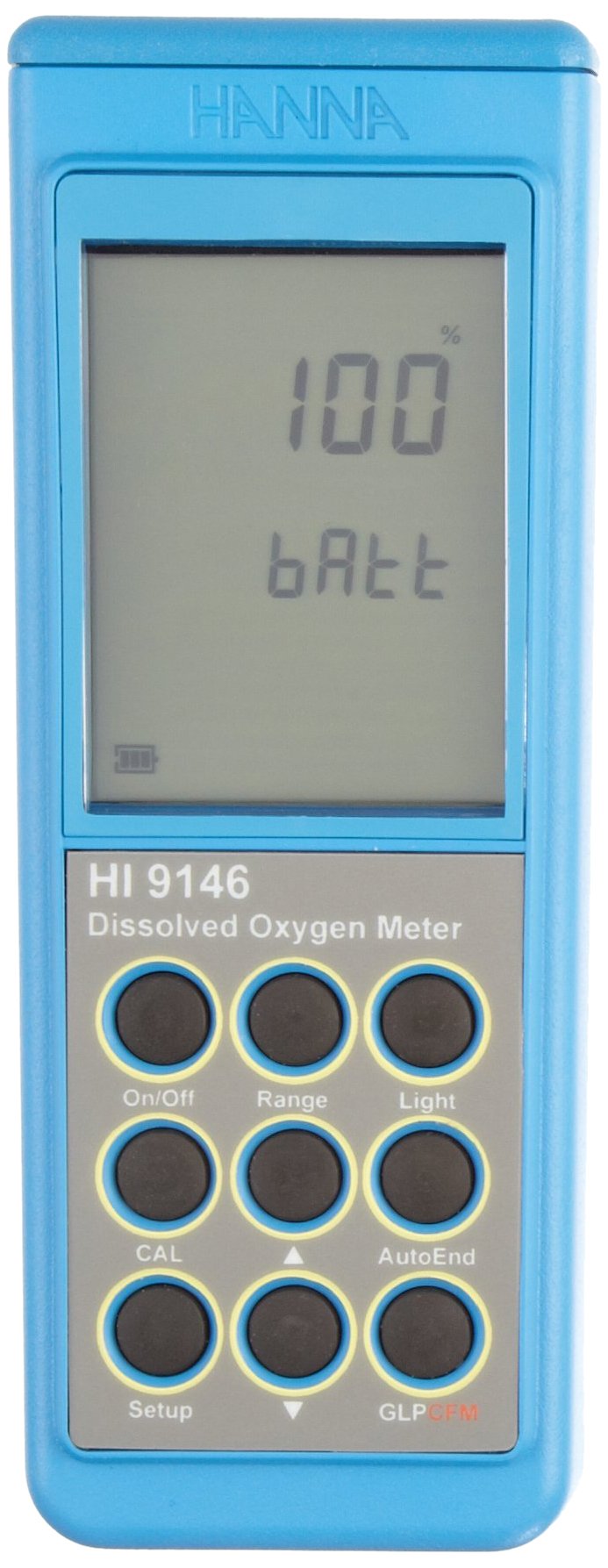

Hanna Instruments HI 9146N Waterproof Portable Microprocessor Dissolved Oxygen Meter

Be the first to review this item

ASIN B00451B9FA

Specifications for this item
Number of Items
1
Part Number
HI 9146N
Item Weight
1 pounds
Size Name
0.00 to 45.00 ppm
Brand Name
Hanna Instruments
UNSPSC Code
41115611

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Two-point calibration
  • Auto endpoint freezes stable readings
  • Automatic Temperature Compensation (ATC) eliminates need for extra calculations
  • On-screen tutorial messages, to help improve measurement reliability
  • LCD screen for readability

Package Details

Shipping Weight: 2.65 pounds
Package Size: 9.4 x 9.2 x 3.2 inches

Product Description

The HI 9146N is a portable, water-resistant Dissolved Oxygen (DO) meter suitable for lab or field use. The meter measures up to 300% saturation or 45 ppm, and allows altitude compensation up to 4000 m. It features two-point calibration and the ppm and percent saturation are both compensated for changes in the solubility of oxygen in water and for permeability of the membrane, as well as the temperature effect. Its probe features built-in temperature compensation (ATC) and a protective membrane cover.

The meter provides diagnostic features and messages on the LCD screen, enabling the user to improve the reliability of measurements. The auto endpoint feature automatically freezes the display when a stable reading is reached. The Battery Error Preventing System (BEPS) detects when the batteries become too weak to ensure reliable measurements. The meter automatically turns itself off when the batteries are too weak to support proper function. It also allows the user to enter an ID code to uniquely identify the instrument.

DO range is 0.00 to 45.00 ppm; 0.0 to 300.0% + or – 1.5% of full scale or 1 digit (whichever greater) at 20 degrees C, with a resolution of 0.01 ppm; 0.1%. Temperature range is 0.0 to 50.0 degrees C + or – 0.2 degrees C (excluding probe error) at 20 degrees C, with a resolution of 0.1 degrees C. The device operates on three 1.5V AAA batteries. Dimensions are 185 x 72 x 36 mm (7.3” x 2.8” x 1.4’’), and weighs 300 g (10.6 oz.).

Dissolved Oxygen meters measure dissolved oxygen and temperature in water, wastewater, and applications such as fish farming. They are used by researchers, manufacturers, and individuals.

Hanna Instruments manufactures analytical instrumentation and supplies, including pH meters, electrodes, chemical reagents, and buffer solutions. The company, founded in 1978 and headquartered in Woonsocket, RI, meets International Organization for Standardization (ISO) 9001 standards.

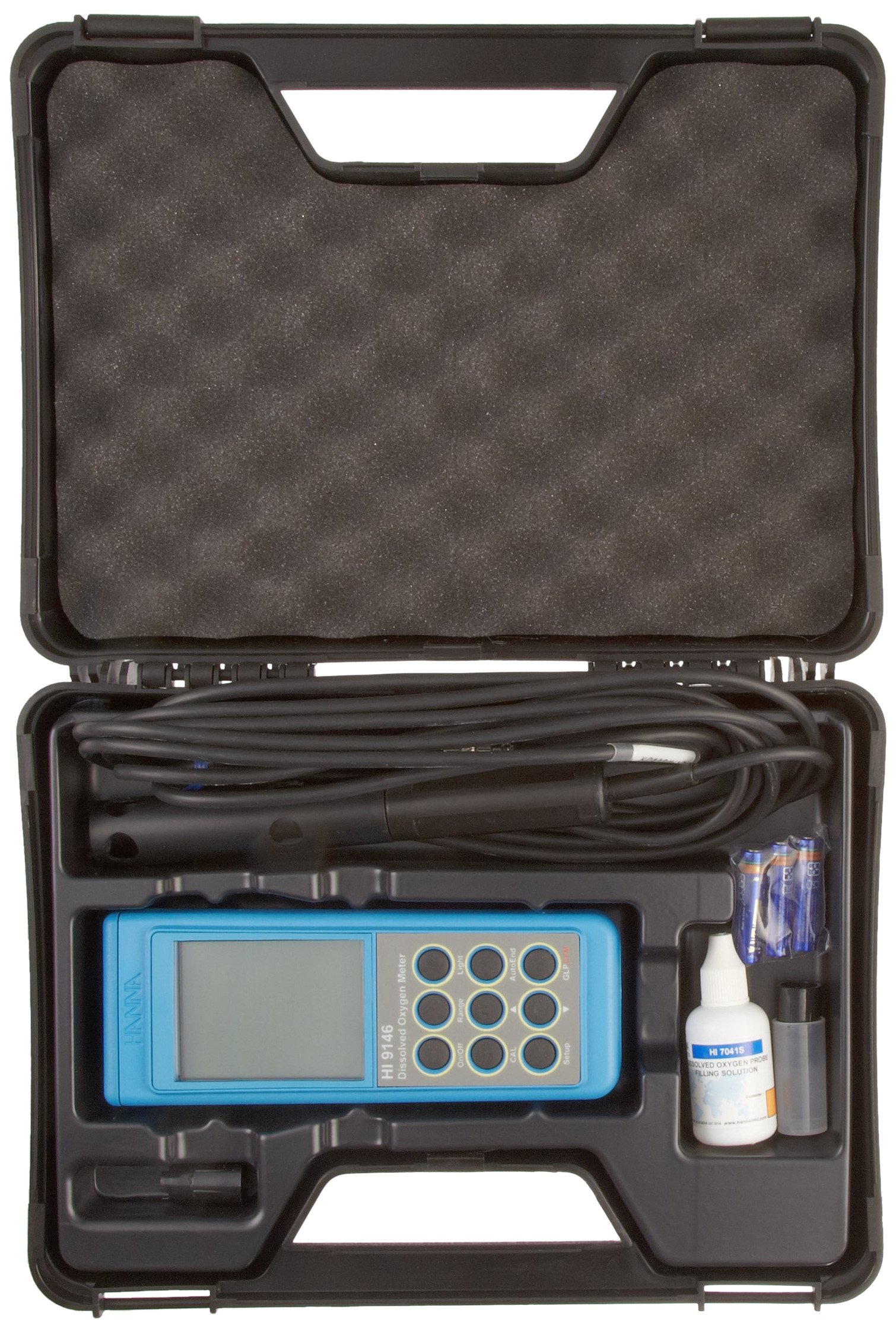

What’s in the Box?

  • HI 76407/2 D0 Probe with 2-m Cable
  • HI 76407A Membrane Cap (2 pcs)
  • HI 7041S Electrolyte Solution (30 mL)
  • 1.5V AAA Batteries (3)
  • Instructions
  • Carrying Case
