Key Features

  • Automatically dispenses titrant, detects the endpoint and performs calculations for ease of use
  • Clip-Lock exchangeable burette system for quick titration and reducing cross-contamination
  • Supports up to 100 titration methods and stores standardization information for up to 20 titrants
  • USB connection for downloading data, connecting to monitors, printers and keyboards, and device is compatible with Hanna HI 900 PC software
  • Digital, magnetic stirring system with optical feedback helps accurately mix titrant and analyte

Package Details

Shipping Weight: 27.35 pounds
Package Size: 19.7 x 17.6 x 12.1 inches

Product Description

Hanna Logo
  • Automatically dispenses titrant, detects the endpoint, and performs calculations for ease of use
  • Clip-Lock exchangeable burette system for quick titration and reducing cross-contamination
  • Supports up to 100 titration methods and stores standardization information for up to 20 titrants
  • Compatible with Hanna HI 900 PC software and has a USB connection for downloading data and connecting to monitors, printers, and keyboards
  • Digital, magnetic stirring system with optical feedback helps accurately mix titrant and analyte

The HI 903 Karl Fischer Volumetric Titrator combines a high-precision titrant delivery system, optically regulated magnetic stirring, dynamic dosing and endpoint determination, and background drift correction algorithms to automatically calculate moisture content using potentiometric titration.

Clip-Lock System for Quick Burette Exchange

The titration system features the Clip-Lock exchangeable burette system, which allows the user to slide reagent burettes in and out within seconds without interrupting the analysis cycle or causing cross-contamination of samples. This device in commonly used in food, beverage, pharmaceutical, cosmetic, and chemical manufacturing industries.

Flexible Data Options for Simple Data Collection and Analysis

The titrator features a large, backlit color LCD screen with menus in multiple languages and can be connected via USB connection to a PC, keyboard, monitor, printer, or to a flash drive for utilizing and saving methods and data. It also features a titrant database for storing standardization information for up to 20 titrants and supports up to 100 titration methods (both standard, and user defined). GLP data can be recorded for all samples, and the titrator is compatible with most major titrant and solvent brands.

Premium Components Ensure Accurate Mixing and Endpoint Determination

A digital, magnetic stirring system with optical feedback, a conical titration cell (to help mix over a wide volume range), and upward titrant dispensation all help to ensure proper mixing of the titrant and analyte. The titrator detects the endpoint with a dual platinum pin polarization electrode for bivoltametric indication, and has signal averaging (to reduce noise) and selectable endpoint criteria (fixed mV persistence, relative or absolute drift stop). Sample mass and volume are automatically acquired with the serial RS-232 interface.

Advanced Titrant Delivery System for Precise Dosing

The HI 903 features a 40,000 step piston dosing pump that contains a precision ground 5 mL glass burette with a polytetrafluoroethylene (PTFE) plunger and tubing, a polyurethane tube jacketing, and a glass anti-diffusion dispensing tip. It has a sealed solvent system, which allows the user to change to fresh solvent without opening the titration vessel, minimizing exposure to ambient humidity. The beaker top and vessel caps are chemically resistant and have a quick-remove sample port plug with a replaceable rubber septum. The desiccant is rechargeable at 150 degrees C, and indicates when absorption capacity is depleted.

Microscale Range and Dose Administration

Range is 100 ppm to 100%, with resolution 1 ppm (0.0001%), and results are available in the following units: %, ppm, mg/g, μg/g, mg, μg, mg/mL, μg/mL, mg/pc, μg/pc. The sample type can be liquid or solid, and the dosing system is capable of delivering doses as small as 0.125 uL of titrant. Dimensions are 390 x 350 x 380 mm (15.3 x 13.8 x 14.9"), with weight 10 kg (22 lbs.). Additional specifications are available below.

About Hanna Instruments

Hanna Instruments manufactures a wide variety of analytical instrumentation, including pH meters, multi-parameter meters, electrodes, chemical reagents, and buffer solutions. Founded in 1978, Hanna is headquartered in Woonsocket, RI, with subsidiaries in 32 countries. Hanna Instruments holds many firsts in the field of analytical instrumentation, including a pH electrode with a built-in temperature sensor, an electronic pocket-sized pH tester, and a replaceable electrode pH pocket tester. To ensure the quality of its products, Hanna is a vertically integrated manufacturer and does not subcontract any part of its manufacturing.

What's in the Box
  • Dual platinum pin electrode
  • Dosing pump
  • 5 mL burette assembly with tubing
  • Air pump assembly with tubing
  • Desiccant cartridges (4) with indicating desiccant
  • Beaker and bottle top assemblies and all fittings
  • Stir bar
  • Power cable (115V)
  • Waste bottle
  • Calibration key
  • USB cable and flash drive
  • HI 900PC application
  • Quality certificate
  • ISO 8655 burette compliance report
  • Instruction manual binder

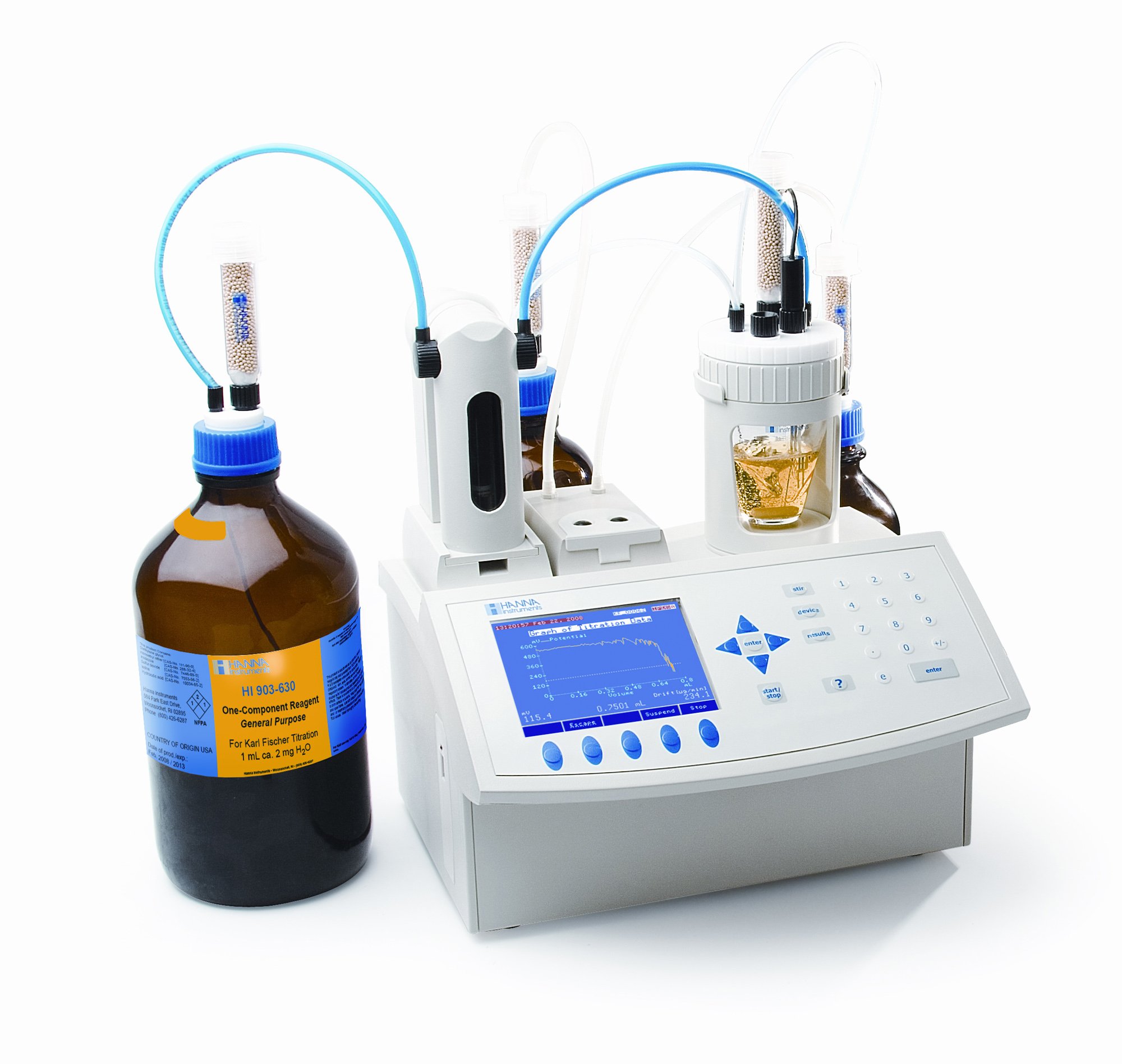

HI 903 Karl Fischer Volumetric Titrator Product Shot
Measures 100 ppm to 100% water content. View larger.
SPECIFICATIONS

HI 903
Range
 100 ppm to 100%
Resolution
 1 ppm (0.0001%)
Result Units
 %, ppm, mg/g, μg/g, mg, μg, mg/mL, μg/mL, mg/pc, μg/pc
Sample Type
 Liquid or solid
Determination
Pre-Titration Conditioning
Automatic
Background Drift Correction
Automatic or user selectable value
Endpoint Criteria
Fixed mV persistence, relative drift stop or absolute drift stop
Dosing
Dynamic with optional pre-dispensing rate
Result Statistic
Mean, standard deviation
Clip Lock™ Exchangeable Burette System
Dosing Pump Resolution
1/40000 of the burette volume (0.125 μL per dose)
Dosing Pump Accuracy
±0.1% of full burette volume
Syringe
5 mL precision ground glass with PTFE plunger
Valve
Motor driven 3-way, PTFE liquid contact material
Tubing
PTFE with light block and thermal jacketing
Dispensing Tip
Glass, fixed position, anti-diffusing
Titration Vessel
Conical with operation volume between 50-150 mL
Solvent Handling System
Sealed system, integrated diaphragm air pump
Electrode
Type
Dual platinum pin, polarization electrode
Connection
BNC
Polarization Current
1, 2, 5, 10, 15, 20, 30 or 40 μA
Voltage Range
2 mV to 1000 mV
Voltage Resolution
0.1 mV
Accuracy (@25°C/77°F)
±0.1 mV
External Stirrer
Type
Magnetic, optically regulated, digital stirrer
Speed
200-2000 rpm
Resolution
100 rpm
Peripheral Devices
PC
Easily view, transfer, print or delete methods and reports via HI900PC application
USB Flash Drive
Easily upgrade software or transfer methods and reports between devices using a USB drive
Laboratory Analytical Balance
RS232 to connect any laboratory balance
Printer
Print directly from the HI 903 to a printer via parallel port
Monitor
Instrument status and titrations can be viewed on a larger screen using any VGA compatible external monitor
Keyboard
Alphanumeric text can be entered using an optional PS/2 keyboard
Graphic Display
 5.7" (320 x 240 pixel) color LCD
Titration Methods
 Up to 100 (standard and user) methods
Data Storage
 Up to 100 complete titration reports and drift rate reports can be stored
GLP Conformity
 Good Laboratory Practice and instrument data storage and printing
Languages
 English, Portuguese and Spanish
Enclosure Material
 ABS plastic and steel
Keypad
 Polycarbonate
Power Supply
 Model 01: 115VAC, 50/60 Hz
Operating Environment
 10 to 40°C, up to 95% RH
Storage Environment
 -20 to 70°C, up to 95% RH
Dimensions
 390 x 350 x 380 mm (15.3 x 13.8 x 14.9")
Weight
 Approximately 10 kg (22 lbs.)
