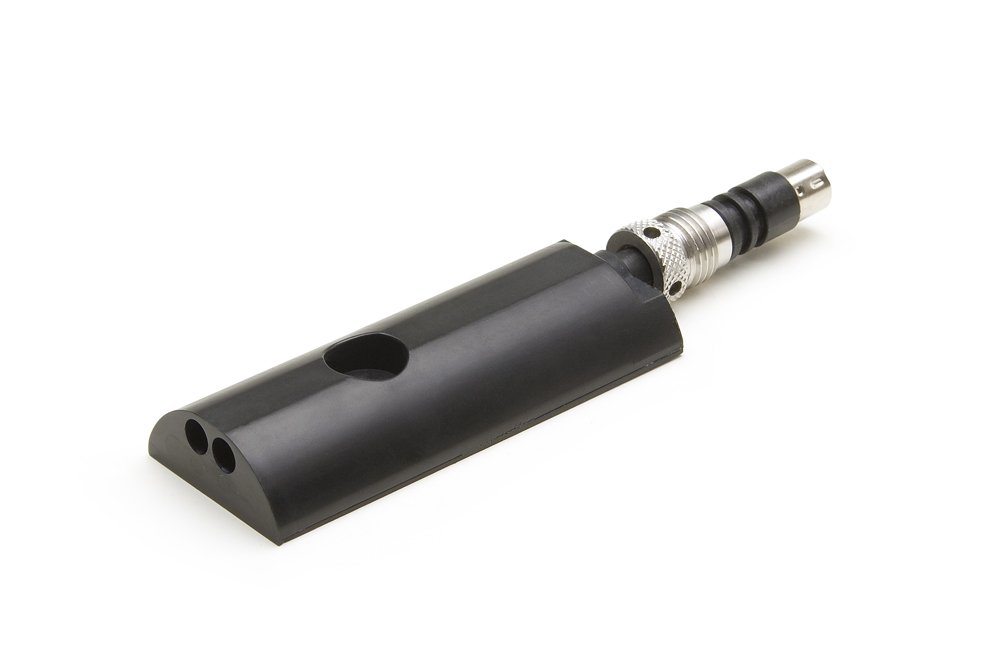

Hanna Instruments HI7609829-4 EC/Turbidity Sensor with O-Ring, For Multiparameter Meter

Be the first to review this item

ASIN B0085X0LN0

Specifications for this item
Number of Items
1
Measurement Type
Electrical Conductivity , Turbidity
Part Number
HI7609829-4
Item Weight
1 pounds
Brand Name
Hanna Instruments
UNSPSC Code
42181904

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 7 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Sensor module measures electrical conductivity (EC) and turbidity for environmental field monitoring of fresh, brackish, and sea water
  • For use with the HI 9829 or HI 98290 GPS multiparameter meter and a compatible digital probe (sold separately)
  • Presence of sensor is recognized automatically by the multiparameter meter
  • Sensor is field replaceable and easy to attach with color-coded, screw-type connectors
  • Sensor provides measurements from 0.0 to 1000 formazin nephelometric units (FNU)

Package Details

Shipping Weight: 1.9 pounds
Package Size: 15.3 x 4.4 x 1 inches

Product Description

The Hanna Instruments HI 7609829-4 EC/turbidity sensor module with O-ring extends the testing capabilities of the HI 9829 or HI 98290 GPS multiparameter meter and a compatible probe in environmental monitoring of lakes, rivers, seas, and urban waters. After the sensor has been attached to the probe, it is automatically recognized by the meter. The meter can display both the electrical conductivity (EC) and turbidity parameters at the same time. The sensor houses a four-electrode conductivity sensor and a turbidity sensor in a single sensor body. The turbidity sensor uses an optical technique to measure suspended particles in water. The sensor provides measurements from 0.0 to 1000 formazin nephelometric units (FNU). The sensor is field replaceable and easy to attach, with color-coded screw-type connectors. HI 7609829-4 sensor measurements are International Organization for Standardization (ISO) 7027 compliant.

Specifications

EC/turbidity range0 to 200.0mS/cm
0.0 to 400mS/cm (absolute)
0.0 to 1000 FNU
Temperature range0 to 40 degrees C/32 to 104 degrees F
Depth rating20m/65ft.
Dimensions118 x 15mm/4.6 x 0.6 inches (H x W)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right.

A multiparameter meter is a benchtop or handheld device that can take multiple readings on a single sample. It measures parameters such as the pH level (acidity or alkalinity of a substance), conductivity (the amount of salts or other compounds present in water), dissolved oxygen (DO, the amount of oxygen in a liquid), temperature, total dissolved solids (TDS, anything present in water other than the pure water molecule and suspended solids), salinity, resistivity, and oxidation reduction potential (ORP). Applications for multiparameter meters include water testing, pharmaceuticals, agriculture, winemaking, water-treatment plants, and aquaculture. Devices with a benchtop body are often used for indoor laboratory use or in a manufacturing setting; handheld, portable devices are typically used for fieldwork. Sensors are used with a meter to measure the parameters of a substance.

Hanna Instruments manufactures analytical instrumentation and supplies, including pH meters, electrodes, chemical reagents, and buffer solutions. The company, founded in 1978 and headquartered in Woonsocket, RI, meets International Organization for Standardization (ISO) standard 9001.
