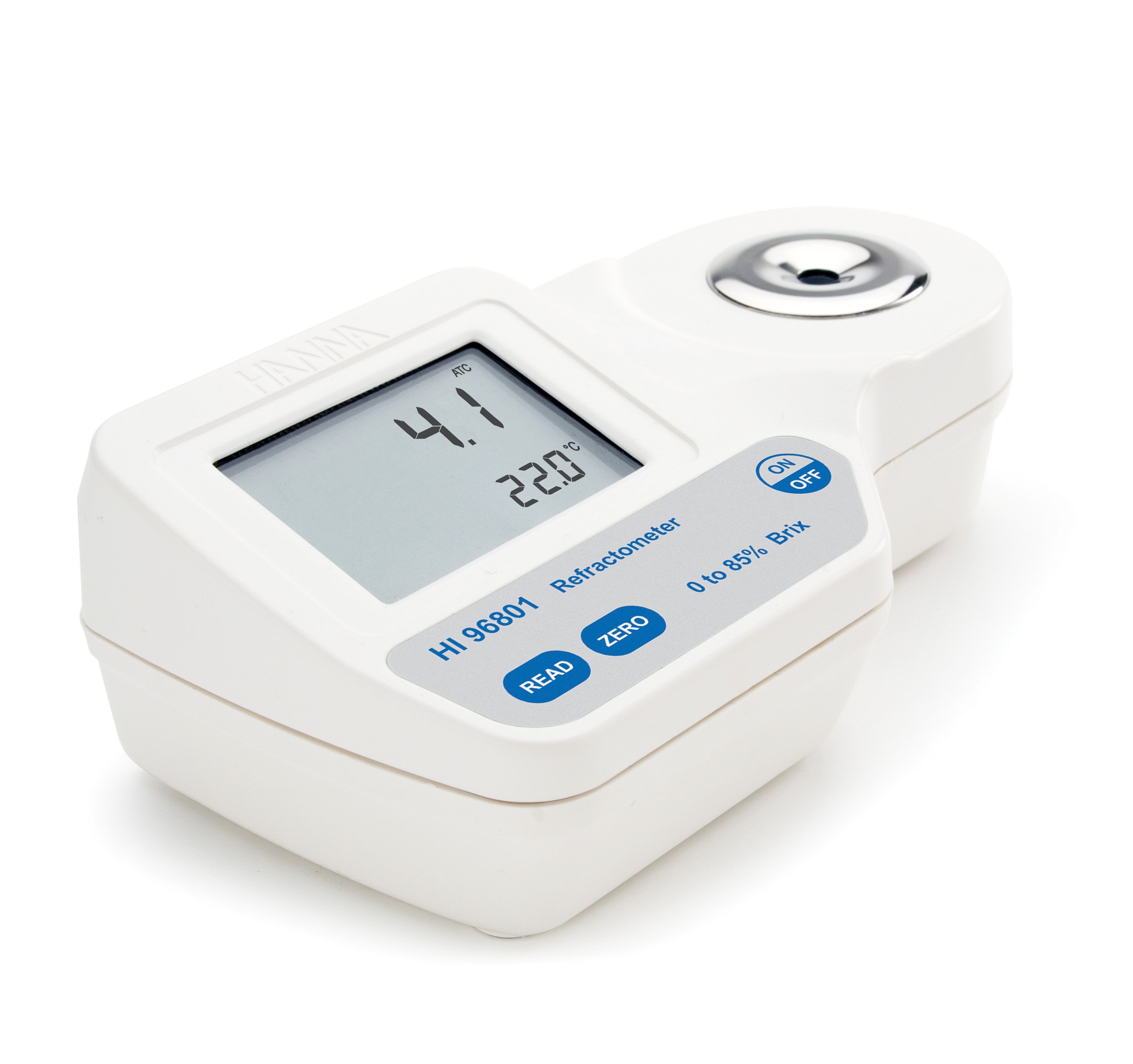

Hanna Instruments HI 96801 Digital Refractometer, 0-85% Brix Range, For Sugar Analysis

Be the first to review this item

ASIN B002NX0WHI

Specifications for this item
Number of Items
1
Inside Depth
19.2  inches
Measurement Type
Brix , Temperature
Part Number
HI 96801
Item Weight
0.93 pounds
Brand Name
Hanna Instruments
UNSPSC Code
41115312

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Calibrated using a few drops of distilled or deionized water, eliminating need for additional calibration solutions
  • Sugar content can be measured utilizing only two metric drops of sample substance
  • Results displayed within several seconds for quick results
  • Automatic temperature Compensation (ATC) eliminates need for extra calculations
  • Large LCD screen for readability

Package Details

Shipping Weight: 1.3 pounds
Package Size: 10.3 x 5 x 4.8 inches

Product Description

The Hanna Instruments HI 96801 is a portable, waterproof meter that measures the refractive index of samples in order to display sugar content in a substance, displaying results within seconds.

To take a reading, the sample well must be calibrated with distilled or deionized water, followed by a few drops of the sample liquid. A dual-level LCD screen displays the measurement and temperature within several seconds. The meter converts the refractive index of the sample to sucrose concentration in units of percent by weight (%Brix, also referred to as degrees Brix).

The single 9V battery-operated device has Automatic Temperature Compensation (ATC), and automatically powers off after three minutes of non-use. The meter has a range of 0 to 85%Brix/0 to 80 degrees C (32 to 176 degrees F) with accuracy + or - 0.2 %Brix / + or - 0.3 degrees C (+ or -0.5 degrees F) and a resolution of 0.1 %Brix/0.1 degrees C (0.1 degrees F). The meter uses the methodology from the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Its dimensions are 19.2(W) x 10.2(D) x 6.7 (H) cm, and it weighs 420 g.

Refractometers measure refractive index, which is the optical characteristic of a substance and the number of dissolved particles in it. Refractive index is the ratio of the speed of light in empty space to the speed of light in the substance. Refractometers are often used in the beverage making process to determine sugar content.

Hanna Instruments manufactures a wide variety of analytical instrumentation, including pH meters, multi-parameter meters, electrodes, chemical reagents and buffer solutions. Founded in 1978, Hanna is headquartered in Woonsocket, RI, with subsidiaries in 32 countries. Hanna Instruments holds many firsts in the field of analytical instrumentation, including a pH electrode with a built-in temperature sensor, an electronic pocket-sized pH tester, and a replaceable electrode pH pocket tester. To ensure the quality of its products, Hanna is a vertically integrated manufacturer and does not subcontract any part of its manufacturing.

What’s in the Box?

  • One 9V battery
  • Instruction manual
