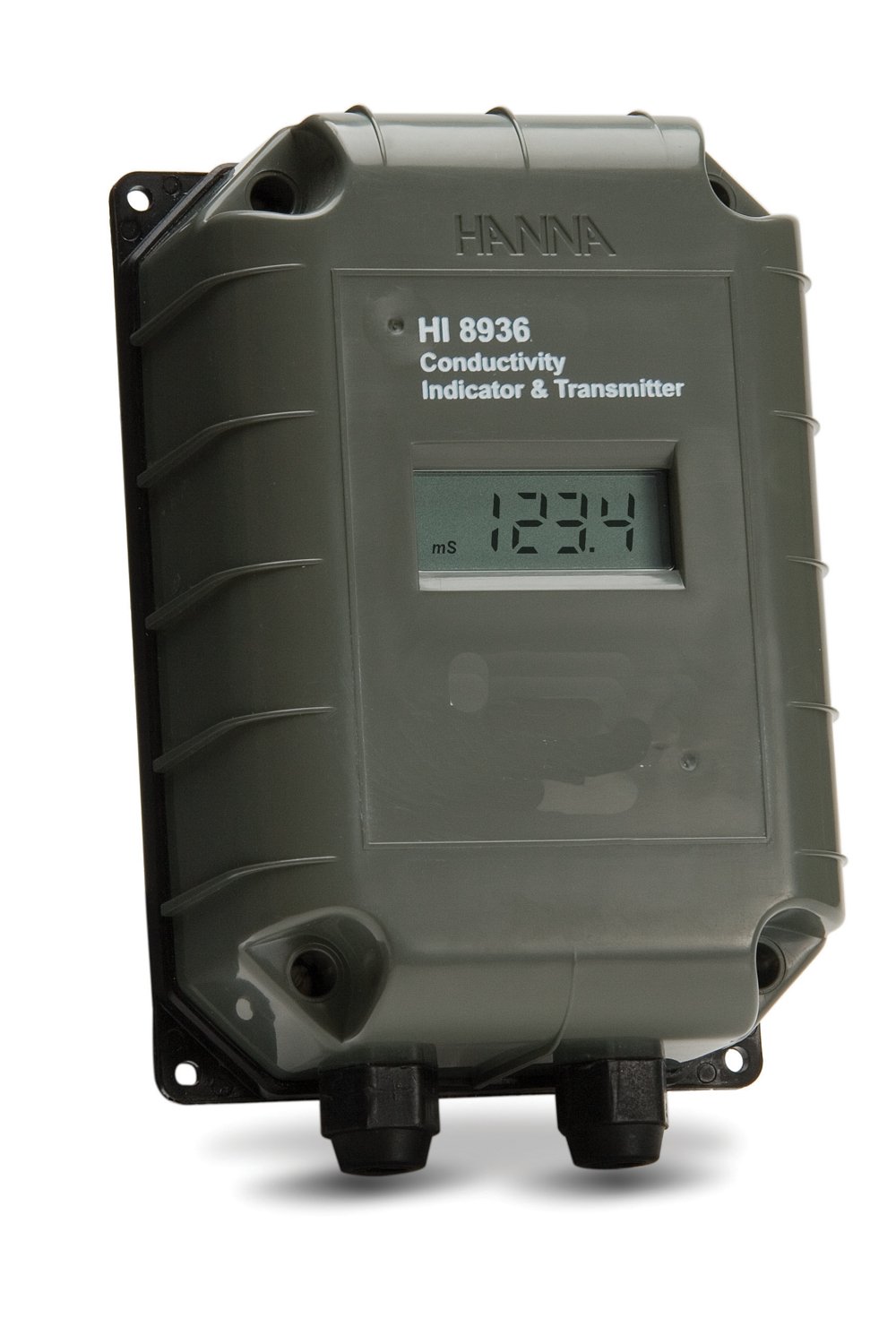

Hanna Instruments HI 8936CLN Conductivity Transmitter with LCD, 0 to 1,999 microsiemens/cm, 1 microsiemens/cm Resolution

Be the first to review this item

ASIN B0085WZ758

Specifications for this item
Number of Items
1
Measurement Type
Electrical Conductivity
Part Number
HI8936CLN
Brand Name
Hanna Instruments
UNSPSC Code
41115609
Display
LCD

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 1 day 4 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Conductivity transmitter attaches directly to an inline four-ring probe and a controller for constant offsite monitoring of conductivity
  • For use with the HI 7635, HI 7638, or HI 3001 conductivity probe and an HI 8931 controller (sold separately)
  • LCD screen displays measurement values for ease of calibration, process monitoring, and verification
  • Direct connection to transmitter probe provides a positive electrical connection to eliminate signal loss over long distances
  • Automatic temperature compensation (ATC) is performed with circuitry in the transmitter and a built-in temperature sensor on the probe

Package Details

Shipping Weight: 2 pounds
Package Size: 7.6 x 7.3 x 5.2 inches

Product Description

The Hanna Instruments HI 8936CLN conductivity transmitter with LCD screen is designed for use with the HI 7635, HI 7638, or HI 3001 platinum conductivity potentiometric probe and an HI 8931 controller (all sold separately), for constant offsite monitoring of conductivity. An LCD screen displays measurement values for ease of calibration, process monitoring, and verification. Direct connection of the transmitter to the probe provides a positive electrical connection that eliminates signal loss over long distances. Circuitry in the transmitter and a built-in temperature sensor on the probe provide automatic temperature compensation (ATC). The transmitter has a range of 0 to 1,999 microsiemens/cm, and can be wall-mounted at any convenient location close to the measurement site. The transmitter requires external power to the 4 to 20mA current loop. Protecting the transmitter inside a case is recommended to minimize thermal drifts, particularly for outdoor measurements.

Specifications
Conductivity (EC) range0 to 1999μS/cm
Accuracy range at 20 degrees C/68 degrees F+ or - 2% of full scale (excluding probe error)
CalibrationManual, 2 point, with offset and slope trimmers
Conductivity probeHI 7635 for in-line applications (not included)
Recorder output4 to 20mA, not isolated, max 500 ohm
Temperature compensationFixed or automatic, 0 to 50 degrees C (32 to 122 degrees F) with Β=2%/degrees C
Protection ratingIP 65
Environment0 to 50 degrees C/32 to 122 degrees F
Weight1kg/2.2lb.
Dimensions165 x 110 x 71mm/6.5 x 4.3 x 2.8 inches (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Conductivity meters, also known as electrical conductivity (EC) meters, measure the ability of a solution or material to conduct an electrical current. This measurement helps determine if the solution is, for example, contaminated or contains too much saline. In general, pure solutions, such as distilled water, have low conductivity. More saline- or nutrient-rich solutions, such as seawater or fertilizers, have high conductivity. Conductivity measurements are often used with total dissolved solids (TDS) measurements, which are typically expressed in ppm (parts per million). TDS consist of dissolved minerals and salts. To determine the amount of TDS, conductivity is measured, and the result is converted to a TDS measurement. Different meters provide results for conductivity, TDS, or both, and the application determines meter selection. Conductivity meters are used in research laboratories and a variety of industries, such as water-quality testing, waste-water treatment, hydroponics, agriculture, aquaculture, and cosmetics manufacturing.

Hanna Instruments manufactures analytical instrumentation and supplies, including pH meters, electrodes, chemical reagents, and buffer solutions. The company, founded in 1978 and headquartered in Woonsocket, RI, meets International Organization for Standardization (ISO) standard 9001.

What's in the Box?

  • HI 8936CLN conductivity transmitter
  • Instructions
