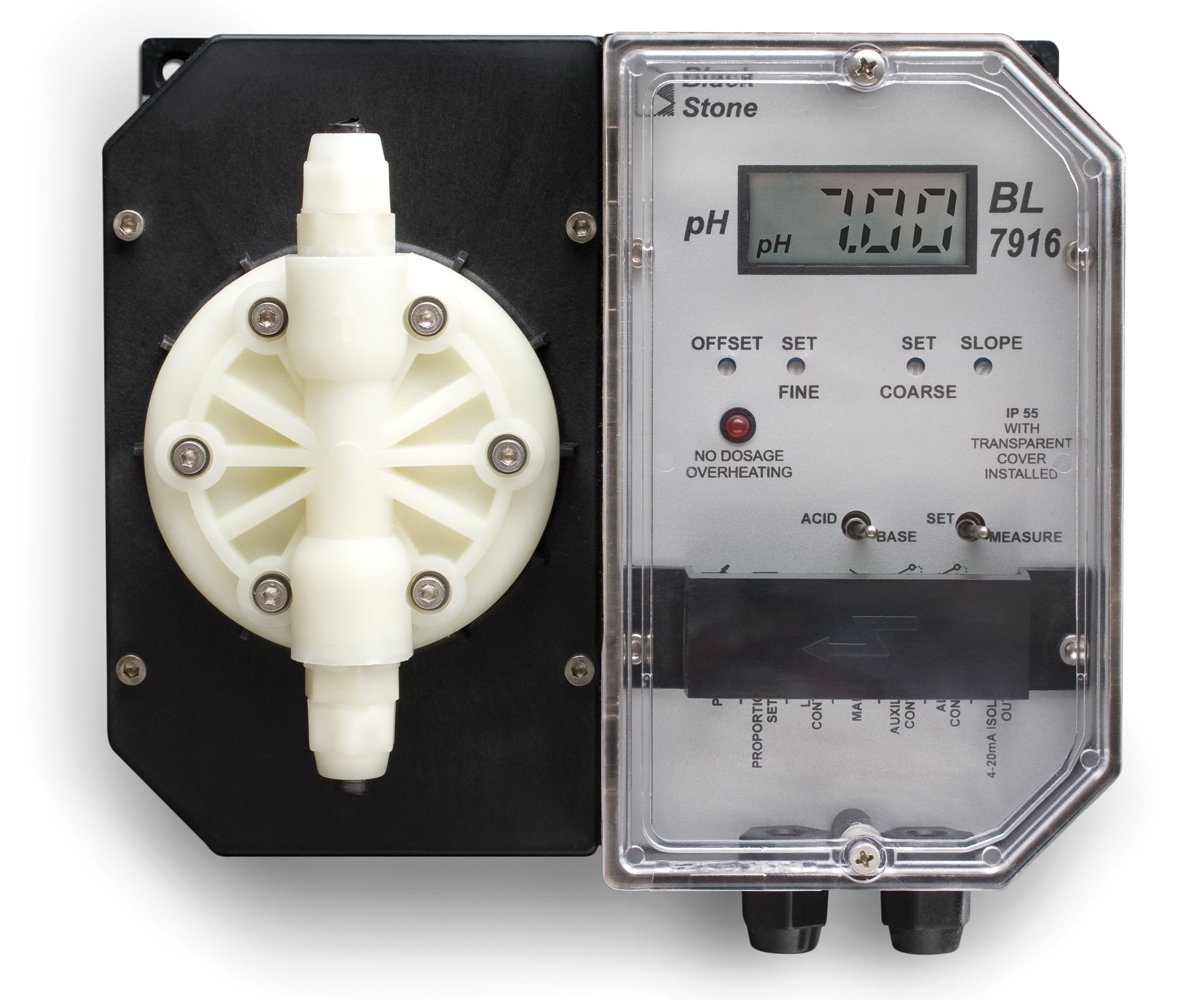

Hanna Instruments BL7916-1 pH Controller and Chemical Dosing Pump, 115V

Be the first to review this item

ASIN B0085WQ0HW

Specifications for this item
Number of Items
1
Part Number
BL7916-1
Item Weight
11 pounds
Brand Name
Hanna Instruments
UNSPSC Code
40151505

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • pH Controller and dosing pump in one compact unit
  • +/-0.01 pH accuracy with unbeatable performance
  • Isolated 4 to 20 mA recorder output
  • Alarm contact is activated whenever the pH value varies more than 2 pH units from the set point
  • Measures 8-11/16" length by 5-19/32" width by 7-3/32" height

Package Details

Shipping Weight: 7.75 pounds
Package Size: 11 x 10.9 x 9.4 inches

Product Description

The controller/pump is enclosed in a modular housing for maximum protection. The pump utilizes a one-piece polypropylene, injection-molded housing. Since there are no joints or screws holding different sections of the housing together, the case is extremely rugged and sturdy. This series of instruments will mount easily in your plant using a minimum of wall space. The controls and pump head are located in the front to allow easy access. pH Controller and dosing pump in one compact unit. +/-0.01 pH accuracy with unbeatable performance. Isolated 4 to 20 mA recorder output. Proportional dosing slows the pump down when the measured pH level approaches the set valve, which ensures precise dosage and avoids costly waste of chemicals due to overdosage. Alarm contact is activated whenever the pH value varies more than 2 pH units from the set point. Auxiliary contacts allow the user to attach a mixer or priming pump that is activated only when the pump is dosing. PVDF, FPM/FKM and PTFE materials are used for all parts that come into contact with liquid. Range: 0.00 to 14.00 pH, resolution: 0.01 pH, accuracy: +/-0.01 pH. Flow rate: 13.3, 11.7, 10.1, 9.0, 7.8 (LPH). Input impedance 10(12) Ohm. Dosage: proportional, acid or base, user selectable. Calibration: offset: +/-1 pH with trimmer; slope: 85 to 115 percent with trimmer. Recorder output: 4-20 mA (isolated). Dosing contact: 1 isolated contact, 2A, maximum 240V, resistive load, 1,000,000 strokes. Alarm contact 1 isolated contact, 2A, maximum 240V, resistive load, 1,000,000 strokes. Power supply: 115V +/-15 percent; 50/60Hz (40W). Environment 0 to 50 degree C; RH max 95 percent non-condensing. Measures 8-11/16" length x 5-19/32" width x 7-3/32" height.
