Hanna Instruments HI 98188-01 Industrial Grade EC/Resistivity/TDS/NaCl Portable Meter

Be the first to review this item

ASIN B002NX0WFU

Specifications for this item
Number of Items
1
Inside Depth
7.5  inches
Measurement Type
pH , Temperature
Part Number
HI 98188-01
Item Weight
1.16 pounds
Brand Name
Hanna Instruments
UNSPSC Code
42181904
Style Name
Portable

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Range from -20 to 120 degrees C (-4 to 248 degrees F) with a temperature sensor inside the EC electrode
  • Up to five-point EC calibration using seven memorized standards
  • Automatic Temperature Compensation (ATC) eliminates need for extra calculations
  • Stores up to 1000 readings
  • USP standard compliance makes the instrument suitable for pure water determination

Package Details

Shipping Weight: 8.4 pounds
Package Size: 18.8 x 14.9 x 5.3 inches

Product Description

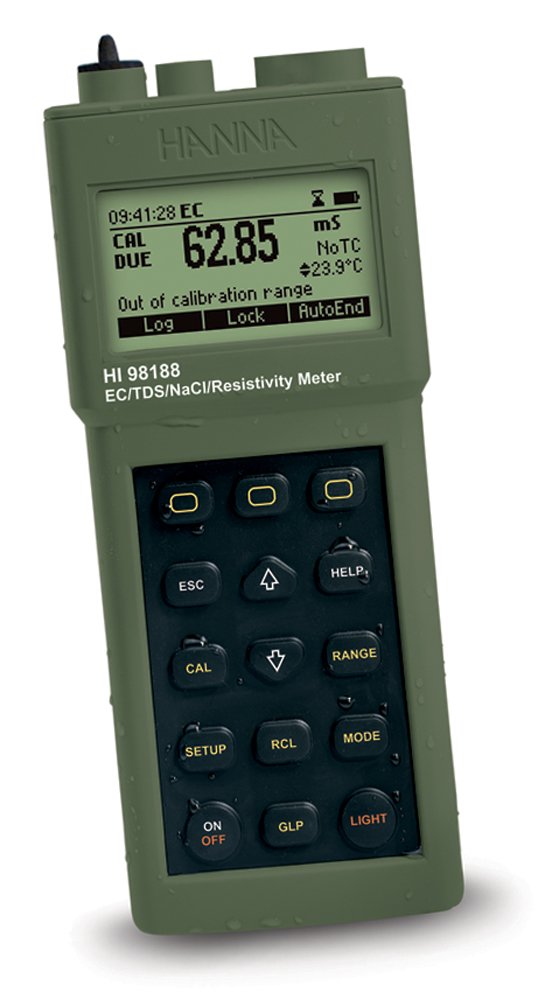

The HI 98188-01 is a water-resistant, portable conductivity (EC) meter for lab or field use. USP standard compliance makes the instrument suitable for pure water determination. It can also measure temperature, resistivity, Total Dissolved Solids (TDS), and salinity in three different modes. The meter features a series of diagnostic functions including messages on a graphic, LCD screen for easy calibration, an alert when the electrode needs cleaning, and a user-selectable “outside calibration range” warning when measurements are outside periphery, as well as “calibration time out” when a new calibration is necessary.

Choose from seven memorized standards (0.00, 84.0, 1.413, 5.00, 12.88, 80.0, 111.8 mS/cm) and obtain up to a five-point conductivity calibration. The meter includes linear or non-linear, user-selectable Automatic Temperature Compensation (ATC), and measures an extended temperature range from -20 to 120 degrees C (-4 to 248 degrees F) with a temperature sensor inside the EC electrode. The meter includes a Good Laboratory Practice (GLP) function, to view last calibration data for EC and NaCl, as well as auto hold, to freeze the first stable reading on the LCD. The meter’s memory can store up to 1000 readings and a USB connection enables PC interface.

The device operates on four 1.2Vdc 1300mAh Accumulators. Dimensions are 226.5 x 95 x 52 mm/8.9” x 3.75” x 2’’ (H x W x D), and weighs 525 g.

Electrical conductivity meters measure the electrical conductivity in a solution. They are commonly used in hydroponics, aquaculture, and freshwater systems to monitor the amount of nutrients, salts, or impurities in the water. USP compliance verifies the quality, purity, and potency of dietary supplement finished products, dietary supplement ingredients, and pharmaceutical ingredients.

Hanna Instruments manufactures analytical instrumentation and supplies, including pH meters, electrodes, chemical reagents, and buffer solutions. The company, founded in 1978 and headquartered in Woonsocket, RI, meets International Organization for Standardization (ISO) 9001 standards.

What’s in the Box?

  • HI 76313 4-ring probe with temperature sensor and 4-m cable
  • 100 mL plastic beaker
  • HI 710042 inductive recharger with power adapter
  • HI 7031M 1413 mS/cm and HI 7035M calibration standards (230 ml each)
  • pH 4.01 and 7.01 Buffer Solutions (20 mL each)
  • Batteries
  • Instructions
  • Rugged carrying case
