Hanna Instruments HI 9812-5N Waterproof Portable pH/EC/TDS Meter

Be the first to review this item

ASIN B003UNK3KG

Specifications for this item
Number of Items
1
Measurement Type
pH , Oxidation Reduction Potential (ORP) , Temperature
Part Number
HI 9812-5N
Brand Name
Hanna Instruments
Style Name
Portable
UNSPSC Code
42181904

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 17 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Waterproof portable pH, electro-conductivity (EC), total dissolved solids (TDS), and temperature meter used for hydroponics, greenhouses, farming, and ground water applications
  • Automatic Temperature Compensation (ATC) for accurate readings in fluctuating temperatures and manual calibration
  • Multilevel LCD screen simultaneously shows the current measurement, the current temperature, and has onscreen tutorial for calibration
  • Combination pre-amplified pH, electro-conductivity (EC), and total dissolved solids (TDS) probe with internal temperature sensor, 8-pin Deutsches Institut für Normung (DIN) connector, and fiber junction with gel electrolyte for longer electrode life and reduced contamination in harsh environments
  • Battery error prevention system alerts when battery power is low and displays battery percentage on startup

Package Details

Shipping Weight: 1.85 pounds
Package Size: 9.2 x 6.6 x 2.6 inches

Product Description

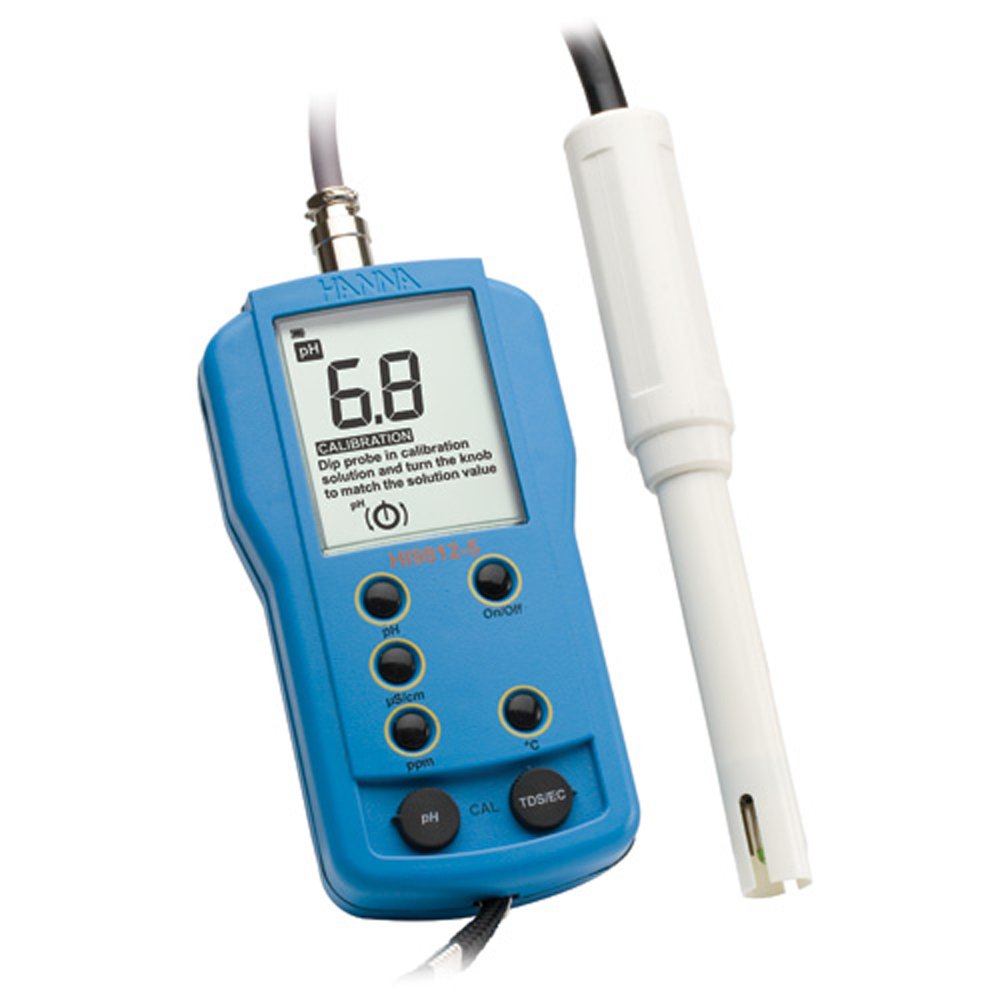

The Hanna Instruments HI 9812-5 is a waterproof portable pH, electro-conductivity (EC), total dissolved solids (TDS), and temperature meter, has Automatic Temperature Compensation (ATC) for pH and conductivity, manual one-point calibration using dials, an LCD screen with onscreen tutorial, a combination probe with fiber junction and gel electrolyte, and a battery error prevention system. A pH/TDS/temperature monitor is used by researchers and hobbyists to measure nutrient parameters in hydroponics, greenhouses, and horticultural applications. The multilevel LCD screen displays the measurement reading, a calibration tutorial, low-battery alerts, and battery percentage on startup. Calibration dials are located on the front panel. The combination pre-amplified pH, EC, and TDS probe has an internal temperature sensor, 8-pin Deutsches Institut für Normung (DIN) connector, and fiber junction with gel electrolyte for longer electrode life and reduced contamination in harsh environments such as fertilizer solutions. The combination probe reduces the number of required instruments because no probe changes are required. The temperature sensor provides ATC from 0 to 50 degrees C.

The meter works with an included 9V battery for up to 150 hours of continuous operation. An auto power-off feature turns the meter off after eight minutes of inactivity to extend battery life. The operating temperature is from 0 to 50 degrees C (32 to 122 degrees F) with a relative humidity of 100 percent. The dimensions are 145 x 80 x 36mm/5.7 x 3.1 x 1.4 inches (H x W x D). (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) The meter weighs 230g/8.1oz. The HI 9812-5 portable meter also comes with calibration solution sachets, electrode cleaning solution sachets, instructions, and a carrying case.

Specifications

pH range0.0 to 14.0
EC range0 to 1990 μS/cm
TDS rangeTDS 0 to 1990 ppm
Temperature range0 to 60 degrees C
pH resolution.1
EC resolution10 μS/cm
TDS resolution10mg/L
Temperature resolution1 degrees C
pH accuracy+ or - 0.1
EC accuracy+ or – 2 percent full scale (F.S.)
TDS accuracy+ or – 2 percent F.S.
Temperature accuracy+ or – 1 degree C

A pH meter, also called a sensor or tester, is a device used to measure the acidity or alkalinity of a substance. A pH meter has either a portable or a benchtop body. Many portable meters are handheld devices. Some testers have an internal sensor, and may have a tip and body that fit inside of a container for measurement. A meter is commonly used in many different environments from laboratories to field research and manufacturing facilities. Researchers, manufacturers, and hobbyists use a pH meter in aquaculture, agricultural, wine-making, and water-testing, and for scientific applications. Some pH meters may measure additional parameters such as dissolved oxygen (DO), conductivity (also called electro-conductivity or EC), temperature, total dissolved solids (TDS), salinity, resistivity, or oxygen reduction potential (ORP)/mV.

Hanna Instruments manufactures analytical instrumentation and supplies, including pH meters, electrodes, chemical reagents, and buffer solutions. The company, founded in 1978 and headquartered in Woonsocket, RI, meets International Organization for Standardization (ISO) standard 9001.

What’s in the Box?
  • HI 9812-5 portable meter
  • HI 1285-5 multiparameter probe
  • HI 70007 pH 7.01 buffer solution sachet
  • HI 70032 1382 ppm (mg/L) calibration solution sachet
  • HI 70031 1413 μS/cm calibration solution sachet
  • HI 700661 electrode cleaning solution sachets (2)
  • 9V battery
  • Carrying case
  • Instructions
