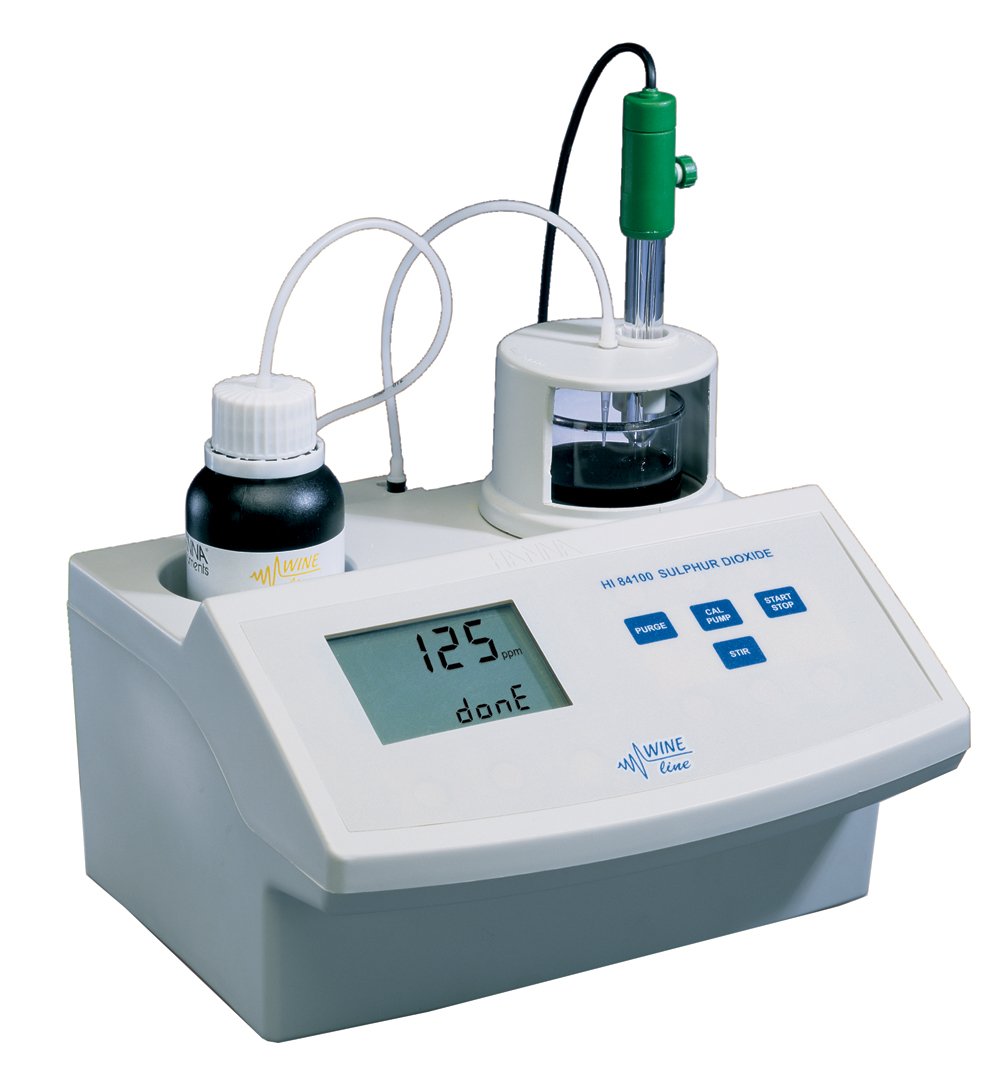

Hanna Instruments HI 84100-01 Mini Titrator for Free and Total Sulfur Dioxide Measurements in Wine, 50mL Capacity, 115V, +/-1ppm Accuracy, 1 ppm Resolution

Be the first to review this item


Specifications for this item
Number of Items
Part Number
HI 84100-01
Size Name
0 to 400 ppm of sulfur dioxide
Brand Name
Hanna Instruments

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Easy to use
  • Economical
  • Automatic Titrator
  • Supplied with everything you need to preform 20 titrations
  • HI 84100's interface is clean and simple.

Package Details

Shipping Weight: 10 pounds
Package Size: 14.8 x 13.6 x 10.4 inches

Product Description

The HI 84100 is a microprocessor-based titration system for measuring total or free sulfur dioxide in wines. In the wine making process, sulfur dioxide is added to the wine to inhibit bacteria and yeast, as well as to protect the wine color. The HI 84100 titrator system analizes the free and total sulfur dioxide to ensure proper levels during wine making.

The titration system includes an HI 3148B/50 glass body oxidation reduction potential (ORP) probe with BNC connector 50 cm (1.6’) cable, a micro-processor based titrator with a peristaltic pump for ensuring high dosing repeatability, and accessories for performing titrations. The titrator uses an algorithm to analyze the shape of the electrode response to determine when the titration reaction is complete. As the results are displayed in ppm units on the LCD, the titrator prepares itself for the next titration.

Range is 0 to 400 ppm of sulfur dioxide, + or – 5% of reading or 1 ppm, with resolution 1 ppm. Pump dosing is 0.5 mL/min and the sample volume must be 50 mL. The titrator uses a ripper titrimetric method, and an equivelance point redox tritation principle. Power source is 115V/230 VAC, 50-60 Hz; 10VA, and the device operates from 0 to 50 degrees C (32 to 122 degrees F). Dimensions are 208 x 214 x 163 mm (8.2 x 8.4 x 6.4”) (with beaker), and weight is 2200 g (77.6 oz.).

Hanna Instruments manufactures a wide variety of analytical instrumentation, including pH meters, multi-parameter meters, electrodes, chemical reagents, and buffer solutions. Founded in 1978, Hanna is headquartered in Woonsocket, RI, with subsidiaries in 32 countries. Hanna Instruments holds many firsts in the field of analytical instrumentation, including a pH electrode with a built-in temperature sensor, an electronic pocket-sized pH tester, and a replaceable electrode pH pocket tester. To ensure the quality of its products, Hanna is a vertically integrated manufacturer and does not subcontract any part of its manufacturing.

What’s in the Box?

  • Reagents set for 20 titrations
  • Scissors
  • Two 50 mL beakers
  • Two 20 mL beakers
  • Tubes set with cap
  • HI 3148B/50 ORP probe
  • Stir bar
  • Power cable
  • One 30 mL bottle of Refill Solution
  • One 1 mL syringe
  • Two sachets of cleaning solution for wine deposits
  • Two sachets of cleaning solution for wine stains
  • Instruction manual
