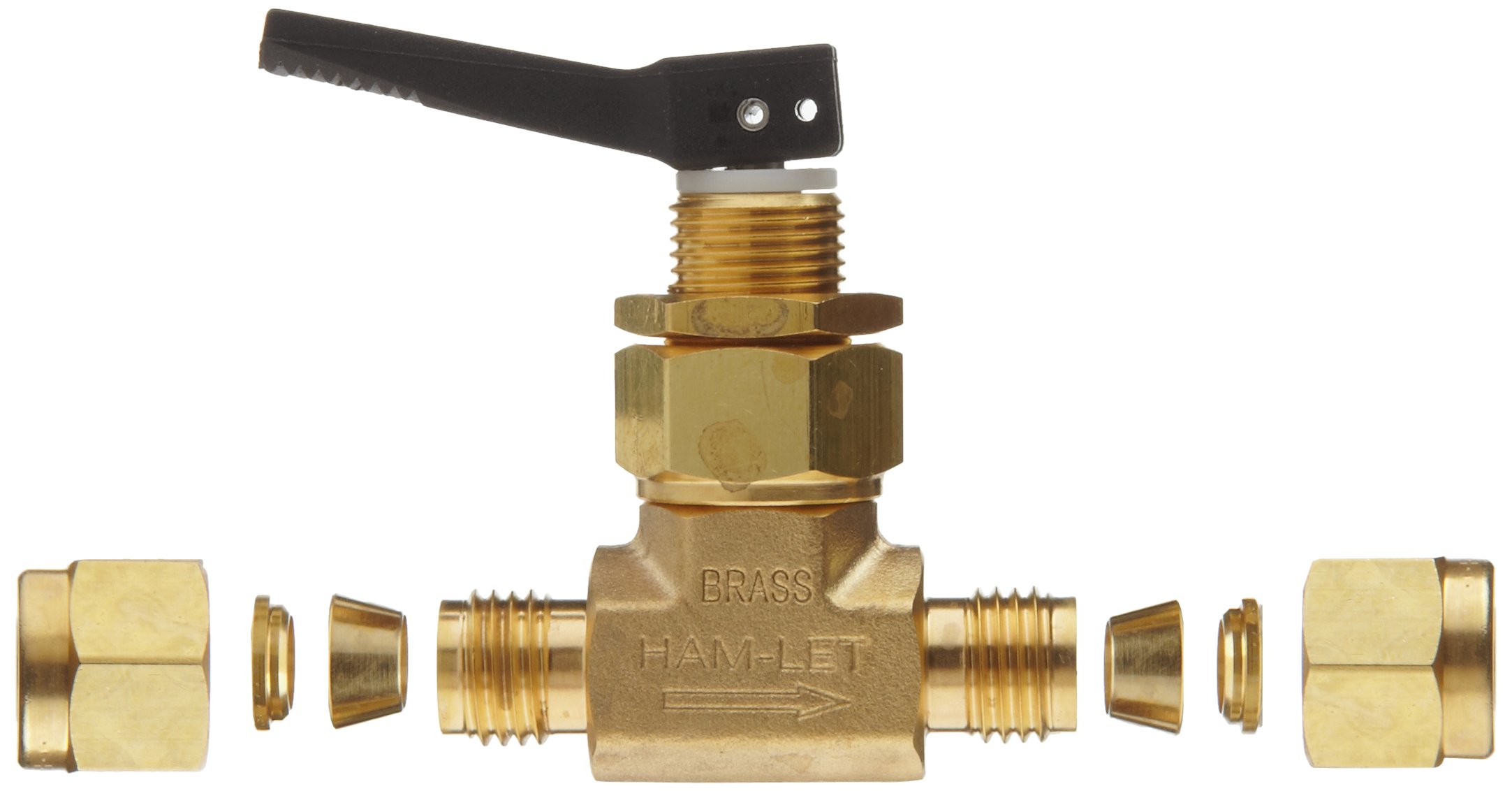

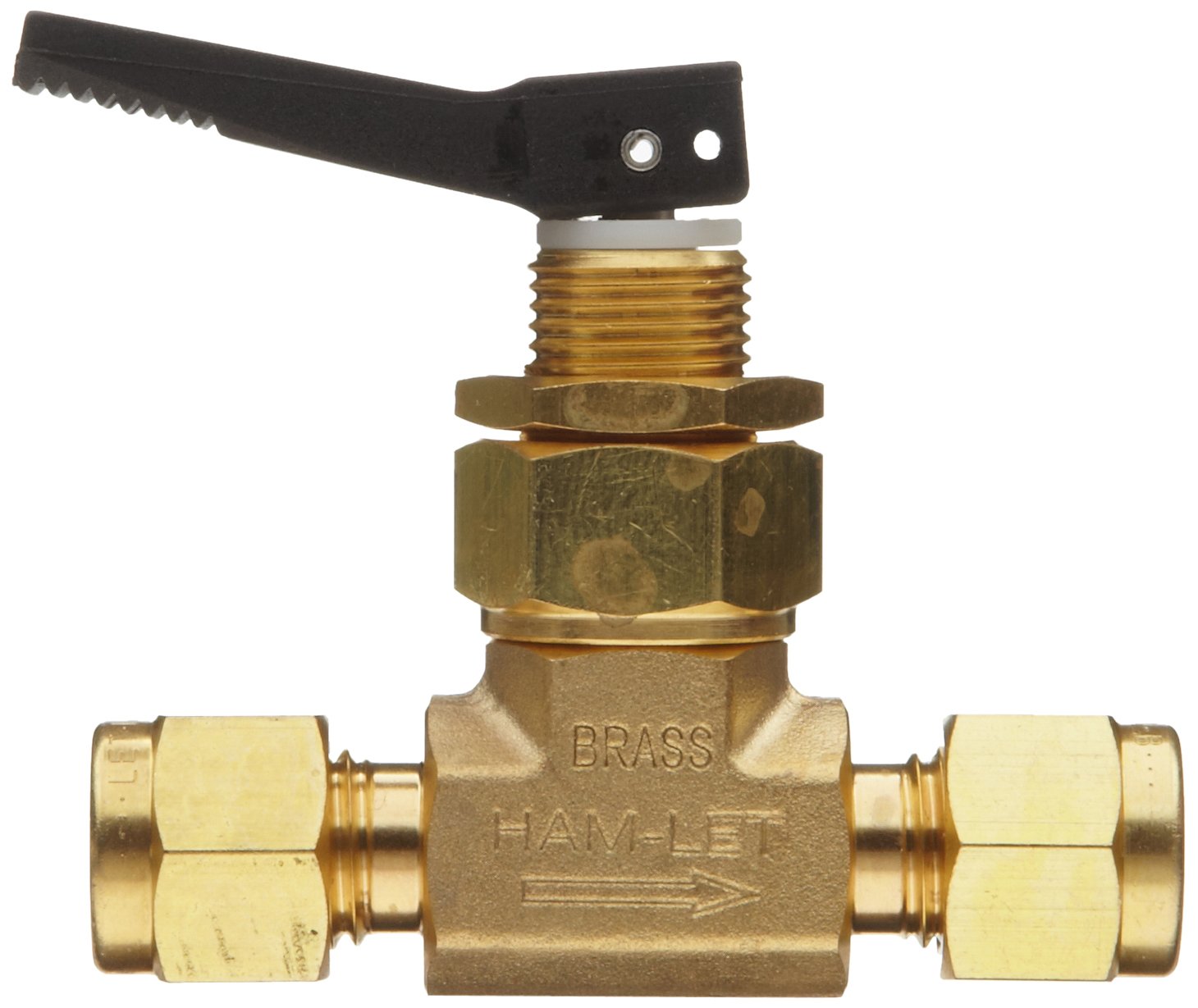

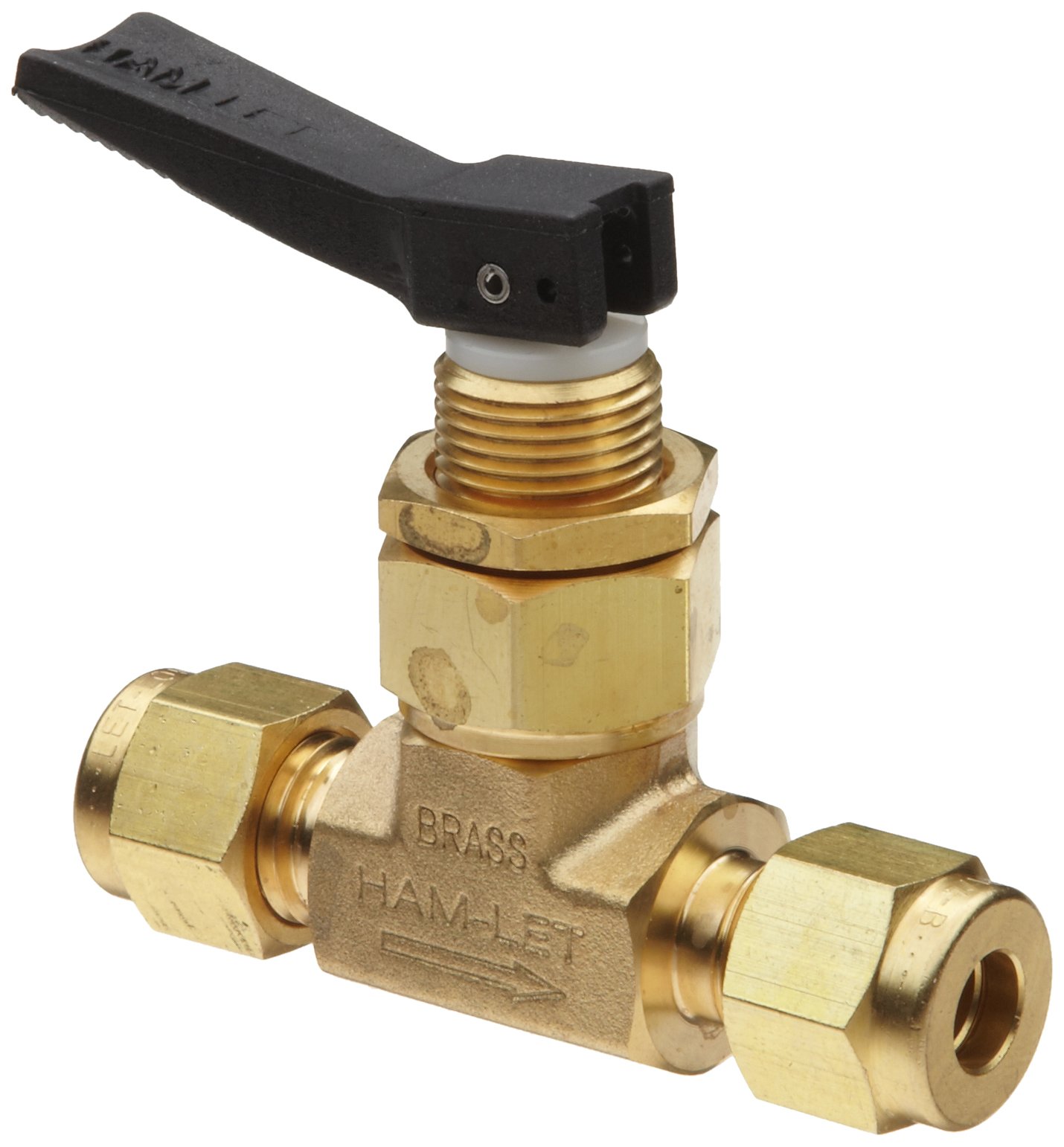

Ham-Let H1200 Series Brass Toggle Valve, Inline, 1/4" Let-Lok Fitting

Be the first to review this item


Specifications for this item
Item Shape
Seat Material Type
Operation Mode
Spring Return
Part Number
Brand Name
Style Name
Number of Items
Material Type
Size Name
Manufacturer Series Number
H1200 Series
Ball Material Type
Upper Temperature Range
-20  Degrees Fahrenheit
Maximum Pressure
300  PSI
Connector Type
Let-Lok Compression
System of Measurement
Overall Length
2.26  inches
LowerTemperature Range
-200  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 14 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Compact Rugged Design
  • Brass Construction
  • Panel Mountable
  • Quick On/Off Service
  • MAWP 300 psig at 20°C (70°F)

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3.2 x 2.3 x 1.9 inches

Product Description

The H-1200 Series standard toggle valve is a compact design for normally closed and quick on/off service. Moving the handle 90 degrees upwards opens the valve to full flow and stops it firmly in the open position. Shifting the handle position downwards shuts off the valve by spring return. The PTFE soft seat at the tip of the stem provides a positive repetitive seal.
