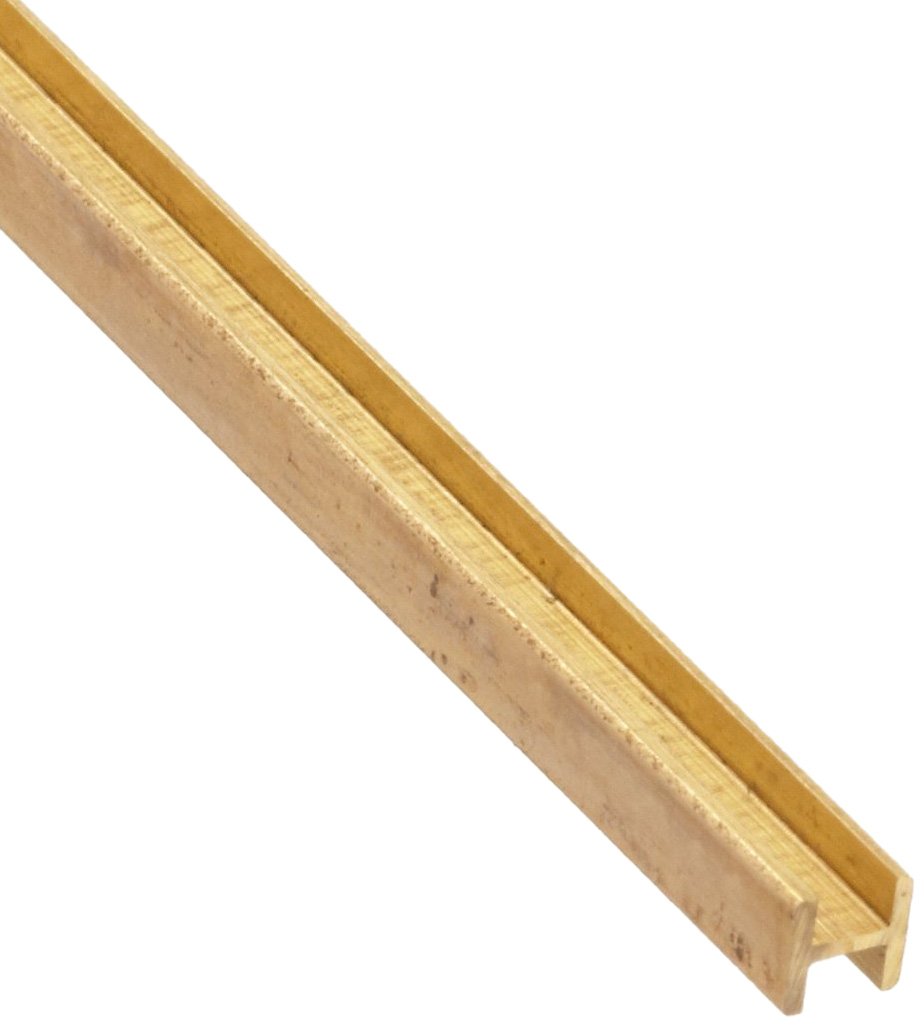

Brass 260 I-Beam, Half Hard Temper, Squared Corners, ASTM-B16
Be the first to review this item
ASIN B000FMYIZQ
Product Specifications
- Height
- 5/32 inches
- Length
- 12 inches
- Part Number
- BHC-025-12-03
- Pkg Qty
- 3
- Thickness of Base
- 0.024 inches
- Thickness of Middle Plate
- 0.024 inches
- Width of Base
- 5/32 inches
Specification for this product family (See all products)
- Brand Name
- Small Parts
- Item Shape
- I-Beam
- Material Type
- Brass 260
- Exterior Finish
- Unfinished (Mill)
- Color Name
- Copper
- Hardness
- 70B
- Temper
- Half Hard
- System of Measurement
- Inch
- Tolerance Held
- Precision
- Specification Met
- ASTM-B16
- Tensile Strength Max
- 62000 Pounds Per Square Inch
In Stock (7)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 25? Order in-stock items in the next 5 hours 45 minutes and choose One-Day Shipping at checkout.
Brass 260 I-Beam, Half Hard, Squared Corners, ASTM-B16, 0.024" Thick, 0.024" Wall Thickness, 5/32" Width, 5/32" Height, 12" Length
Key Features
- Precision Milled H Beams
- Milled from 1/2 - 3/4 hard
- C260 Brass
- Malleable
- Easily Soldered and Brazed
Package Details
Shipping Weight: 0.1 pounds
Product Description
Precision Milled Brass C260 Profiles are 70 percent copper and 30 percent zinc. This is one of the most widely used of the copper-zinc alloys; it is malleable and ductile; has excellent cold-working; poor hot working and poor machining properties; develops high tensile strength with cold-working. Rated excellent for soft-soldering; good for silver alloy brazing or oxyacetylene welding and fair for resistance of carbon arc welding. Used for miniature profiles, drawn cartridges, tubes, eyelet machine items and snap fasteners. 1/2 to 3/4 Hard
