Grant Instruments PCV-3000 USA Bio Multi-spin Compact Benchtop Centrifuge/Vortex Mixer, 225mm Width x 115mm Height x 180mm Depth, 1000 to 3500 rpm, 12V DC

Be the first to review this item

ASIN B0090R0HQQ

Specifications for this item
Number of Items
1
Overall Height
115  millimeters
Overall Width
225  millimeters
Part Number
PCV-3000 USA
Brand Name
Grant Instruments
UNSPSC Code
41103903
Display
LCD

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 5 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Variable-speed centrifuge with speeds ranging from 1,000 to 3,500 rpm
  • Comes with two rotors: one for 12 x 1.5mL tubes and one for a combination of 12 x 0.5mL and 12 x 0.2mL tubes
  • Can consecutively spin and mix multiple tubes, and spin and mix runs can be linked in sequences which can be repeated up to 999 times for increased efficiency
  • Centrifuge stops when lid opens for increased safety
  • Suitable for genetic engineering research (PCR diagnostics experiments)

Package Details

Shipping Weight: 5.4 pounds
Package Size: 11.6 x 9.8 x 8.4 inches

Product Description

The Grant Instruments PCV-3000 centrifuge is a variable-speed combined centrifuge and vortex mixer with speeds ranging from 1,000 to 3,500 rpm. This centrifuge comes with two rotors: one for 12 x 1.5mL tubes, and one for a combination of 12 x 0.5mL and 12 x 0.2mL tubes. It is also compatible with additional rotors for tubes and microtitre plates (sold separately). The unit can consecutively spin and mix multiple tubes. Tubes are loaded into the rotor for spinning and then remain in the same position for vortex mixing, saving time and labor. These spin and mix phases can be linked in sequences repeated up to 999 times. The centrifuge stops when the lid is opened for increased safety. This centrifuge is designed for genetic engineering research, such as PCR diagnostics experiments.

This centrifuge is non-refrigerated and does not have temperature control features.

Specifications

Maximum speed3,500 revolutions per minute (rpm), variable
Maximum relative centrifugal force (rcf)800xG
TimerSpin timer: 1 second to 99 minutes with an automatic shut-off; mix timer: 1 to 20 seconds (1 second increments) with an automatic shut-off
Maximum noise level≤55.7dBA
Power100-240V 50/60Hz
MotorStepper
Weight2.5kg
Dimensions125 x 235 x 190mm (H x W x D)
RotorTwo interchangeable fixed angle rotors
Rotor maximum capacity12 x 1.5mL tubes and 12 x 0.5mL + 12 x 0.2mL tubes

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

A centrifuge is used to spin fluids of different densities to separate various parts, commonly blood and DNA samples. Centrifuges are composed of the main body or housing and a spinning rotor. Tubes of cellular material suspended in liquid are inserted into the rotor and spun at various speeds to separate components. Centrifuges are used in medical, industrial, and research laboratories, as well as academic and clinical settings.

Grant Instruments manufactures and designs equipment for sample preparation, scientific analysis, data acquisition, and data analysis. In addition, Grant manufactures sous vide equipment for professional kitchens. Grant Instruments co-owns Biosan and Eltek Ltd. The company, founded in 1952, is headquartered near Cambridge, England.

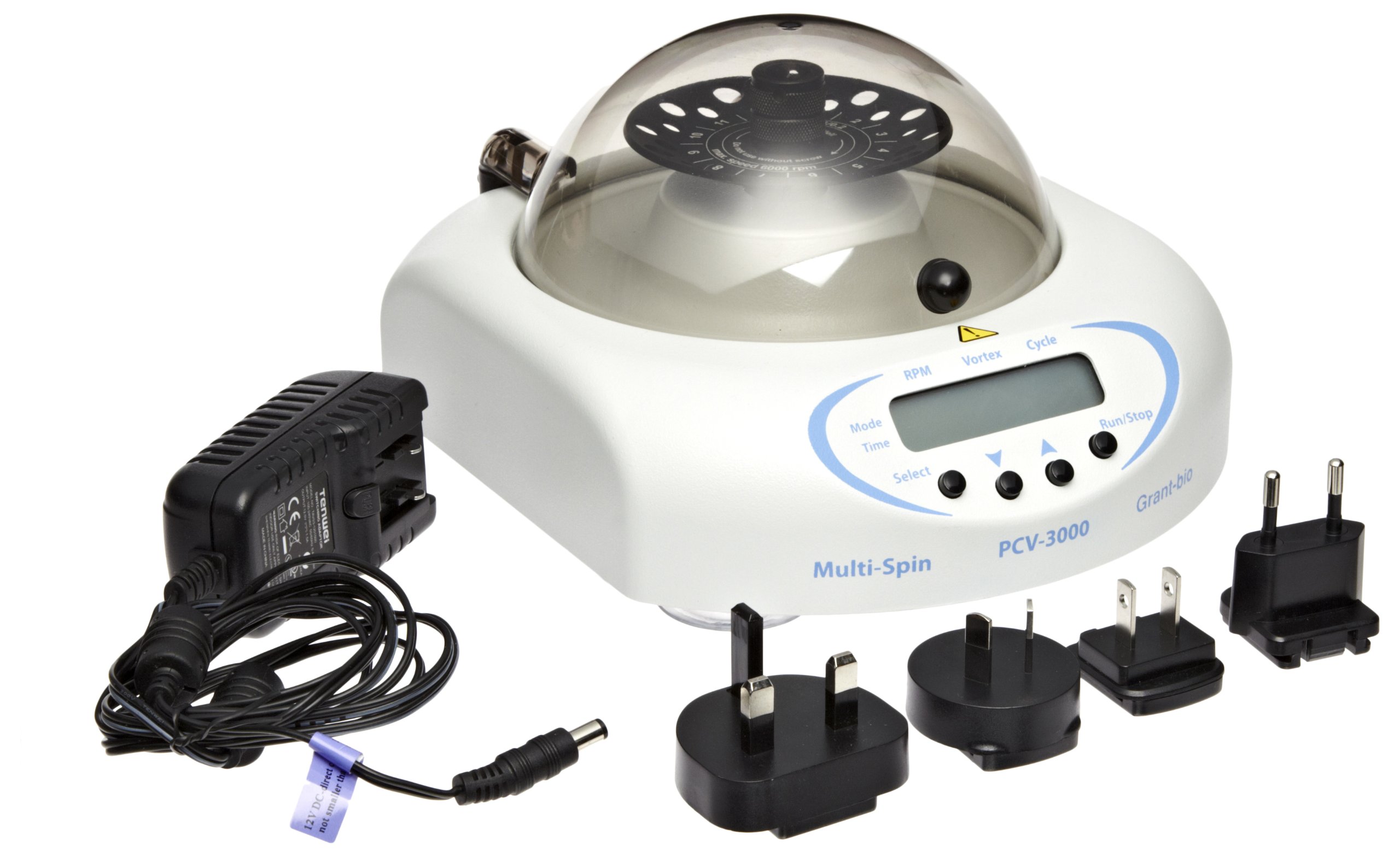

What’s in the Box?
  • Multi-spin PCV-3000 centrifuge/vortexer
  • External power supply
  • Rotor fixation pin
  • Rotor R-15 12 x 1.5mL
  • Rotor R-05-02 12 x 0.5mL plus 12 x 0.2mL
  • Instructions
